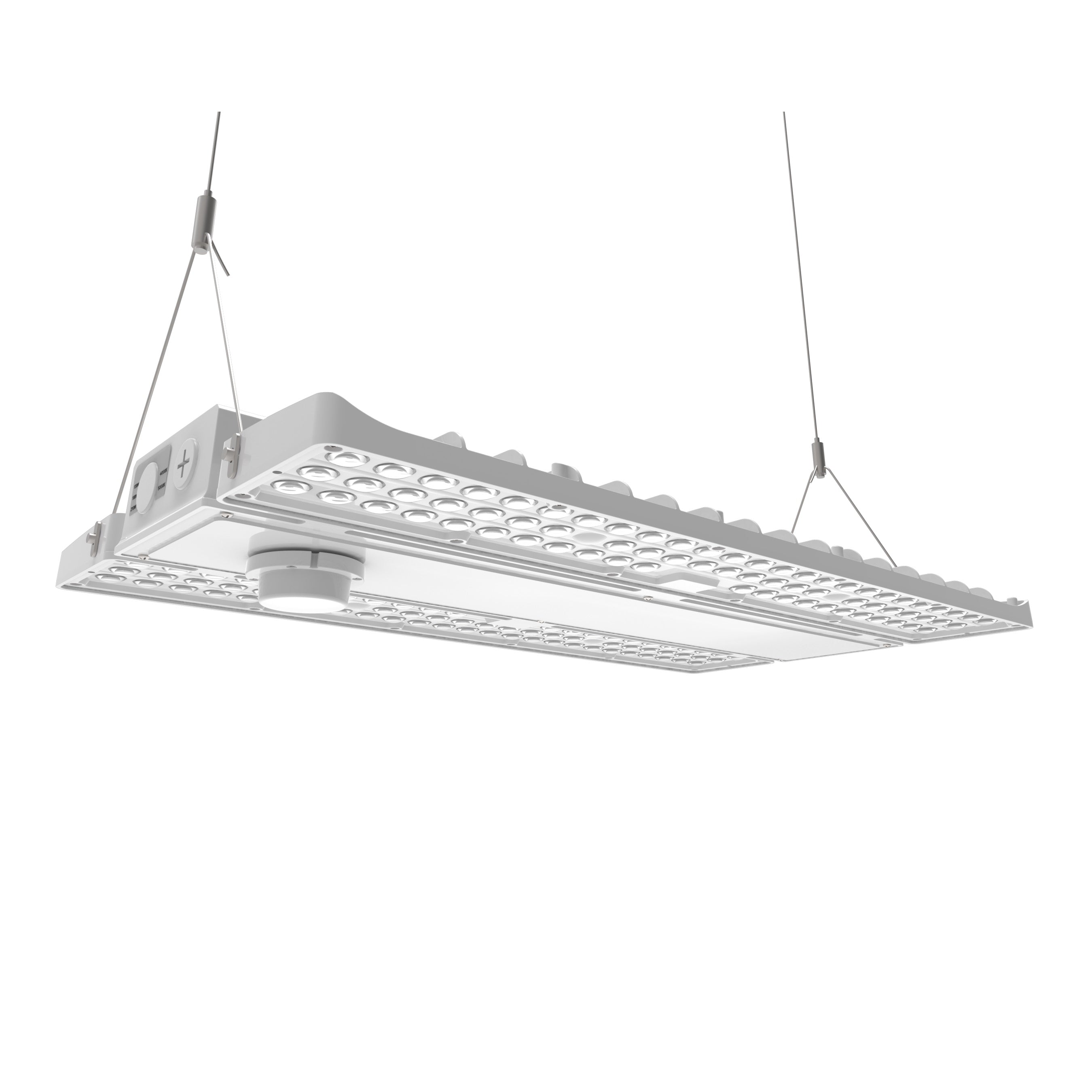

KonLite PAVO Series LED High Bay Lights
Konlite PAVO series LED High Bay Light offers budget-oriented design by utilizing a compact and strong housing while still offering industry leading performance. The compact design also makes handling easier for a quicker installation. The PAVO I bay light offers wattage selectable flexibility, which can be adjusted on field via a 3-step switch located on the side of the fixture.120-277V, 5000K Commercial Bright White.
Equipped with an optical lens instead of an ordinary diffuser, it offers better glare control and higher efficacy. For warehouse application with tall racks, the optional Aisle Optic is an ideal solution to maximize light usage efficiency and greater energy savings.
PAVO I LED Bay Light - 130W/105W/90W - 20,020 lumens - 120-277V - 5000K - 320W Equal
SKU: KPVMW1350KLV|SEARCH CODE: 10-0301
- Dimensions: 14"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- CCT: 5000K Daylight White
- Certificates: UL, DLC Premium 5.1
- 5 Years Warranty
- Replaces 250-320W HID/MH
- Lumens Selectable:
- 130w = 20,020 (Preset)
- 105w = 15,400
- 90w = 13,200
Starting At $84.95
PAVO II LED Bay Light - 155W/130W/115W - 23,250 lumens - 120-277V - 5000K - 400W Metal Halide Equal
SKU: KPVMW1550KLV|SEARCH CODE: 10-0302
- Dimensions: 14"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- CCT: 5000K Daylight White
- Certificates: UL, DLC Premium 5.1
- 5 Years Warranty
- Replaces 320-400W HID/MH
- Lumens Selectable:
- 155w = 23,250 (Preset)
- 130w = 20,150
- 115w = 17,480
Starting At $89.95
PAVO I LED Bay Light - 130W/105W/90W - 20,020 lumens - 120-277V - 5000K/4000K - 320W Equal
SKU: KPVMW13MCLV|SEARCH CODE: 10-0314
- Dimensions: 14"L x 11.5"W x 2.1"H
- Wattage Selectable: 130W/105W/90W
- Brightness: 20,020lm/15,400lm/13,200lm
- CCT Selectable: 5000K/4000K
- 0-10V Dimmable
- Certificates: UL, DLC Premium 5.1, NLC
- Replaces 250-320W HID/MH
- 5 Years Warranty
Starting At $94.95
PAVO III LED High Bay Light - 210W/180W/155W Selectable - 31,290 Lumens - 120-277V - 5000K - 600W Equal
SKU: KPVMW2150KLV|SEARCH CODE: 10-0303
- Dimensions: 14"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- CCT: 5000K Daylight White
- Certificates: UL, DLC Premium 5.1
- 5 Years Warranty
- Replaces 400-600W HID/MH
- Lumens Selectable:
- 210w = 31,290 (Preset)
- 180w = 27,360
- 155w = 23,710
Starting At $98.65
PAVO III LED High Bay Light - 210W - 3 Watts Selectable - 31,290 Lumens - 120-277V - 5000K/4000K Selectable - 600W Equal
SKU: KPVMW21MCLV|SEARCH CODE: 10-0311
- Dimensions: 14"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- CCT: 5000K/4000K Selectable
- Certificates: UL, DLC Premium 5.1,NLC
- 5 Years Warranty
- Replaces 400-600W HID/MH
- Lumens Selectable:
- 210w = 31,290 (5000K,Preset)
- 180w = 27,360
- 155w = 23,710
Starting At $108.65
PAVO IV LED High Bay Light - 310W/270W/240W - 46,500 lumens - 120-277V - 5000K - 1000W Metal Halide Equal
SKU: KPVMW3150KLV|SEARCH CODE: 10-0304
- Dimensions: 20.5"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- CCT: 5000K Daylight White
- Certificates: UL, DLC Premium 5.1
- 5 Years Warranty
- Replaces 600-1000W HID/MH
- Lumens Selectable:
- 310w = 46,500 (Preset)
- 270w = 40,500
- 240w = 36,000
Starting At $149.95
PAVO IV LED High Bay Light - 310W/270W/240W -5000K/4000K - up to 46,000 lumens - 120-277V - 1000W Metal Halide Equal
SKU: KPVMW31MCLV|SEARCH CODE: 10-0310
- Dimensions: 20.5"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- Replaces 600-1000W Metal Halide
- Certificates: UL, DLC Premium 5.1
- 120-277 Volt
- 5000K or 4000K CCT Tunable
- 5 Years Warranty
Starting At $155.95
PAVO II LED High Bay Light - 155W - 3 Watts Selectable - 22,750 Lumens - 277-480V - 5000K/4000K Selectable - 400W Equal
SKU: KPVMW15MCHV|SEARCH CODE: 10-0309
- Dimensions: 14"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- CCT: 5000K/4000K Selectable
- Certificates: UL, DLC Premium 5.1,NLC
- 5 Years Warranty
- Replaces 320-400W HID/MH
- Lumens Selectable:
- 155w = 22,750 (5000K,Preset)
- 130w = 19,560
- 115w = 17,750
Starting At $178.65
PAVO III LED High Bay Light - 210W - 3 Watts Selectable - 31,290 Lumens - 277-480V - 5000K/4000K Selectable - 600W Equal
SKU: KPVMW21MCHV|SEARCH CODE: 10-0308
- Dimensions: 14"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- CCT: 5000K/4000K Selectable
- Certificates: UL, DLC Premium 5.1,NLC
- 5 Years Warranty
- Replaces 400-600W HID/MH
- Lumens Selectable:
- 210w = 31,290 (5000K,Preset)
- 180w = 27,360
- 155w = 23,710
Starting At $198.65
PAVO IV LED High Bay Light - 310W/270W/240W -5000K/4000K - up to 46,000 lumens - 277-480V - 1000W Metal Halide Equal
SKU: KPVMW3150KHV|SEARCH CODE: 10-0306
- Dimensions: 20.5"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- 277-480 Volt
- Replaces 600-1000W Metal Halide
- 5000K or 4000K CCT Tunable
- Certificates: UL, DLC Premium 5.1,NLC
- 5 Years Warranty
Starting At $209.95
PAVO V LED High Bay Light - 420W/360W/310W Selectable - 63,800lm - 120-277V - 5000K - 1000W Equal
SKU: KPVMW4250KLV|SEARCH CODE: 10-0305
- Dimensions: 28"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- Replaces 1000W Metal Halide
- 5000K Daylight White
- 5 Years Warranty
- Field Installation with 2 PAVO III
- Lumens Selectable:
- 420w = 63,840 (Preset)
- 360w = 54,000
- 310w = 47,430
Starting At $224.65
