Product Overview

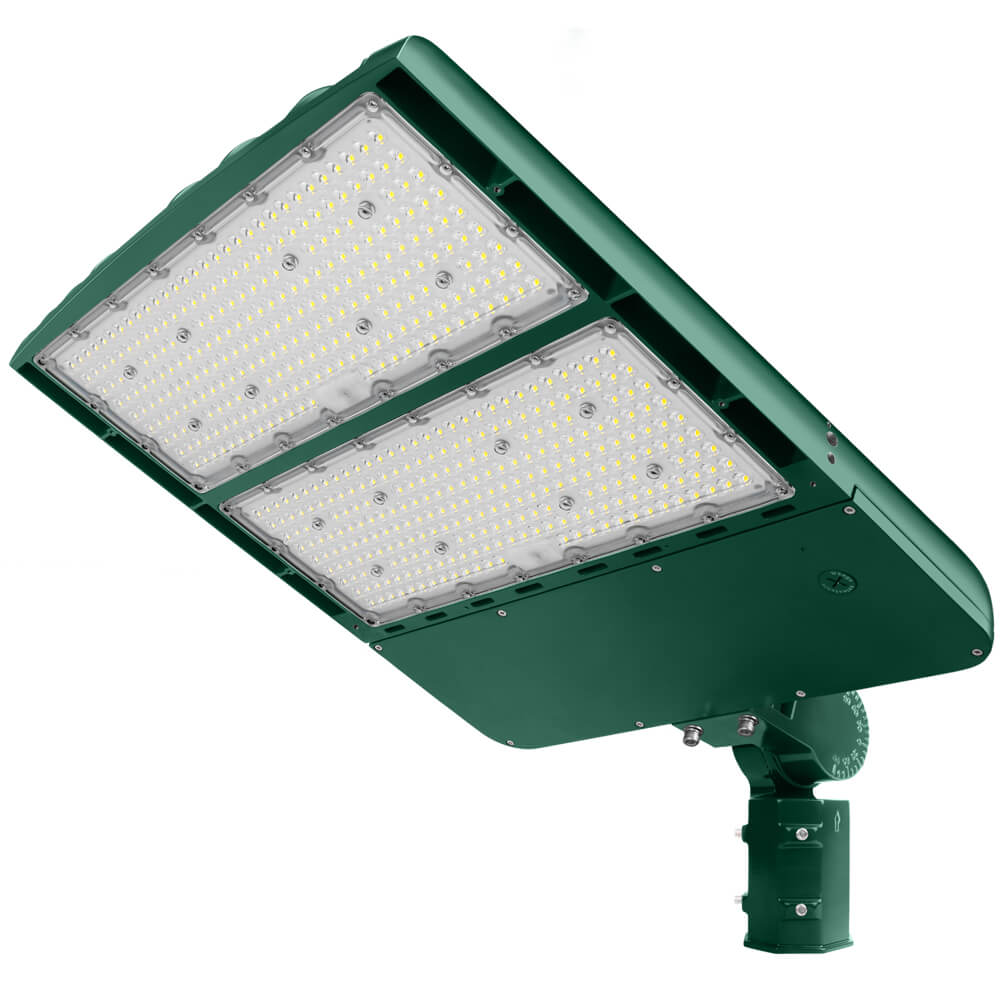

Engineered for professional sports lighting, the Konlite Spica Series 400W Tennis Court Light in Hunter Green delivers high-precision illumination optimized specifically for tennis and pickleball court geometry. Featuring a Wide Asymmetric optical distribution, this fixture projects light forward and outward—brightening the full playing surface while minimizing glare and reducing shadows for players and spectators. Its beam profile matches the distribution diagrams shown in the Spica specification, ensuring excellent uniformity across regulation courts.
Built with wattage-selectable performance (400W/320W/240W) and engineered to deliver up to 69,600 lumens, the Spica Series replaces traditional 500W–1,200W HID court fixtures with significantly improved visual clarity and energy efficiency. Athletes benefit from enhanced ball tracking, consistent illumination, and a comfortable glare-controlled environment ideal for competitive play.
The IP66-rated sealed housing, 20kV surge protection, and UL/DLC 5.1 Premium qualifications make it ideal for year-round outdoor installation.
Whether lighting private tennis courts, community recreation centers, or dedicated pickleball facilities, the Hunter Green Wide Asymmetric Spica Series provides performance exactly tailored to rectangular court geometry.

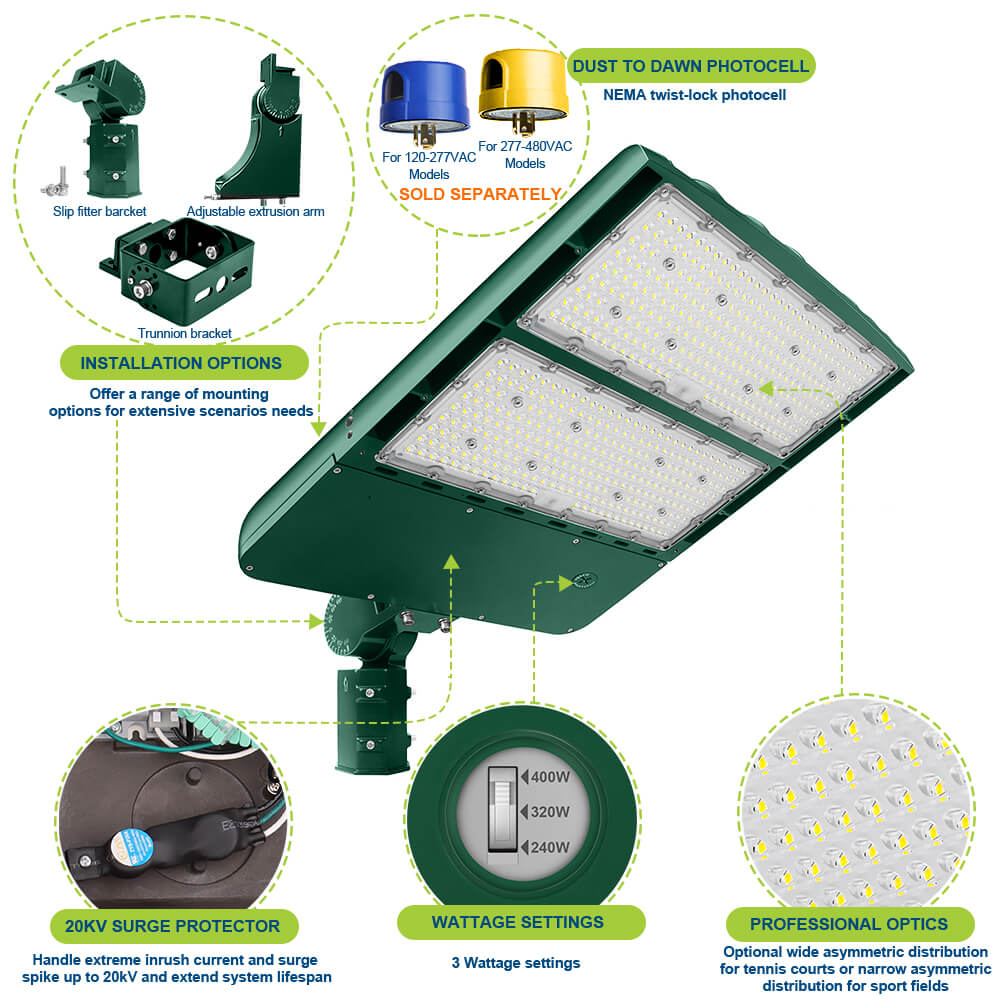

Key Features (Tennis/Pickleball Version)
-
Wide Asymmetric optic ideal for courts
-

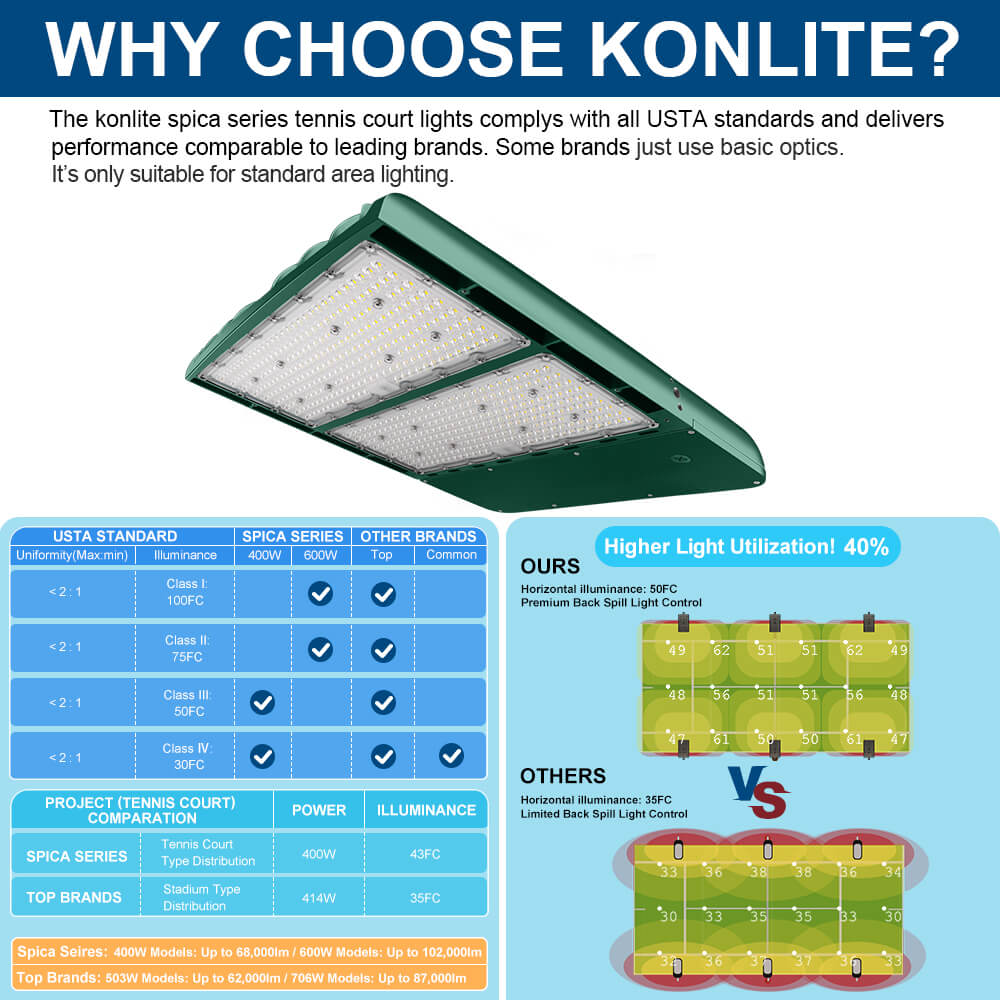

Excellent uniformity across full court area
-
Reduced glare for athletes and spectators
-
Wattage selectable for tailored brightness
-
Up to 69,600 lumens max output
-
IP66 weatherproof + 20kV surge protector
-
UL Listed, DLC 5.1 Premium
-

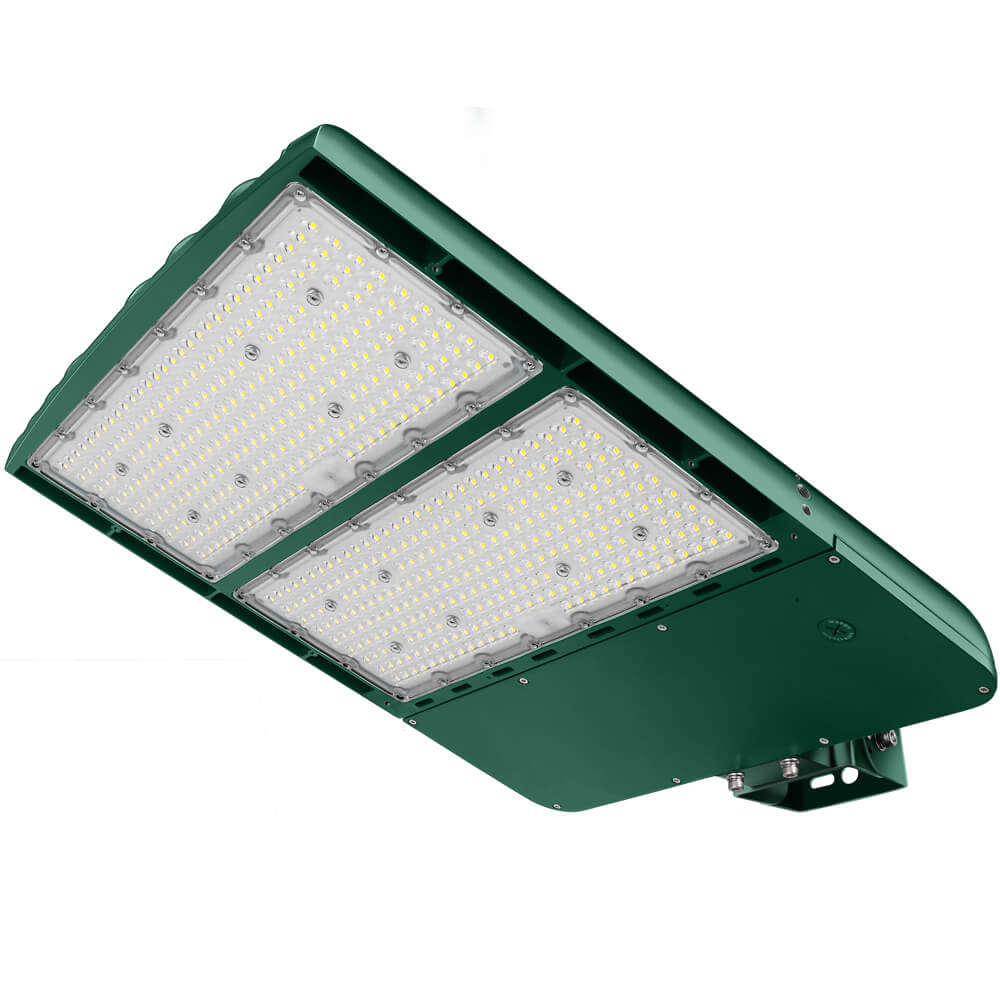

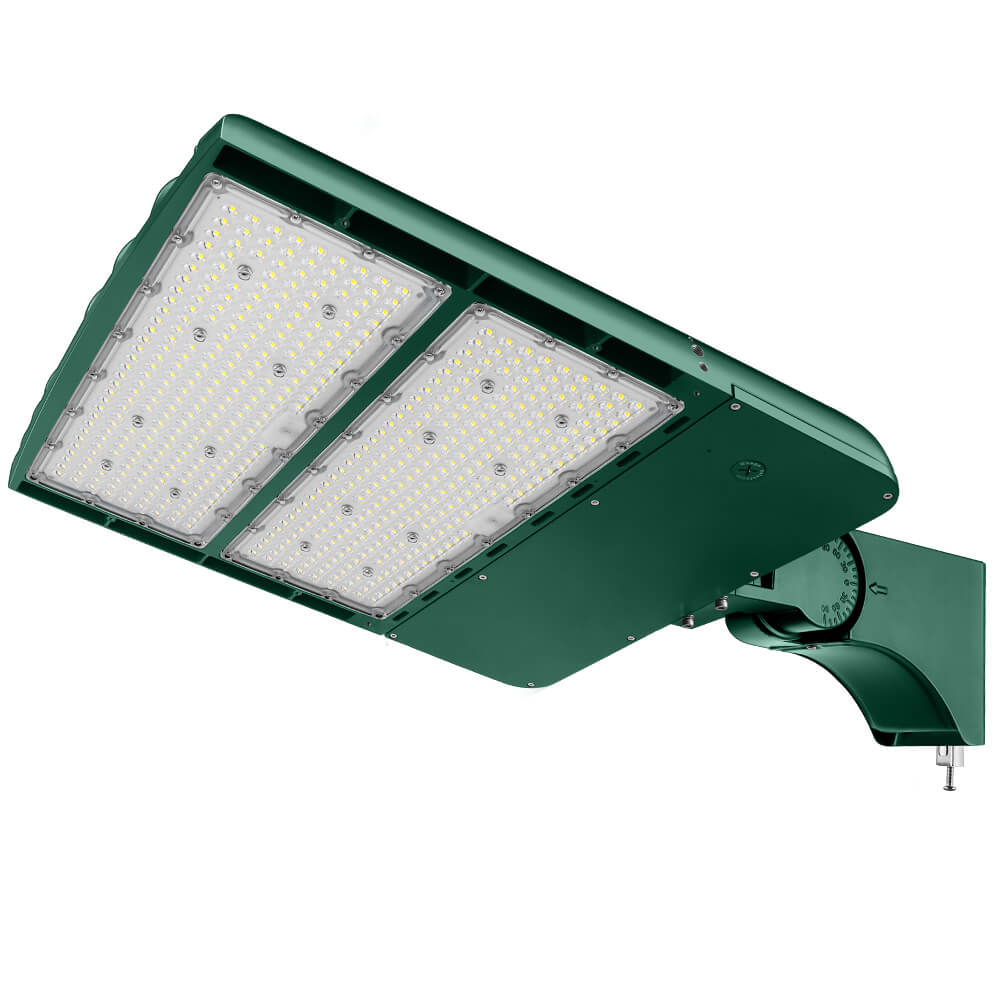

Multiple mounting options for precise aiming
Free Lighting Design
Not sure how many fixtures you need or what wattage or lighting distribution to select?
Contact us for a free professional lighting layout—we’ll design the perfect package for your court and ensure optimal performance.
Applications
| • Tennis Courts | • Pickleball Courts |
| • Paddle Courts | • Training Centers & Clubs |
| • Soccer Fields | • Golf Range |
| • Speedway | • Stadium Lighting |
| • Sports Complex | • Community Parks |
| • Arenas | • Open area High Mast lighting |
| • Schools & Universities | • Natatoriums |
Specifications:
| Brand | Konlite | DLC Part # | KSPLW5KWLGXX |
| Warranty | Limited 10 Years | UPC | 659675231396 |
| Input Voltage | 120-277V, 277-480V | Optical | Wide Asymmetric |
| Input Wattage | 400W/320W/240W | Equal to | 1000W MH |
| Delivered Lumens | 69,600/56,550/43,050 | CRI | >70 |
| Efficacy | 174 LM/W | Available CCT | 5000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP66 |
| Dimmable | N/A | Controls | N/A |

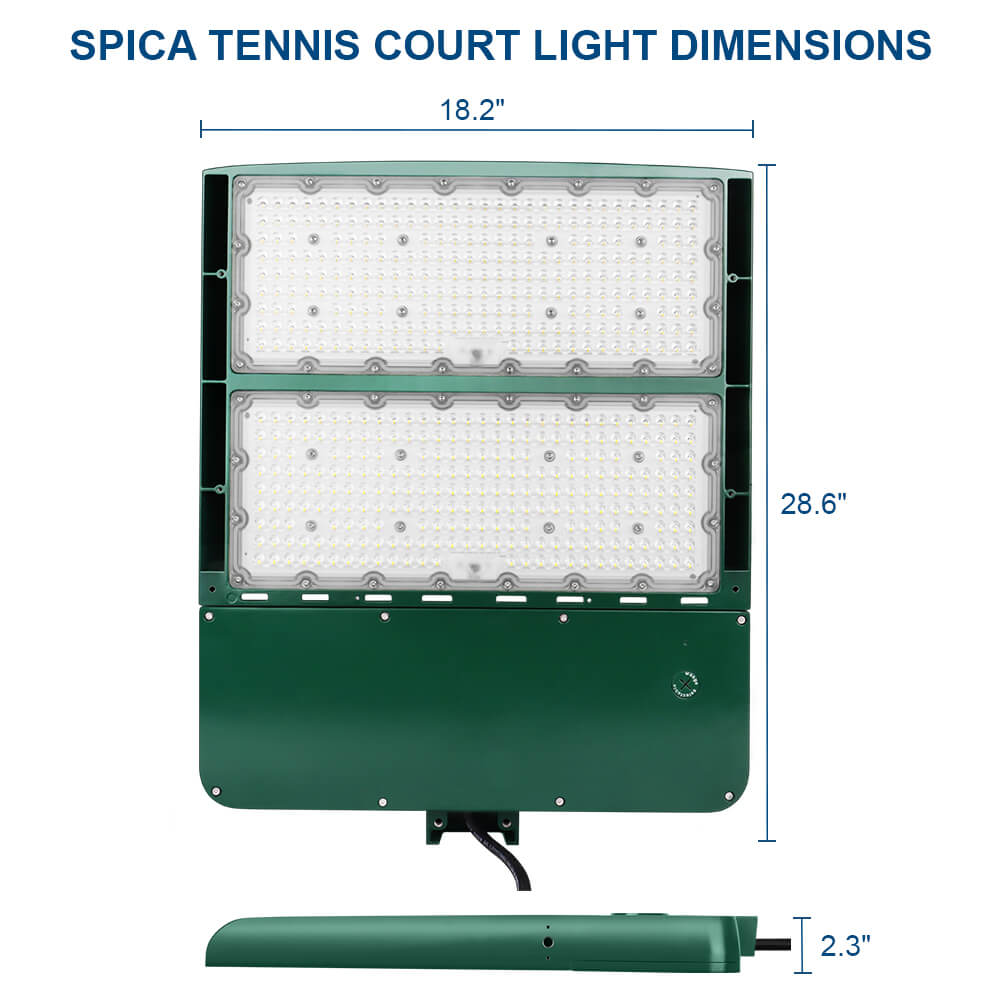

| Operating Temperature | -40 F to 113 F | Fixture Dimensions | 28.6''x18.2''x2.3'' |
| Certifications | UL, Wet Locations, DLC Premium | Unit Weight | 19.84 lbs |
 | Download Specifications |
| Installation Guide |
| Download IES files: 400W-5000K, 320W-5000K, 240W-5000K. |
