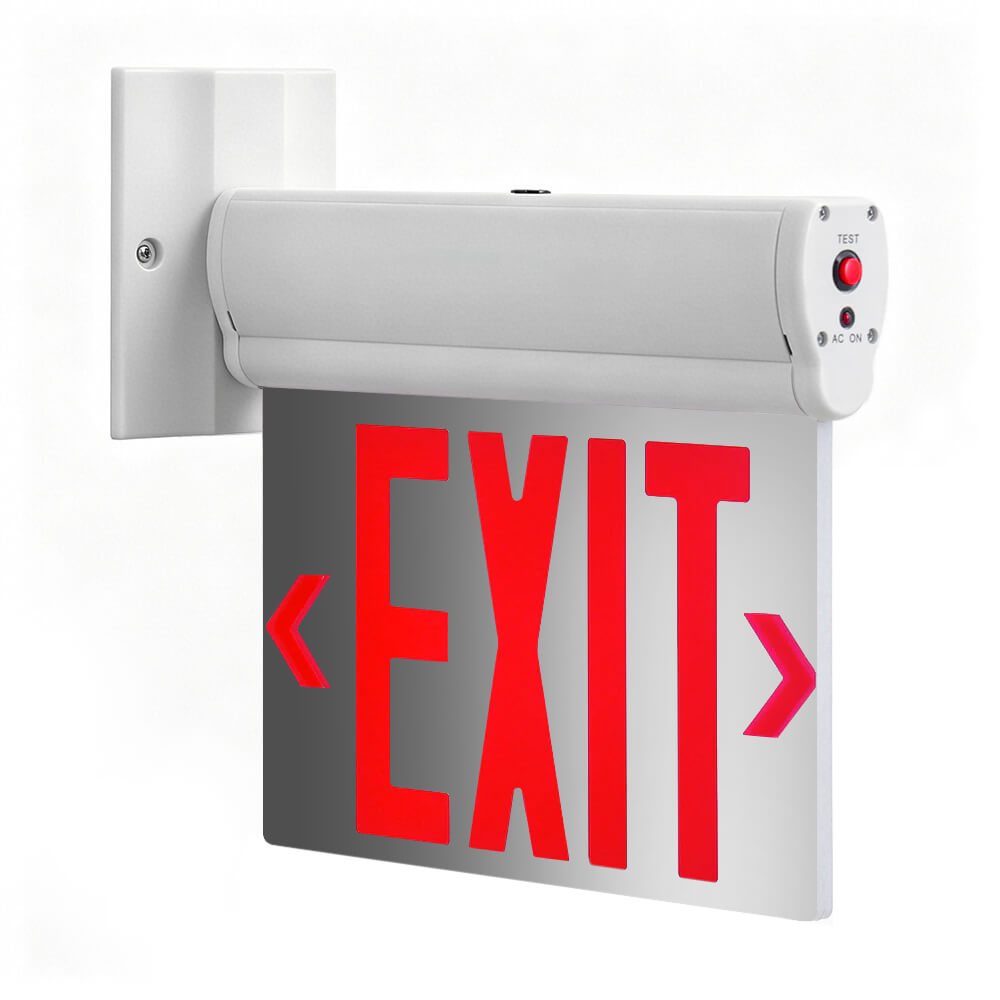

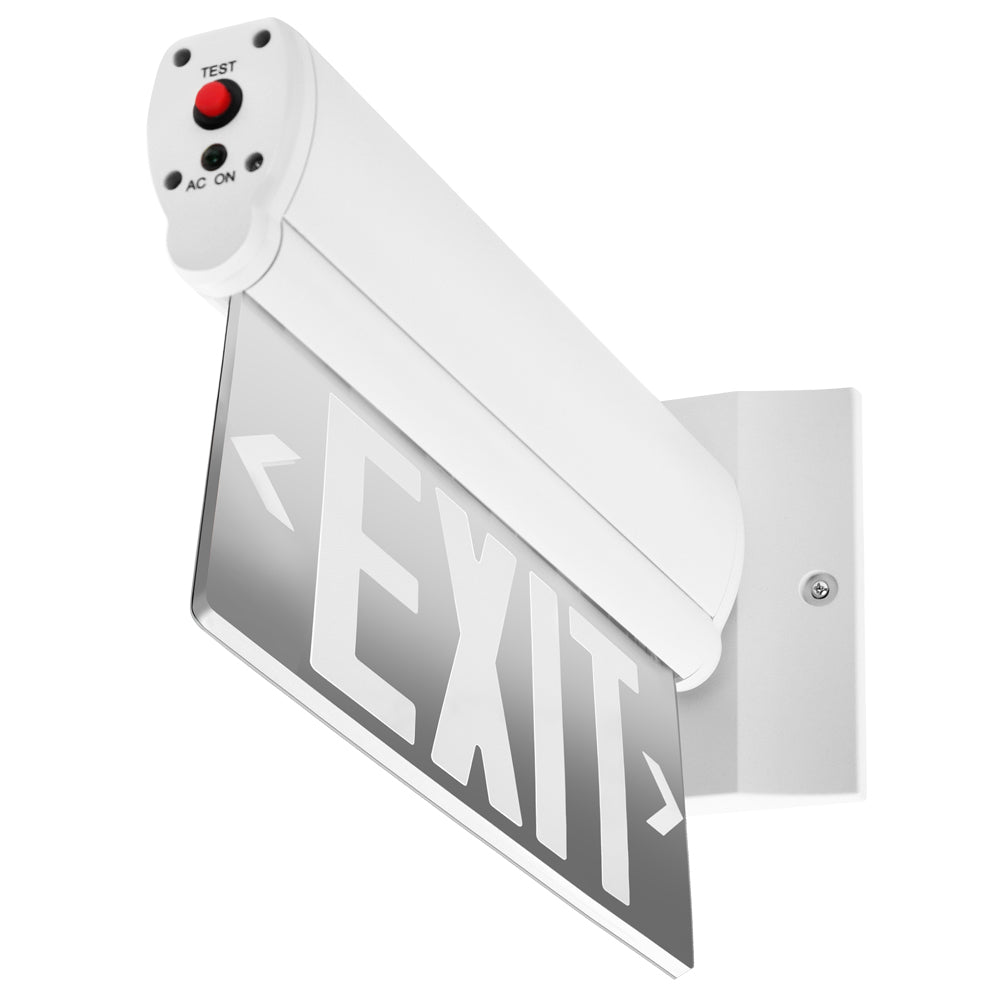

LED edge-lit exit sign red letter side wall mount
LED edge-lit exit sign red letter

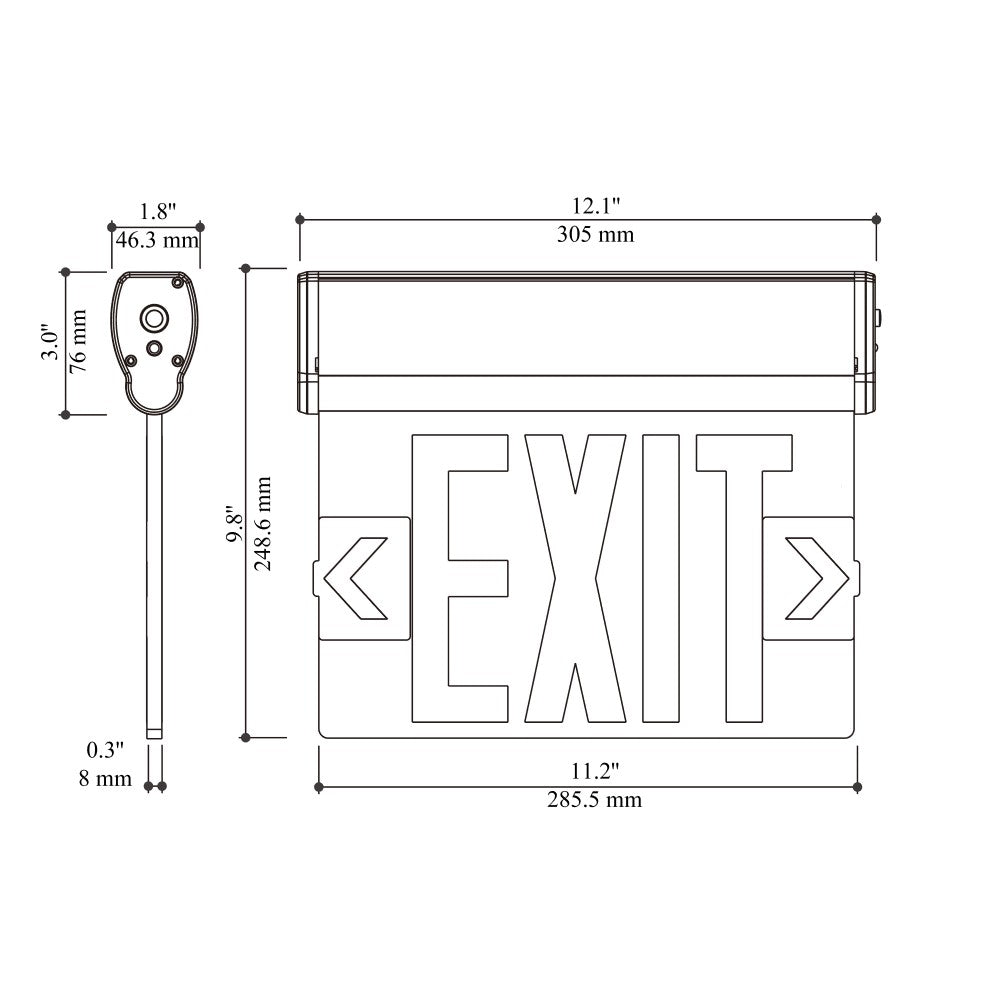

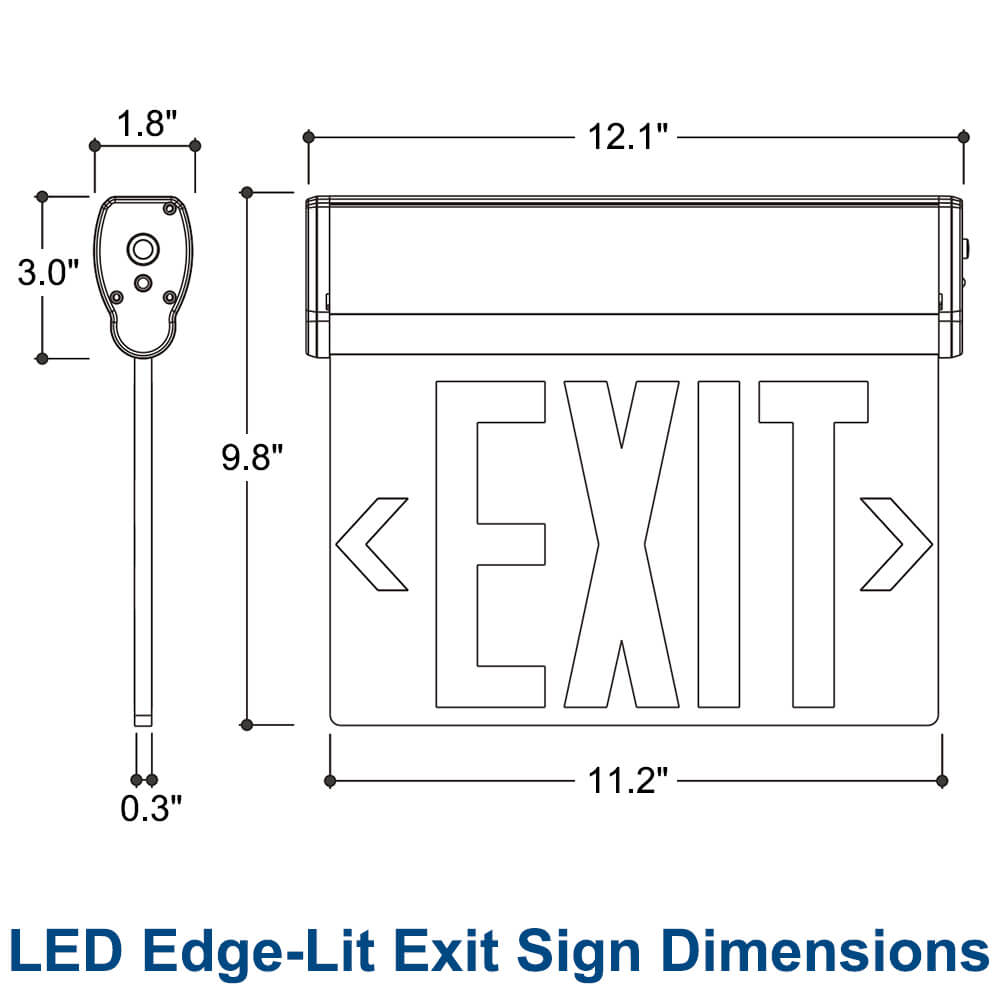

Dimension of LED EXIT Sign

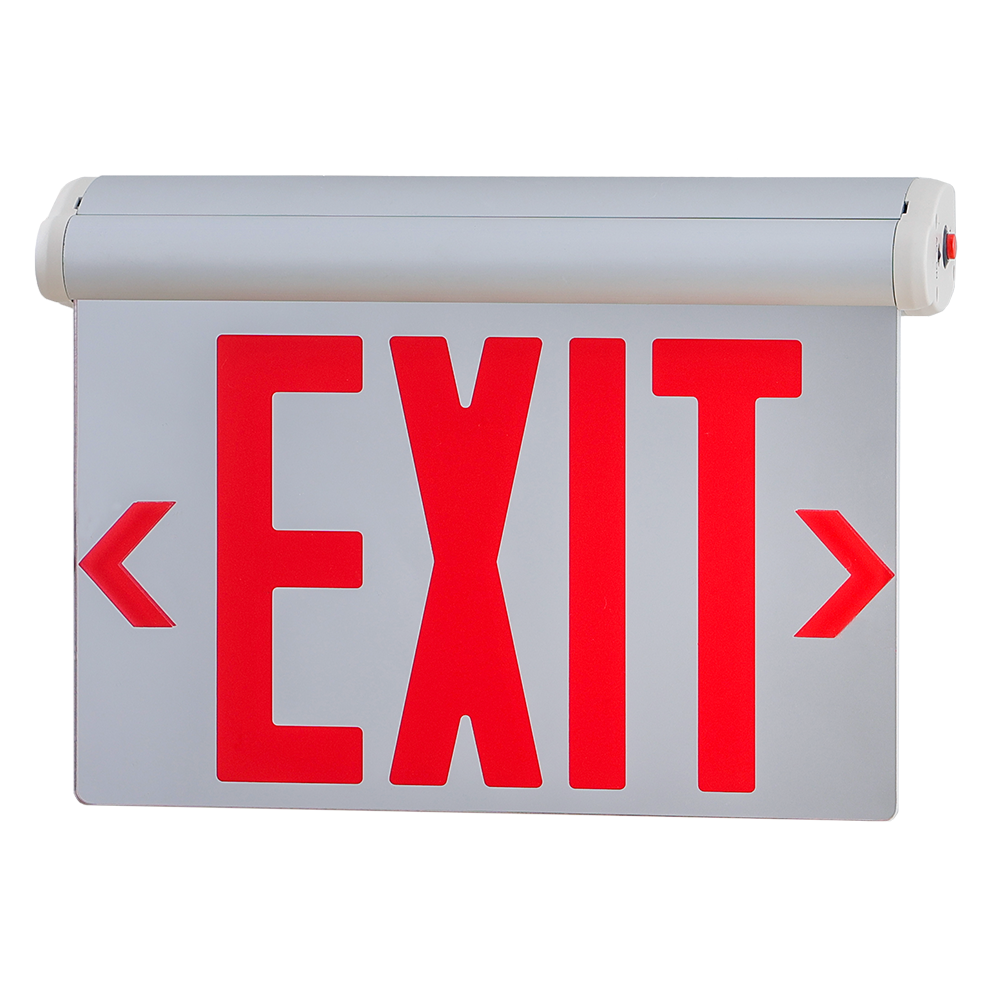

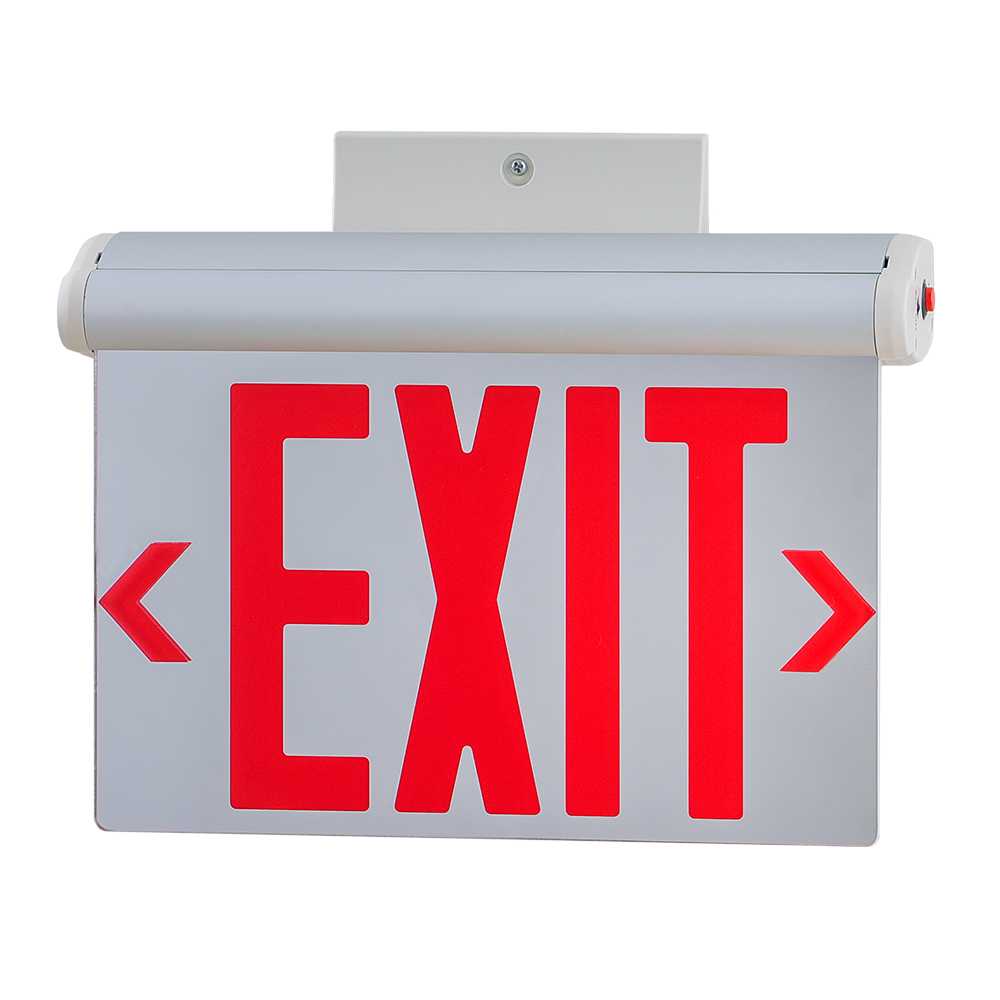

LED edge-lit exit sign red letter top front wall mount

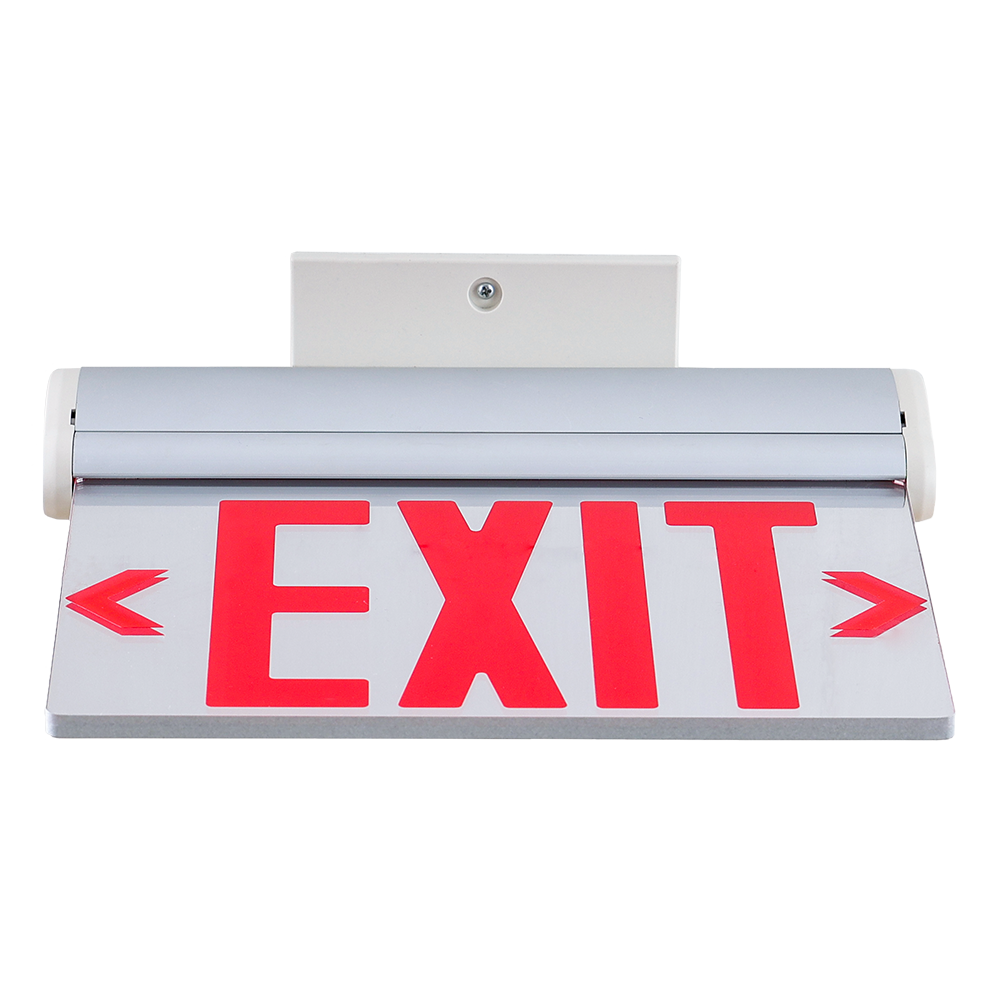

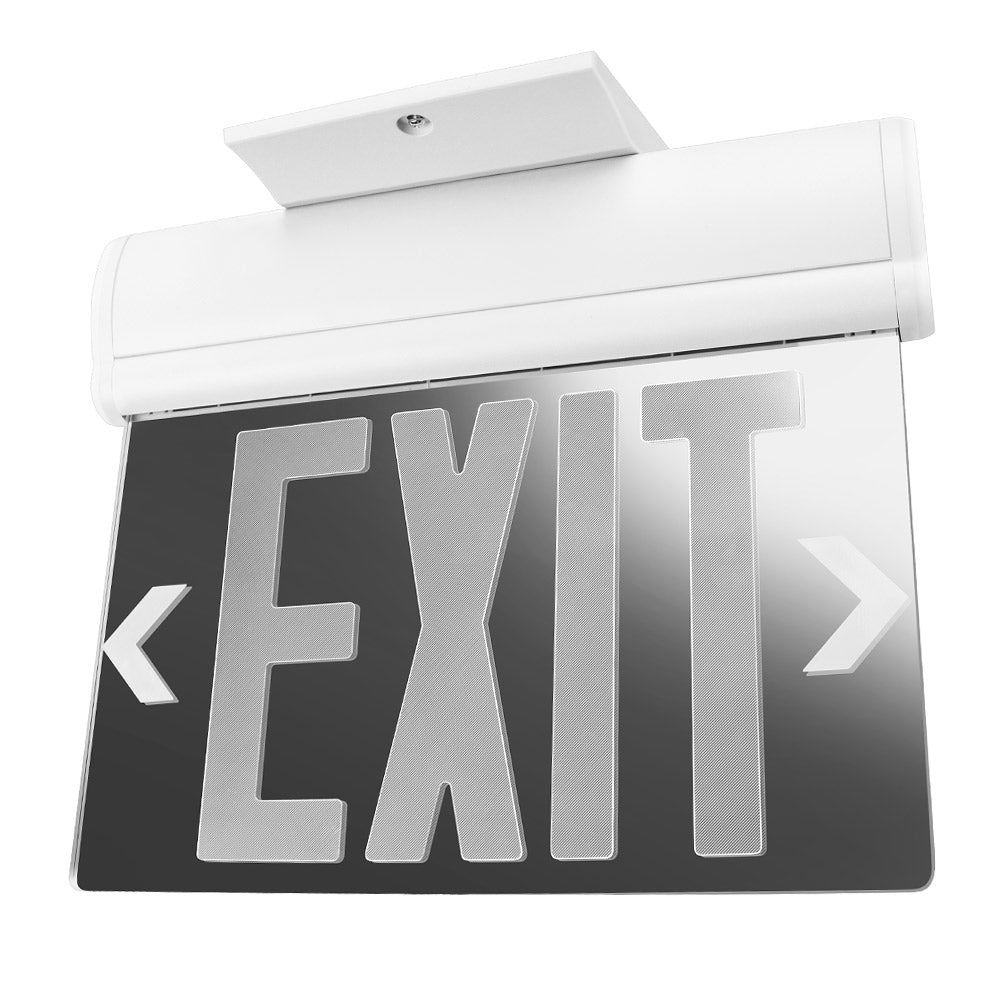

LED edge-lit exit sign red letter ceiling mount

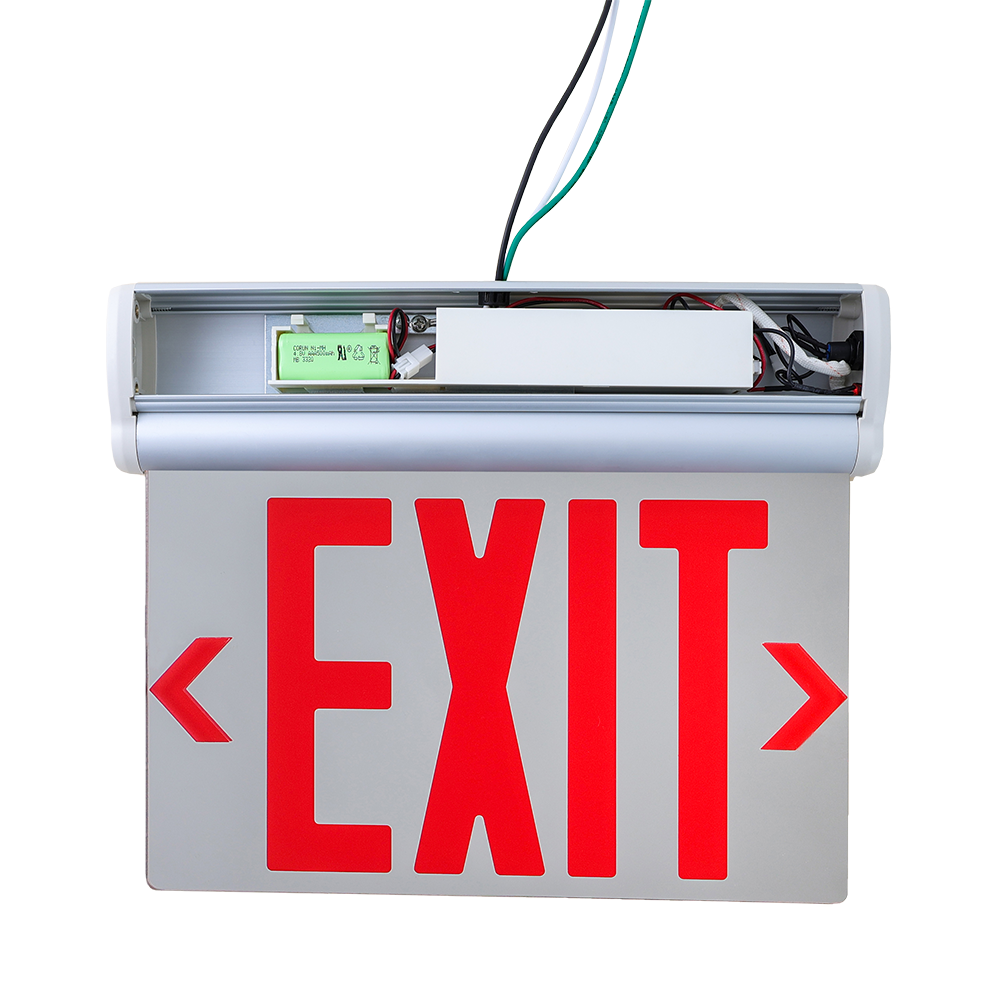

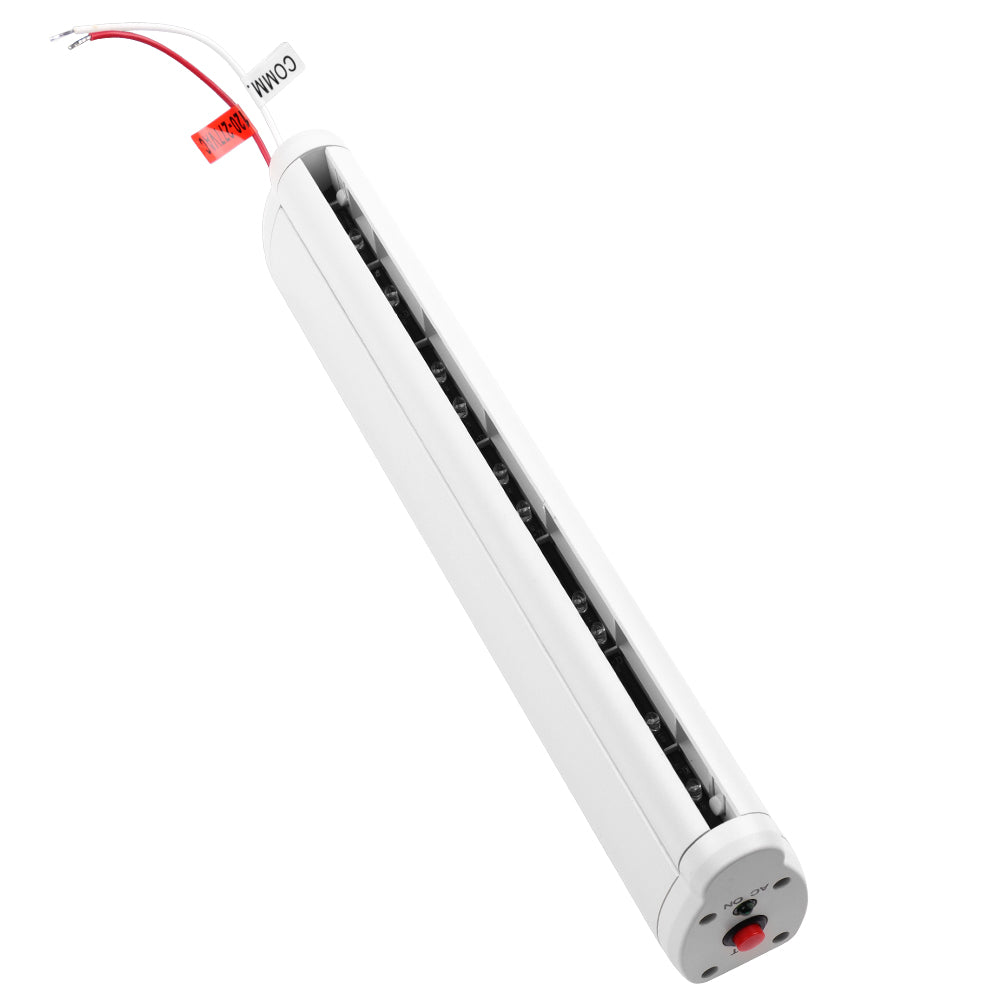

inside LED edge-lit exit sign red letter driver
Roll over image to zoom in Click on image to zoom
LED edge-lit exit sign red letter side wall mountLED edge-lit exit sign red letterDimension of LED EXIT SignLED edge-lit exit sign red letter top front wall mountLED edge-lit exit sign red letter ceiling mountinside LED edge-lit exit sign red letter driver
  • Suitable for wall, ceiling or side mount
  • Removable directional arrow signs
  • 90-minute operation during power loss. Max 24 hours recharge time
  • UL listed for damp locations & meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

Konlite LED Edge-Lit Exit Sign - Red Letter - Single Face - 2.5W - 120-277V

Konlite SKU: JELBEX1RM SEARCH CODE: 24-0203
$69.99 $43.65

  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.
  • Suitable for wall, ceiling or side mount
  • Removable directional arrow signs
  • 90-minute operation during power loss. Max 24 hours recharge time
  • UL listed for damp locations & meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
LED edge-lit exit sign red letter side wall mount
Konlite LED Edge-Lit Exit Sign - Red Letter - Single Face - 2.5W - 120-277V
$69.99 $43.65

Product Overview

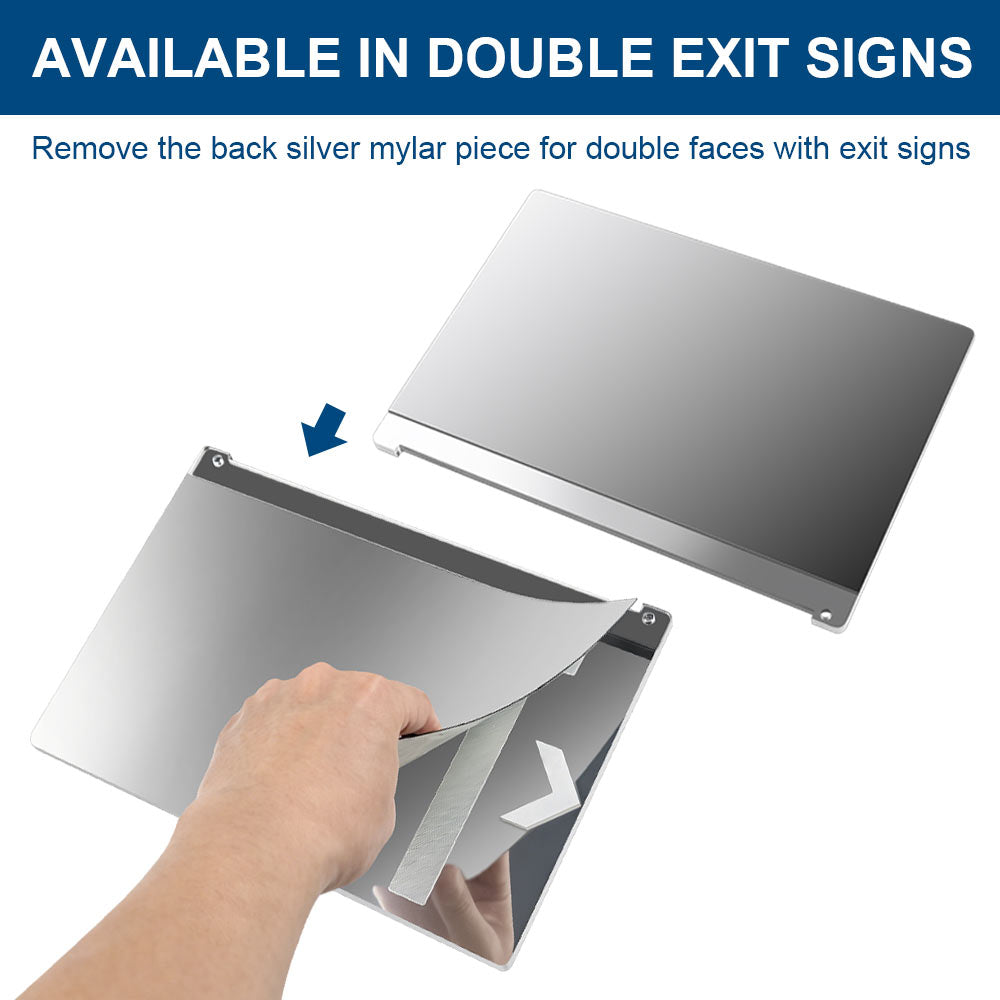

This Konlite Edge-Lit Exit Sign housing is constructed of die-cast aluminum housing with a clear acrylic panel. Double sided panel comes as mirrored configuration. Lettering is 6” high with 3/4” stroke. is an easy and efficient light that provides optimal lighting. The slick and modern design makes the emergency light presentable in any kind of installation.
This unit contains a battery for backup power. The battery must be connected during installation.

Applications

•Emergency Lighting •Hallway
•Retail, Commercial, and Industrial applications •Exit identification
Certifications
US company3 years warrantyUL listedRoHS compliance FCC certification

Specifications

BrandKonliteMPNJELBEX1RM
Warranty3 YearsLamp Head WattageN.A
Input Voltage120-277VLamp HeadsN.A
Input Wattage2.5WInstallation MethodFlush Mount
Full Recharge TimeMaximum 24 hrsEmergency Run Time90 Mins
Operating Temp32°F to 104°FFixture Dimensions12.1"x9.8"x1.8"
Battery 4.8V 400mAh Ni-CD Lamp DimensionsN.A
CertificationsUL, cUL, CEC, DOEUnit Weight2.7 Lbs
