Konlite LED Canopy CP0203 Series - 45W - 5,000 Lumens - 5000K - 120-277V - White - Dimmable - 100W Equal

Product Search Code: 23-0102
KonliteSKU: RDCP02030455KDNSMLW
$114.95



Enhance safety and security to perimeter lighting with the Konlite CP0203 White LED Canopy

  • Suitable for parking garage applications
  • Sealed die-cast profile for indoor and outdoor applications
  • White diffused lens provides crisp uniform illumination
show more
$114.95


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

Enhance safety and security to perimeter lighting with the Konlite CP0203 White LED Canopy

  • Suitable for parking garage applications
  • Sealed die-cast profile for indoor and outdoor applications
  • White diffused lens provides crisp uniform illumination
What's in the box
1 Lighting Fixture with J-Junction - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Lighting Fixture with J-Junction - 1 Installation Guide

Product Overview

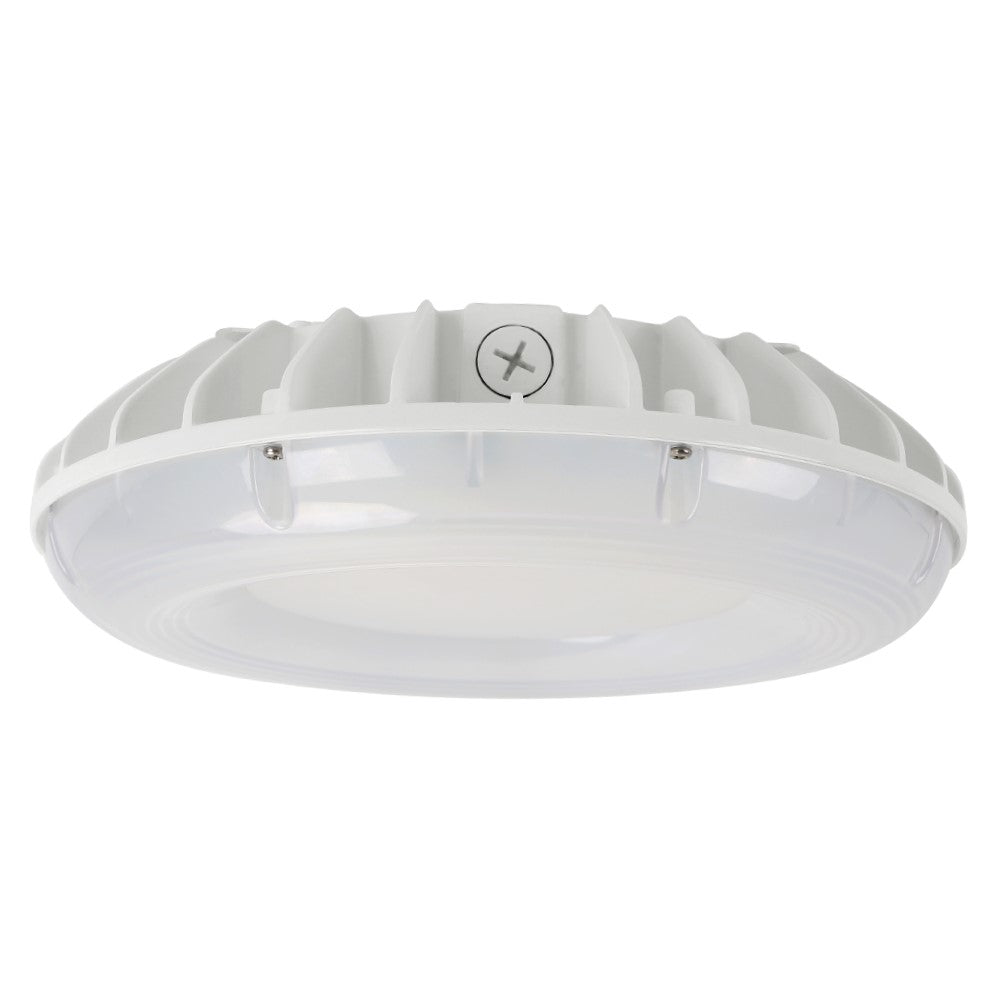

The versatile low profile Konlite CP03 White LED Canopy is ideal for new spaces or replacement of fluorescent or HID. Offers energy savings, while cutting maintenance cost of bulb replacement.

45 Watts, 5000 Lumens, 5000K Commercial Bright White, 0-10V Dimmable

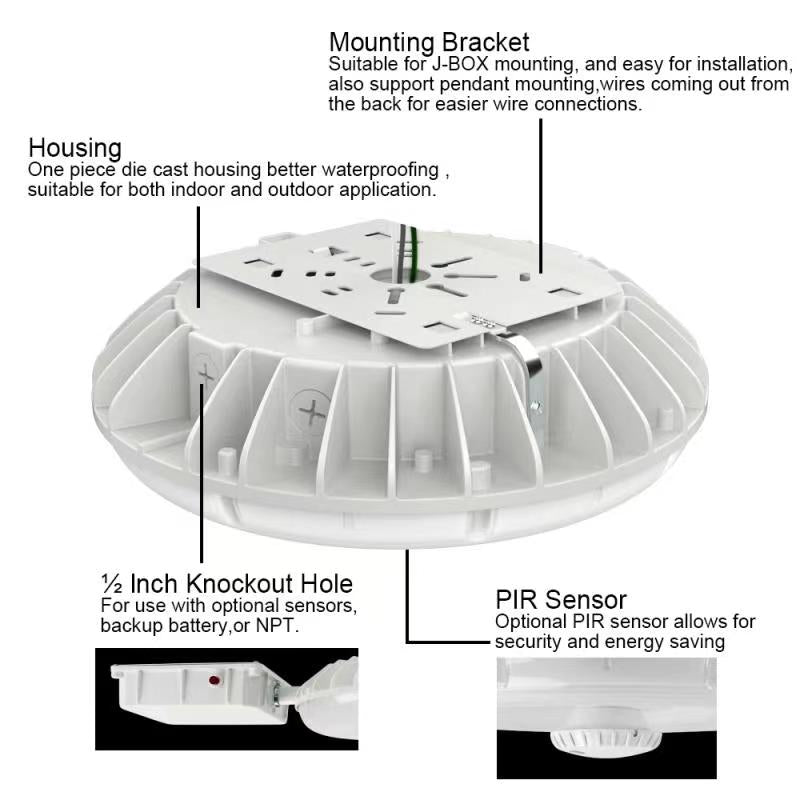

Sealed die cast aluminum housing with corrosion resistant white powder coat finish both protects and provides architectural appearance for indoor and outdoor use. Superior thermal performance extends the life of the fixture.

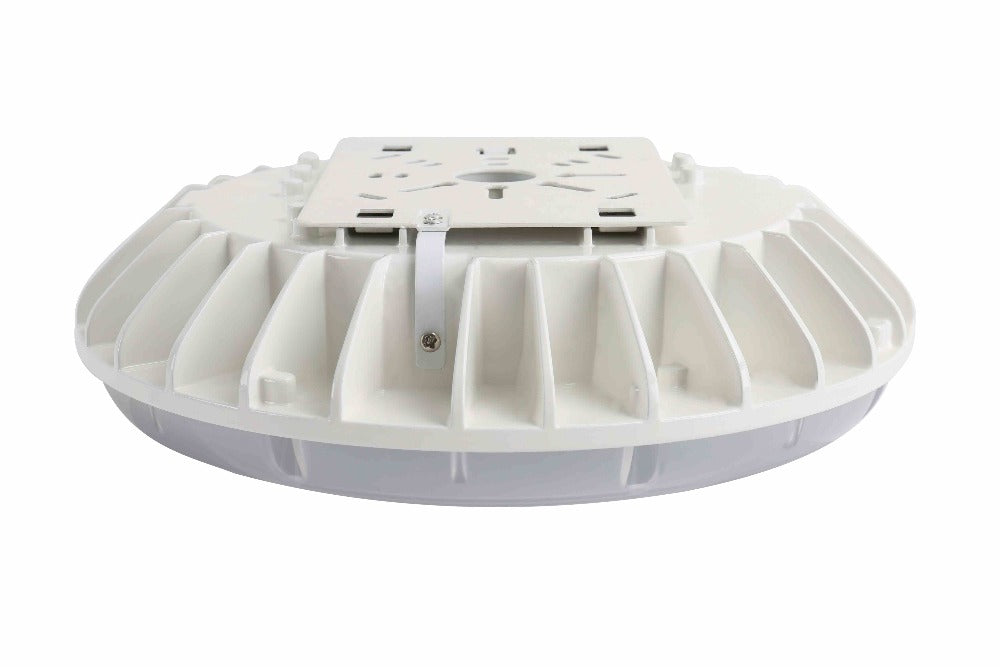

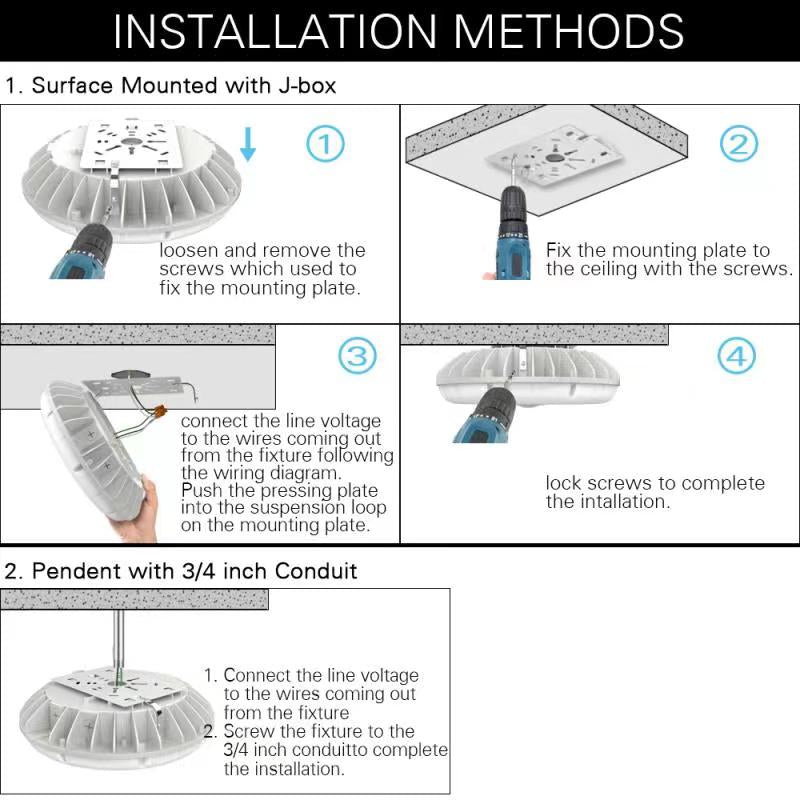

Diffused lens for reduced pixilation and broad beam light distribution. Easy to install, suitable for junction box mounting.

Delivers energy efficient, uniform illumination to a wide range of applications: parking garages, breezeways, stairwells, perimeter lighting, porches, workshop, hotel, retail, and schools.

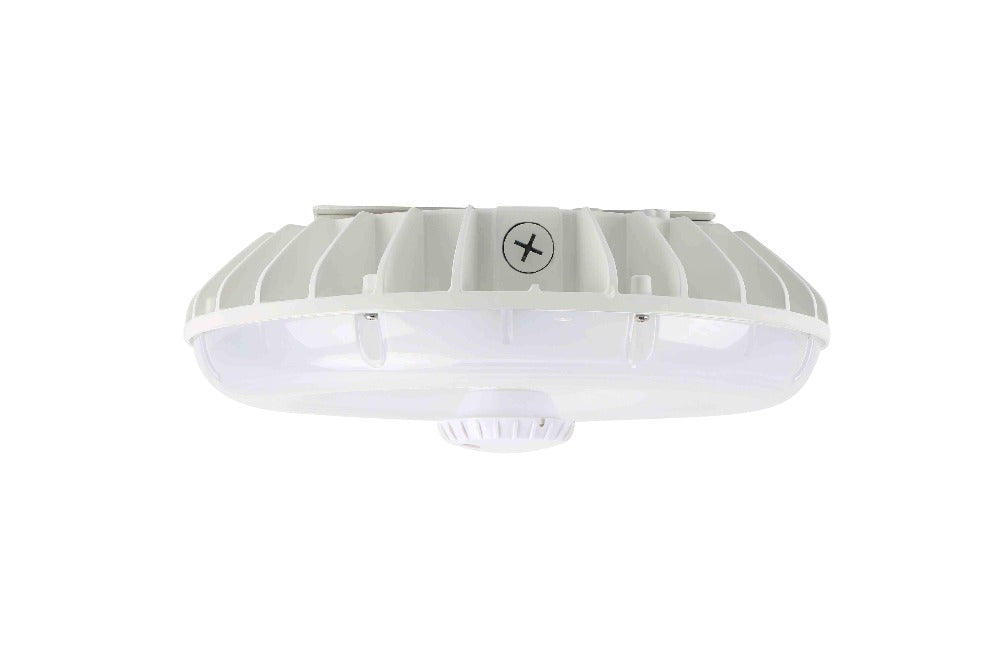

UL wet location, DLC Energy rebate eligible, 50,000>hours L70 lifespan use, 5-year warranty. Optional PIR motion sensor for increased energy savings.

See similar 30-watt60-watt versions.

Applications

• Workshop • Walkways
• Garage • Store Front
• Parking Garage • Gas Stations
• Low Bays • Cover Docks
• General Site Lighting • Doorway and Pathway
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyDLC listed1-10V dimmableFCC certificationIP65 rating

Specification:

BrandKonliteMPNRDCP02030455KDNSMLW
Warranty5 YearsUPC717360773009
Input Voltage120-277VDimmable1-10V
Input Wattage45WEqual to100W MH
Delivered Lumens5,000LMCRI>70
Efficacy111 LM/WAvailable CCT5000K
Rated Life>50,000 hrsTHD<15%
Power Factor>0.9ControlsPIR Motion Sensor
Operating Temp-40°F to 113°FMotion Sensor DefaultHold time 10 Seconds, On Hold 100%, Stand By Time 60 mins, Diming Level 30%
CertificationsUL, Wet Locations, DLC PremiumWeight5.4 lbs
