PAVO II LED High Bay Light - 155W - 3 Watts Selectable - 22,750 Lumens - 277-480V - 5000K/4000K Selectable - 400W Equal

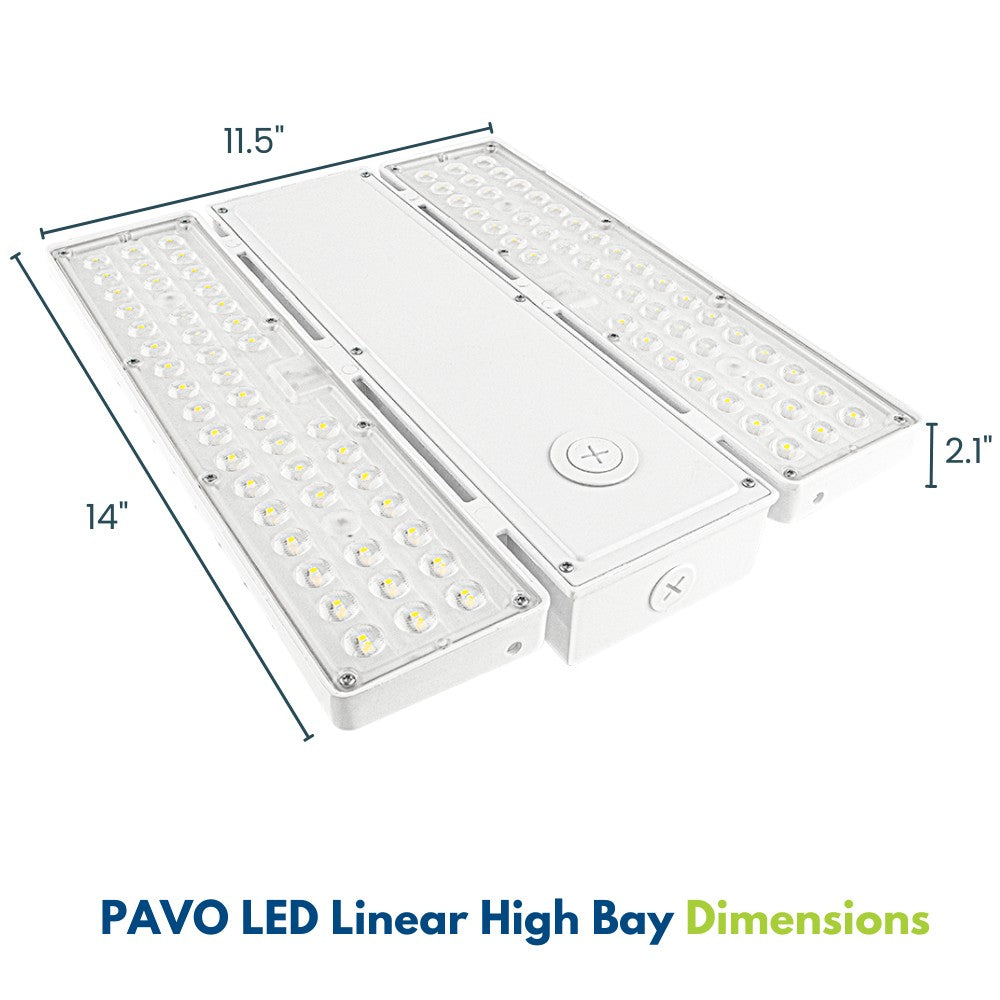

- Dimensions: 14"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- CCT: 5000K/4000K Selectable
- Certificates: UL, DLC Premium 5.1,NLC
- 5 Years Warranty
- Replaces 320-400W HID/MH
- Lumens Selectable:
- 155w = 22,750 (5000K,Preset)
- 130w = 19,560
- 115w = 17,750
- Dimensions: 14"L x 11.5"W x 2.1"H
- 0-10V Dimmable
- CCT: 5000K/4000K Selectable
- Certificates: UL, DLC Premium 5.1,NLC
- 5 Years Warranty
- Replaces 320-400W HID/MH
- Lumens Selectable:
- 155w = 22,750 (5000K,Preset)
- 130w = 19,560
- 115w = 17,750
This Konlite Pavo series compact LED Linear High Bay is ideal for new construction or replacement of 600W HID, 4x54 T5 or 8x54 T5 Lamp fixture. Delivers top energy savings and maintenance free durability for a wide range of applications.
- Die-cast aluminum housing, provides a sturdy structure and excellent thermal management
- Compact design makes handling easier and quick installation
- Plug-in motion sensor easy and fast install
- DLC Premium certified, DLC NLC certified qualifying for maximum rebates where applicable
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview
This Konlite PAVO III LED Linear High Bay Light is a budget-friendly solution that combines a compact and sturdy housing with exceptional performance. Designed to replace 400-watt Metal Halide or HID systems, this high bay light delivers significant energy savings and improved efficiency. Its compact design ensures easy handling and quick installation, making it the perfect choice for modern lighting upgrades.

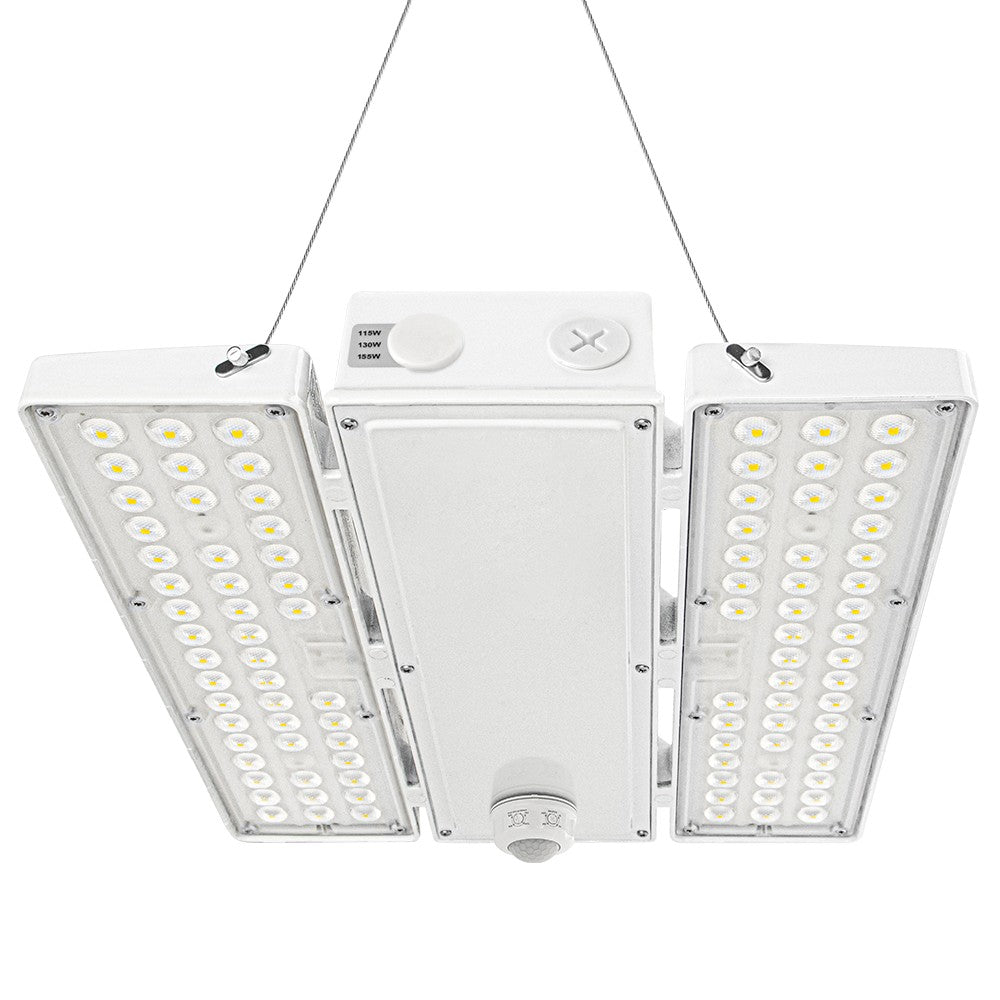

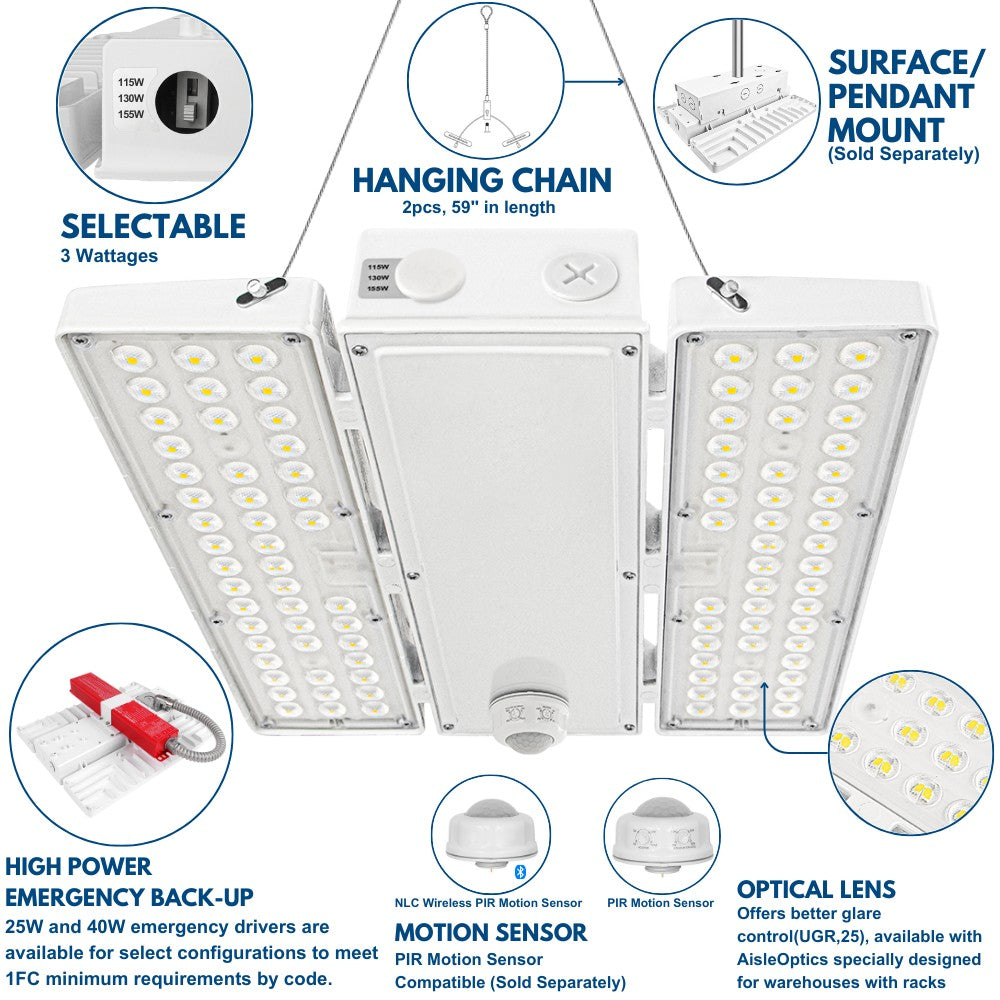

This linear high bay LED light offers wattage-selectable flexibility, which can be adjusted on-site via a 3-step switch located on the side of the fixture. 277-480 Volts input. It emits a 5000K commercial bright white light or 4000K neutral White Light with three field-selectable brightness settings:
155w / 22,750 Lumens
130w / 19,560 Lumens
115w / 17,750 Lumens
(Preset at 155 watts)

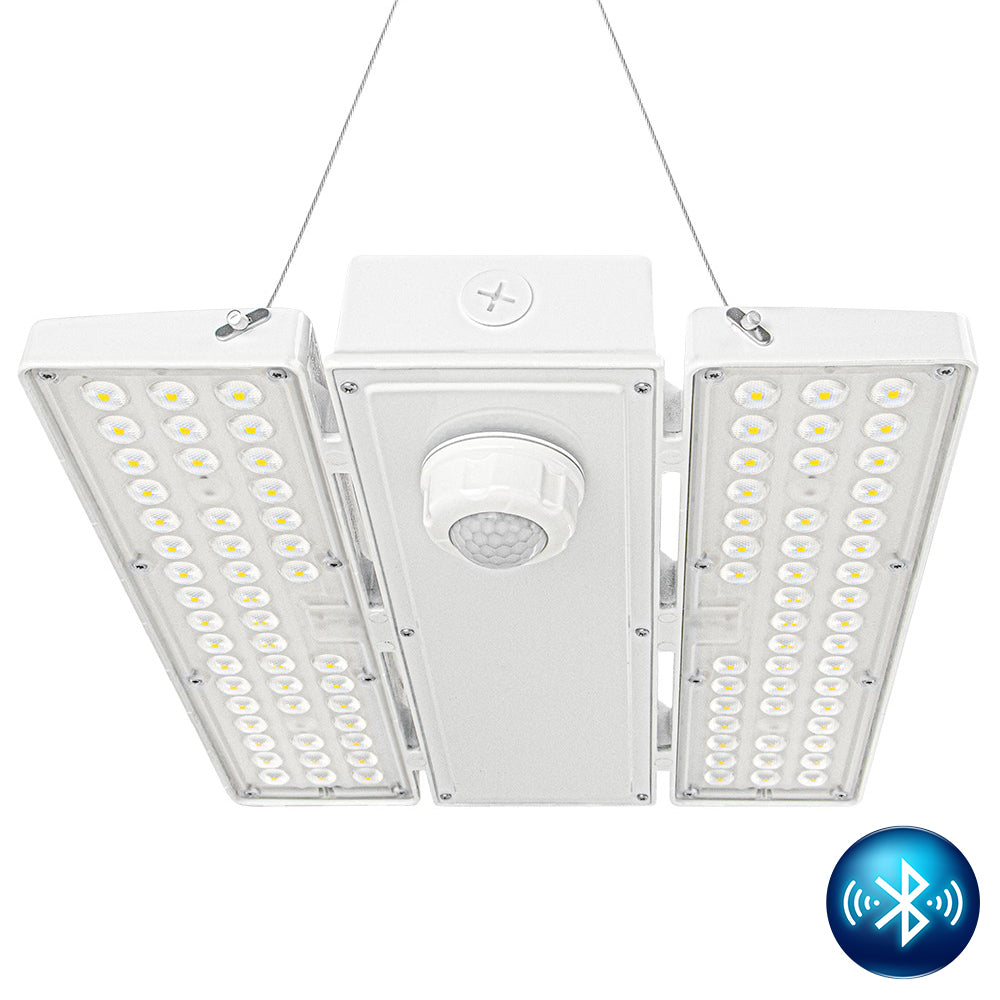

Upgrade your lighting control system with Haisen Blue Network Lighting Controls (NLC) and discover the ultimate in flexibility, affordability, and ease of use. Perfect for businesses and facilities of all sizes, the DLC qualified NLC system empowers you to take full command of your lighting environment, enhancing efficiency and ambiance with just a few simple clicks. Simply select NLC Bluetooth sensor with PAVO High Bay Lights, ensuring a smooth and efficient control experience right out of the box.

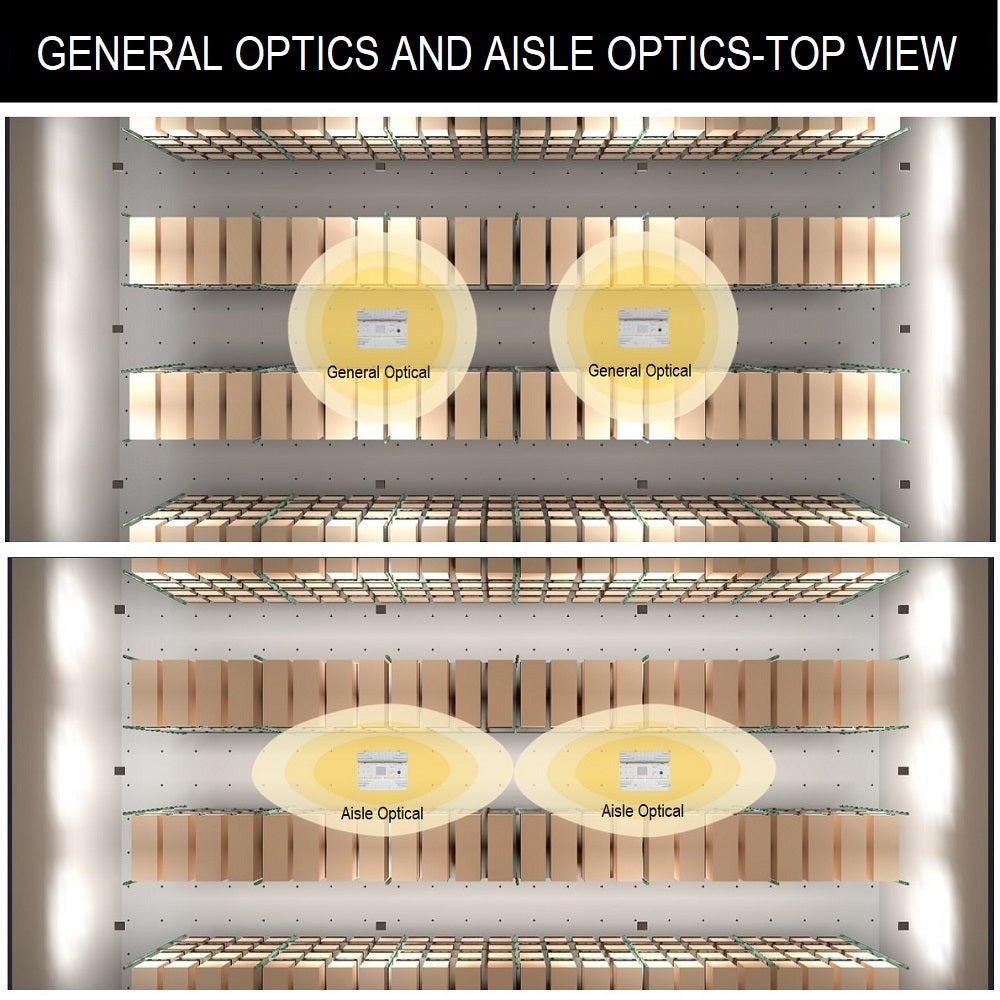

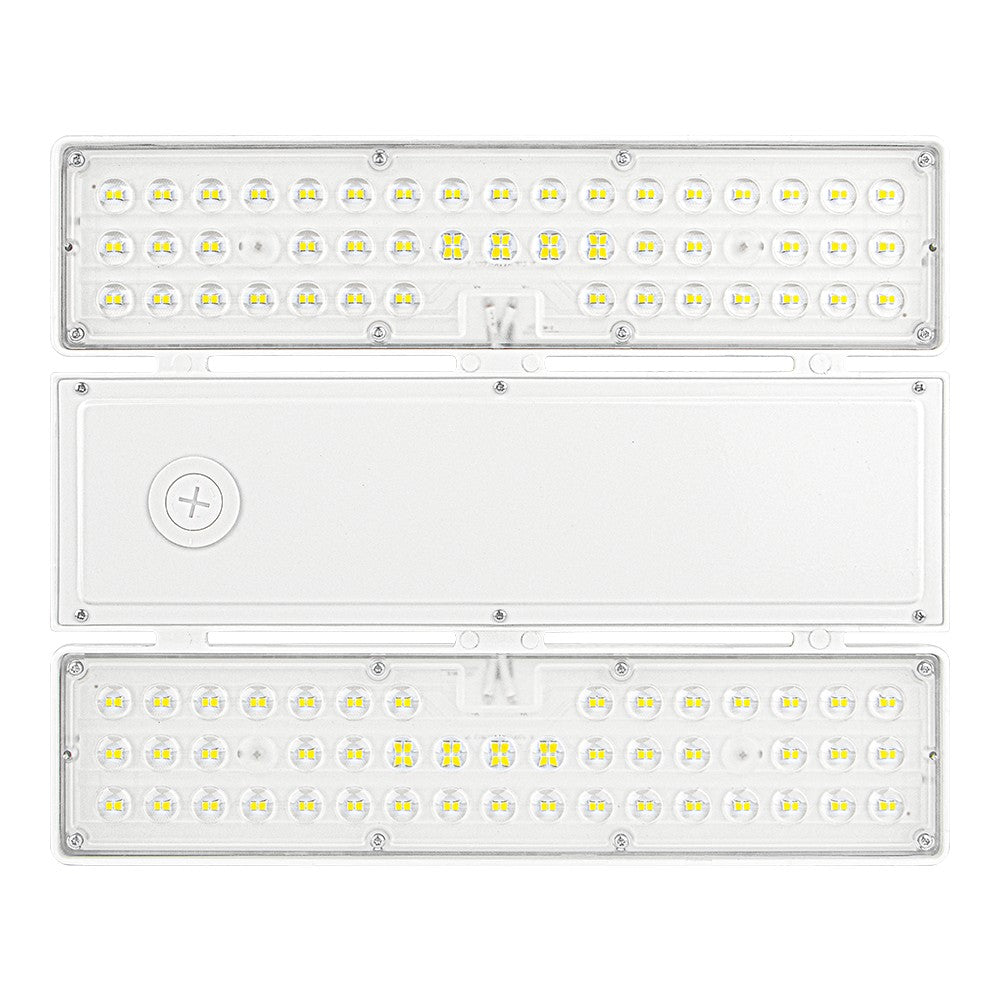

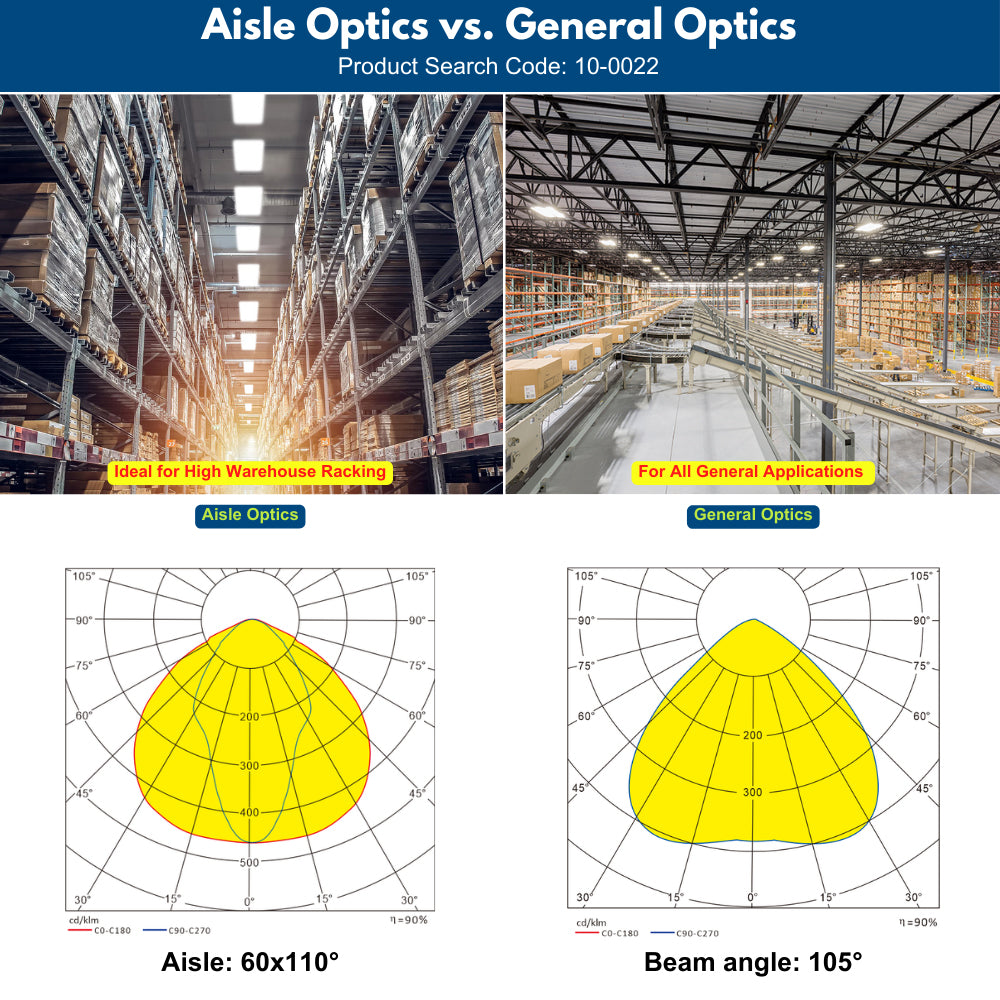

Equipped with an optical lens instead of an ordinary diffuser, our linear LED high bay light provides superior glare control and increased efficacy. The optional Aisle Optic is an ideal solution for warehouse applications with tall racks, maximizing light usage efficiency and delivering greater energy savings.

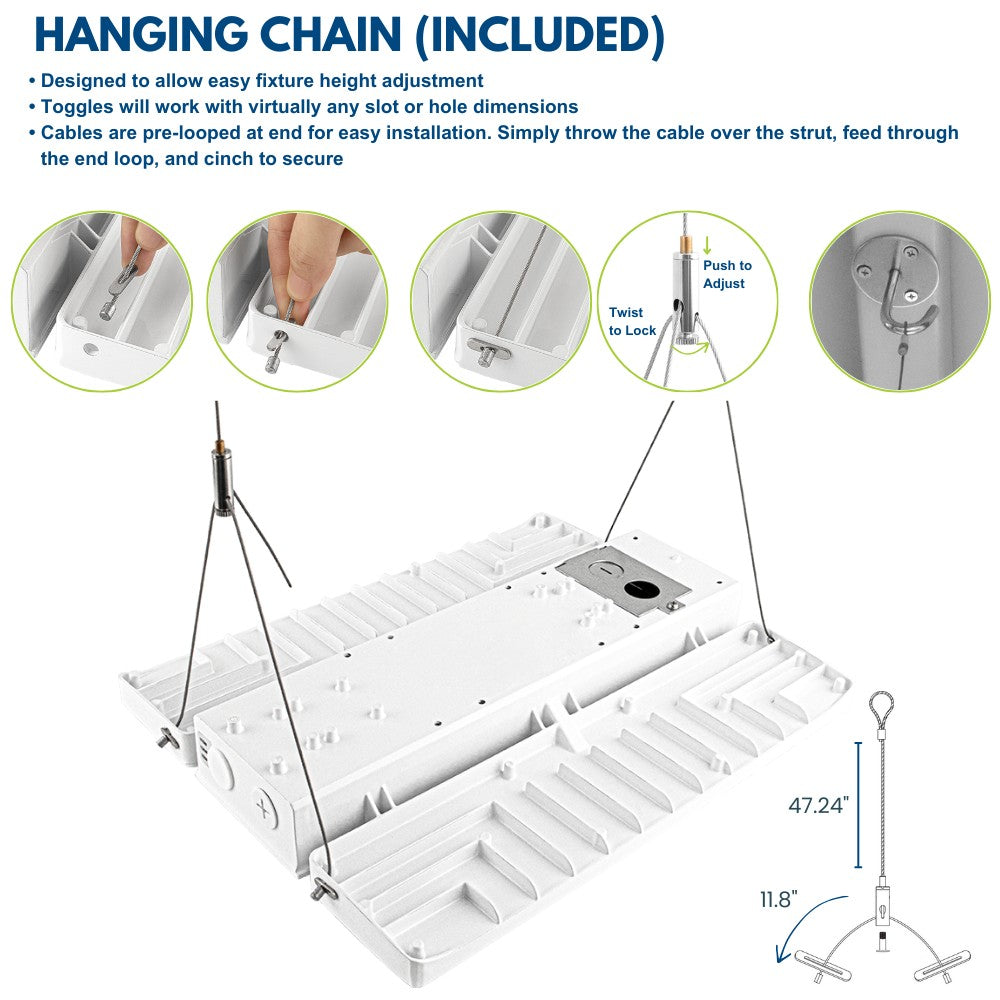

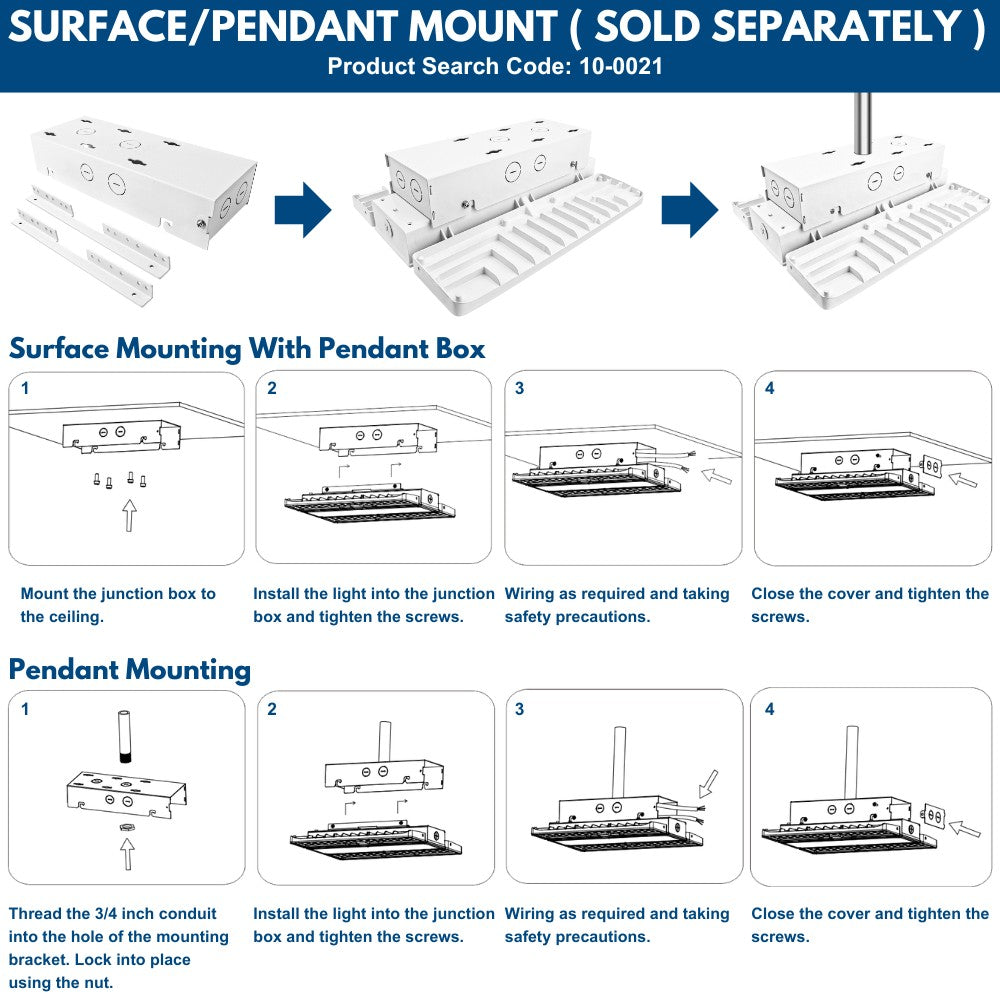

PAVO III high bay light comes with one set of 3 foot suspension chains, with optional Surface Mount and Pendant Mount also available for versatile installation options. Experience the benefits of advanced lighting technology with our Konlite PAVO series LED Linear High Bay Light, the perfect energy-efficient replacement for 400-watt Metal Halide or HID systems in industrial or commercial spaces.

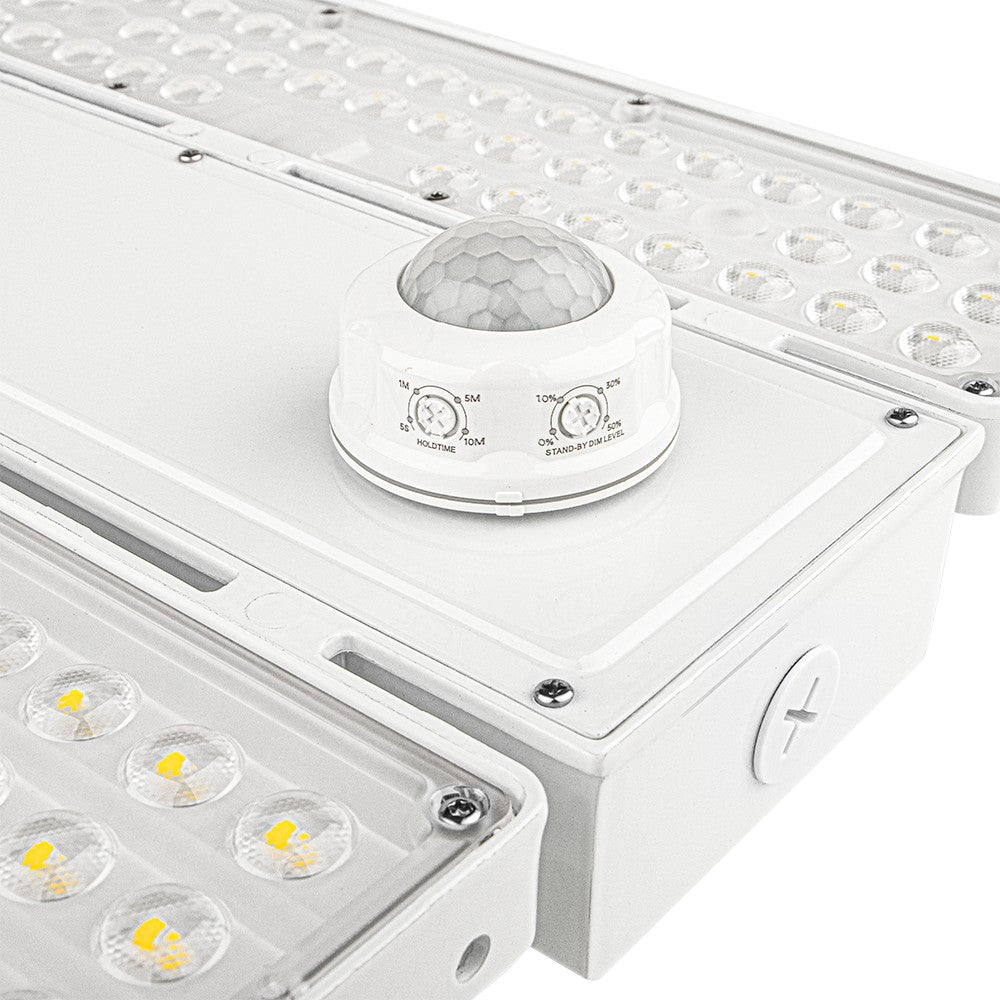

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity. Optional remote control is required to program the motion sensor.
Applications
| •Warehouses | •Workshops |
| •Convention Centers | •Low Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retails | •Gymnasiums |
Specification
| Brand | Konlite | MPN | KPVMW15MCHLV |
| Warranty | Limited 5 Years | UPC | |
| Input Voltage | 277-480V | Beam | 106° |
| Input Wattage | 155W/130W/115W | Equal To | 600W MH or 6x54-T5/8x54-T5 |
| Delivered Lumens | 22,750lm/29,560lm/17,750lm | CRI | ≥80 |
| Efficacy | 150 LM/W | Available CCT | 5000K/4000K |
| Rated Life | >50,000 hrs | Power Factor | ≥0.95 |
| THD | ≤15% | IP Rating | N/A |
| Dimmable | 0-10V(Dimmer NOT included, Separate Wiring Required) | Mounting | Suspension Chain, Surface, Pendant |
| Operating Temperature | -40° F to 122° F | Dimensions | 14''X11.5''X2.1'' |
| Certifications | UL, Dry Locations, DLC Premium | Weight | 8 Lbs |
Occupancy Sensor Specification
| Brand | Haisen | MPN | HD09VCR-PH / HD09VCR-PHB ( Network Lighting Controls ) |
| Control | On/off / 1-10V Dimming | Setting tools | Rotating Switch or Remote Control (HD05R). For Network Lighting Controls (NLC), controlled with “Haisen Blue” APP at iOS or Android smartphones |
| Detection area | 25%/50%/75%/100% (R.C) | Hold time | 5s/1min/5min/10min (Rotating Switch) 5s/30s/1min/3min/5min/10min/20min/30min (R.C) |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ (R.C) | Stand-by dimming level | 0%/10%/30%/50% (Rotating Switch) 10%/20%/30%/50% (R.C) |
| Input Range | 12VDC | Daylight threshold | Disable / 11 settings from 2Lux to 400Lux (R.C) |
| Operating Voltage | 10.5-15V DC | Detection range | Max. 45.92ft |
| Mounting height | Max. 39.37 ft | IP rating | IP65 |
*Stand-By Period need to be set to 0s while using with dimmer switch.
Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
