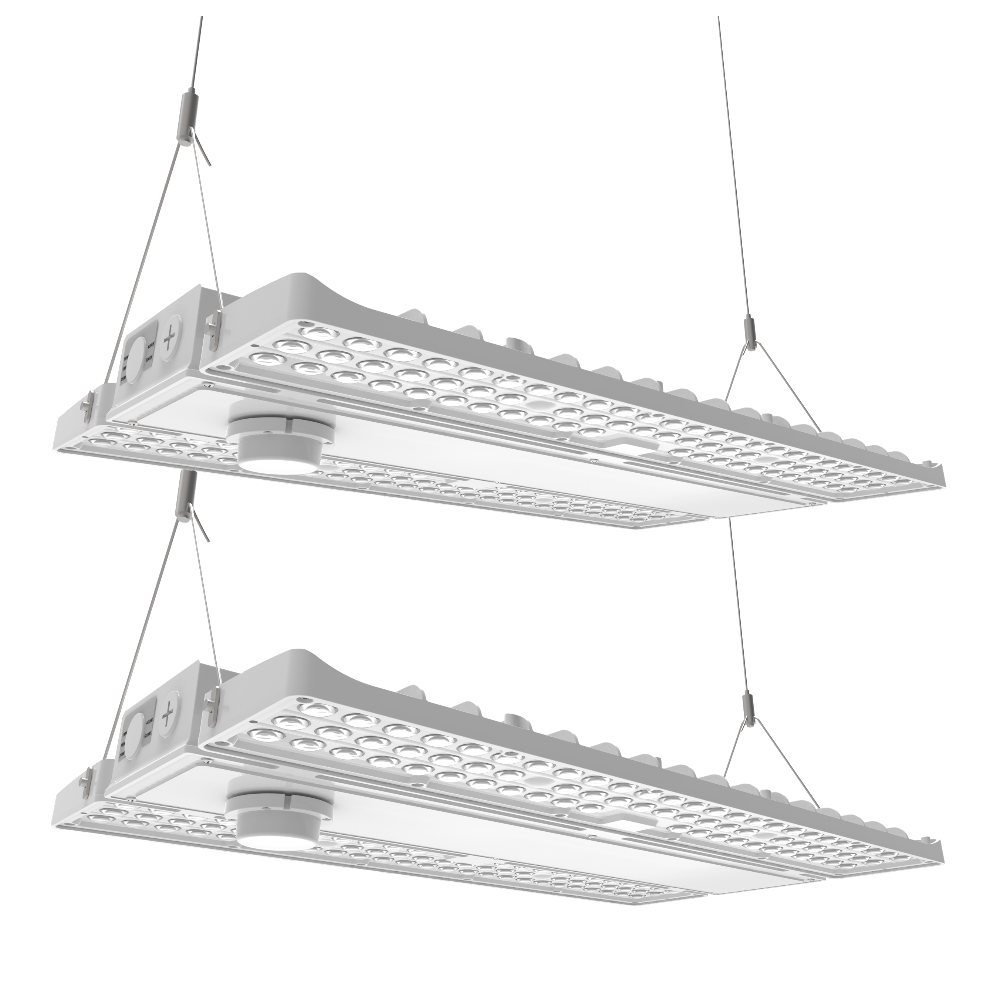

Konlite LED Linear High Bay Light - PAVO Series - 130W-210W - Wattage Selectable - Up to 31,290lm - 120-277V - 5000K - 400W-600W Equal - Pack of 2

Konlite SKU: KPVMW2150KLV-2 SEARCH CODE: 10-0307

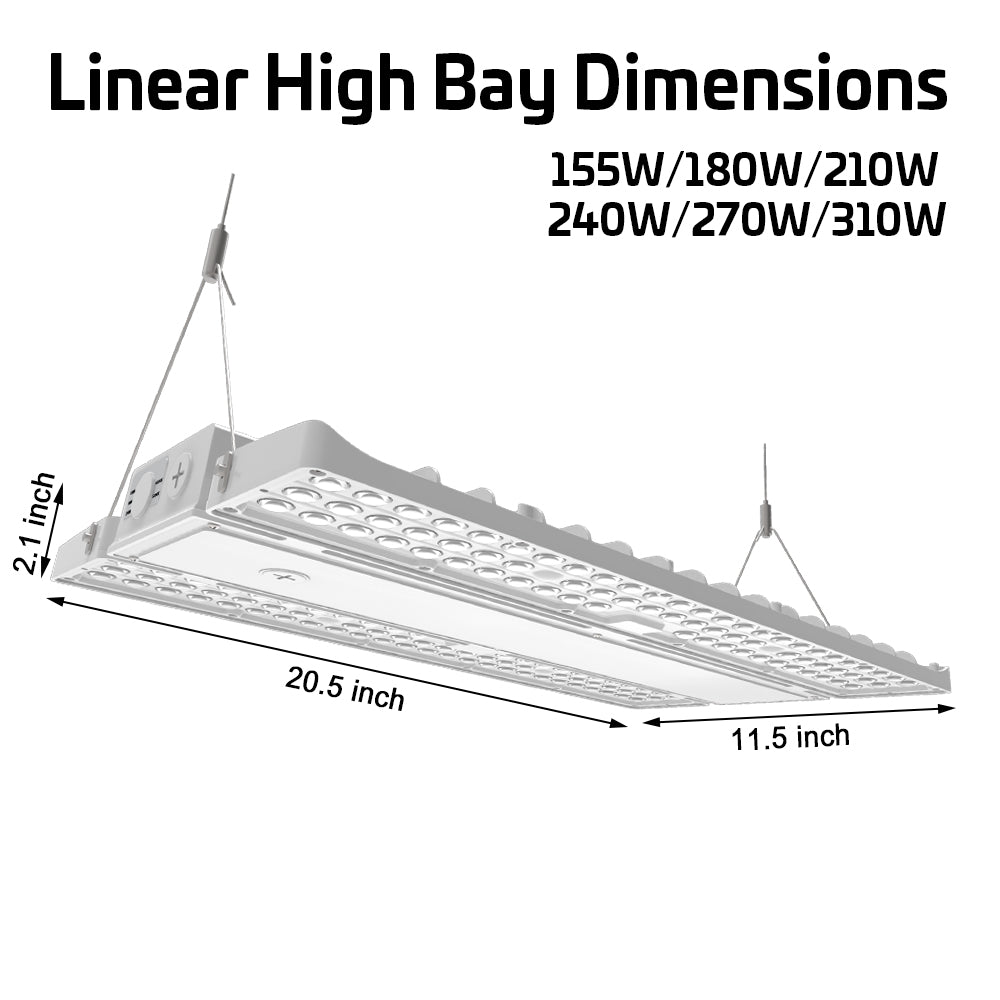

  • Dimensions: 20.5"L x 11.5"W x 2.1"H
  • 0-10V Dimmable
  • Certificates: UL, DLC Premium 5.1
  • CCT: 5000K Daylight White
  • 5 Years Warranty
  • Replaces 400-600W HID/MH
  • Lumens Selectable:
    • 210w = 31,290 (Preset)
    • 180w = 27,360
    • 130w = 20,000
Regular price$329.95 Sale price$234.65
  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.

This Konlite Pavo series compact LED Linear High Bay is ideal for new construction or replacement of 600W HID, 4x54 T5 or 8x54 T5 Lamp fixture. Delivers top energy savings and maintenance free durability for a wide range of applications.

  • Die-cast aluminum housing, provides a sturdy structure and excellent thermal management
  • Compact design makes handling easier and quick installation
  • Whole series offer wattage selectable flexibility, can be on-field selected
  • Plug-in motion sensor easy and fast install
  • DLC Premium certified qualifying for maximum rebates where applicable
What's in the box
1 Lighting Fixture - 1 Suspension Chain -1 Installation Guide

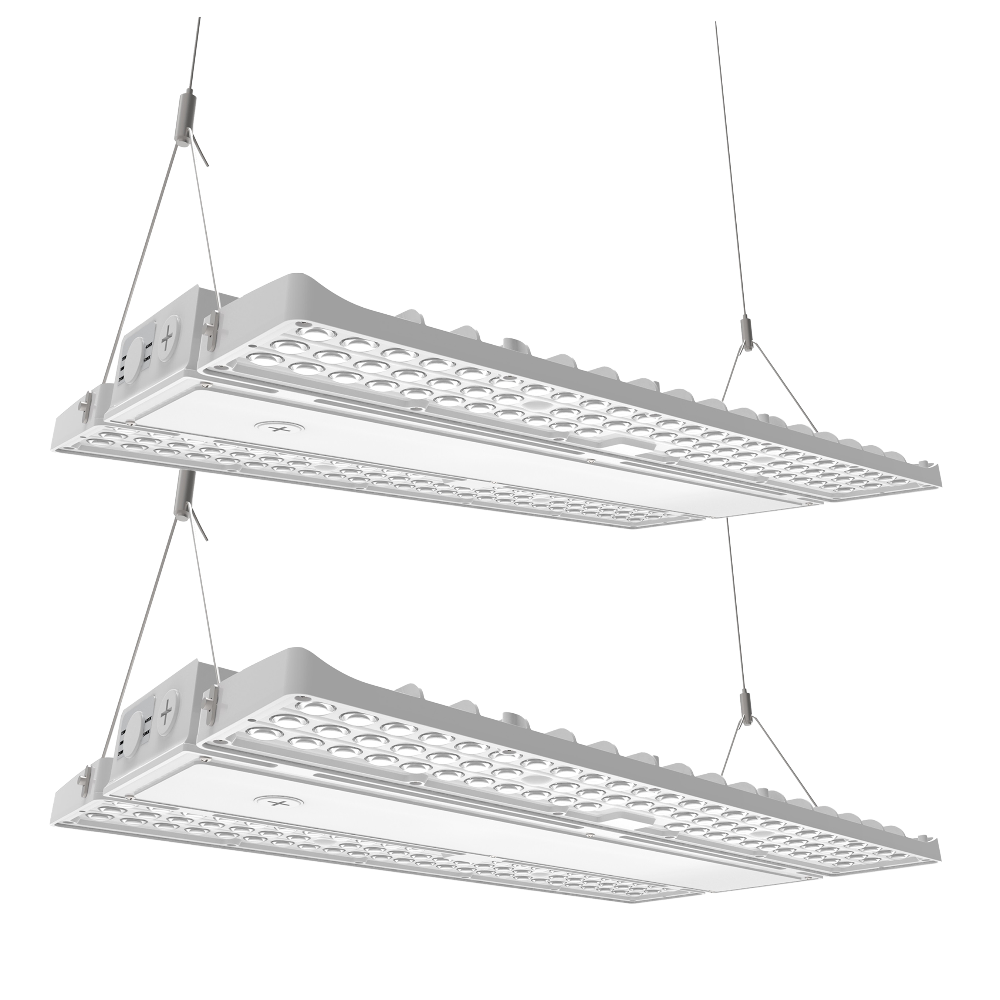

Konlite PAVO Series LED High Bay Light - 2 Pack
Konlite LED Linear High Bay Light - PAVO Series - 130W-210W - Wattage Selectable - Up to 31,290lm - 120-277V - 5000K - 400W-600W Equal - Pack of 2
Regular price $329.95 Sale price $234.65
What's in the box
1 Lighting Fixture - 1 Suspension Chain -1 Installation Guide

Product Overview

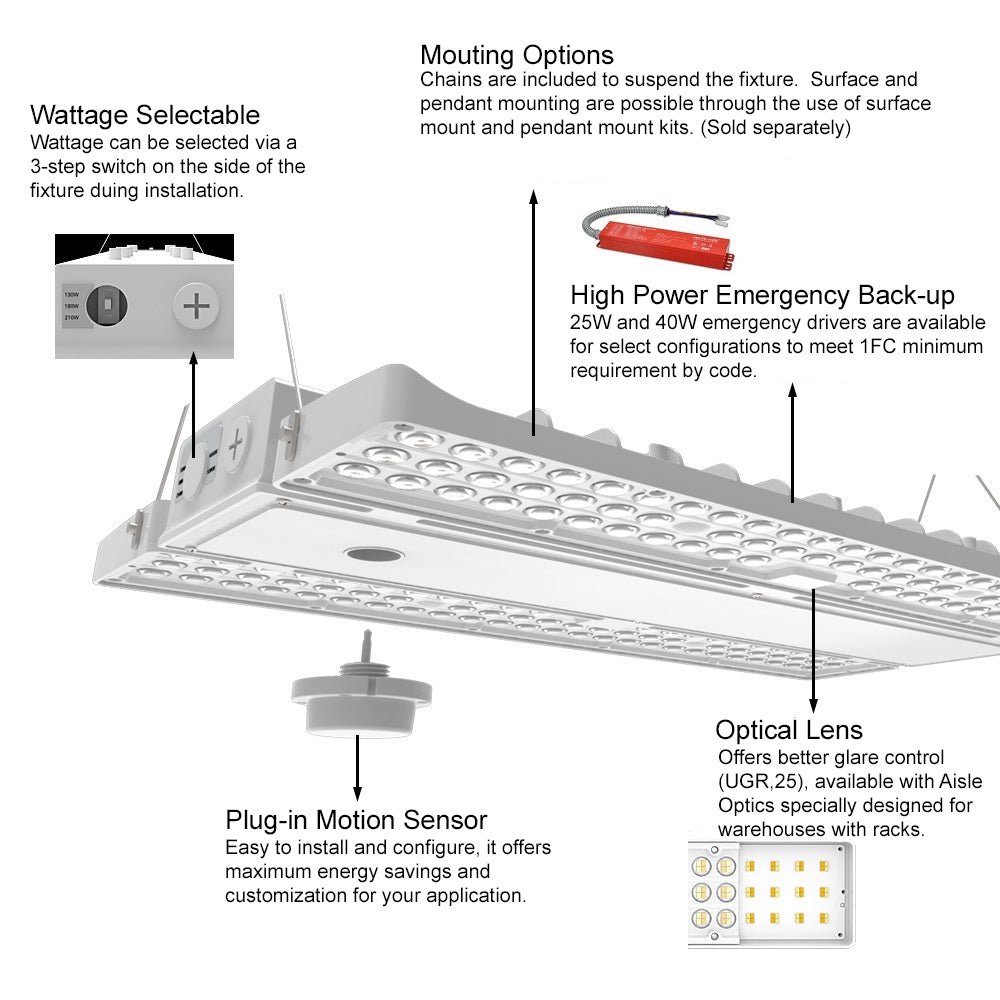

Konlite PAVO series LED Linear High Bay Light offers budget-oriented design by utilizing a compact yet strong housing while still offering industry leading performance. The compact design also makes handling easier for a quicker installation. The PAVO series offers wattage selectable flexibility, which can be adjusted on the fly via a 3-step switch located on the side of the fixture.

130W/180W/210W selectable, 20,000 to 31,000 lumens, 120-277V, 5000K Commercial Bright White

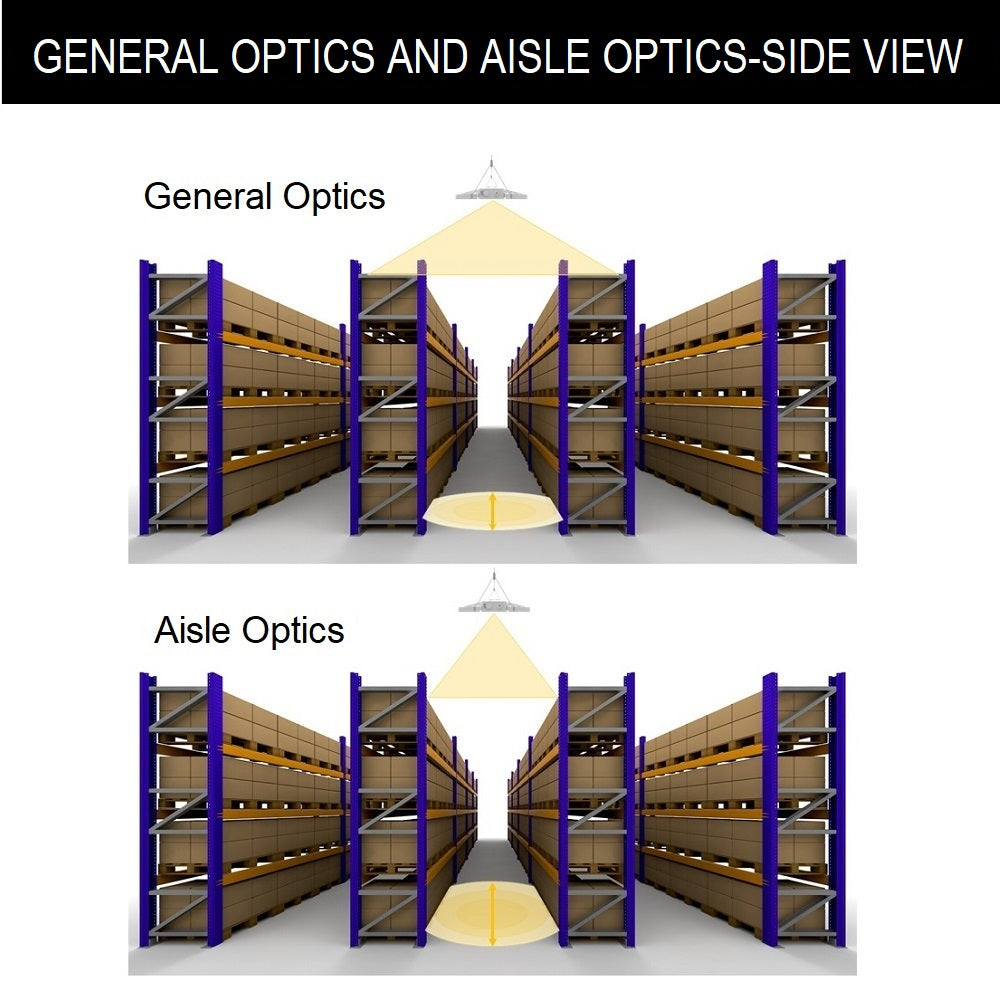

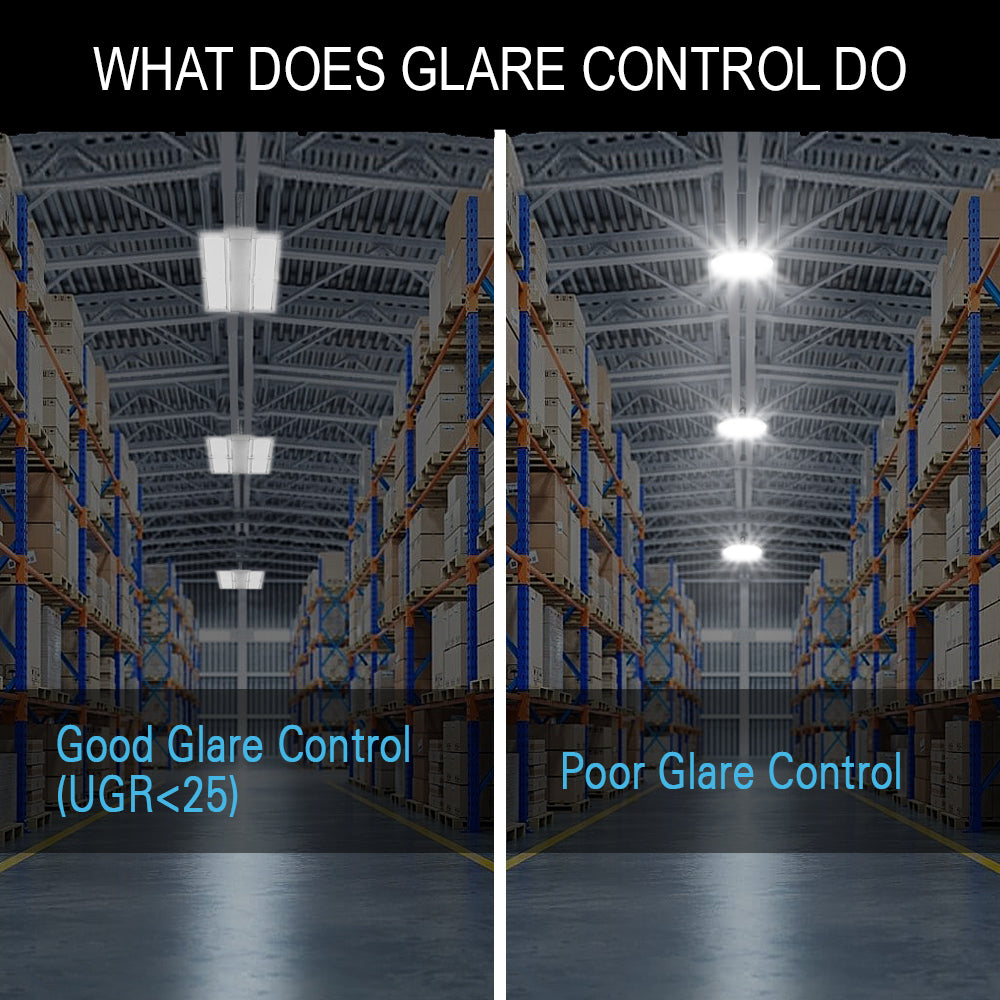

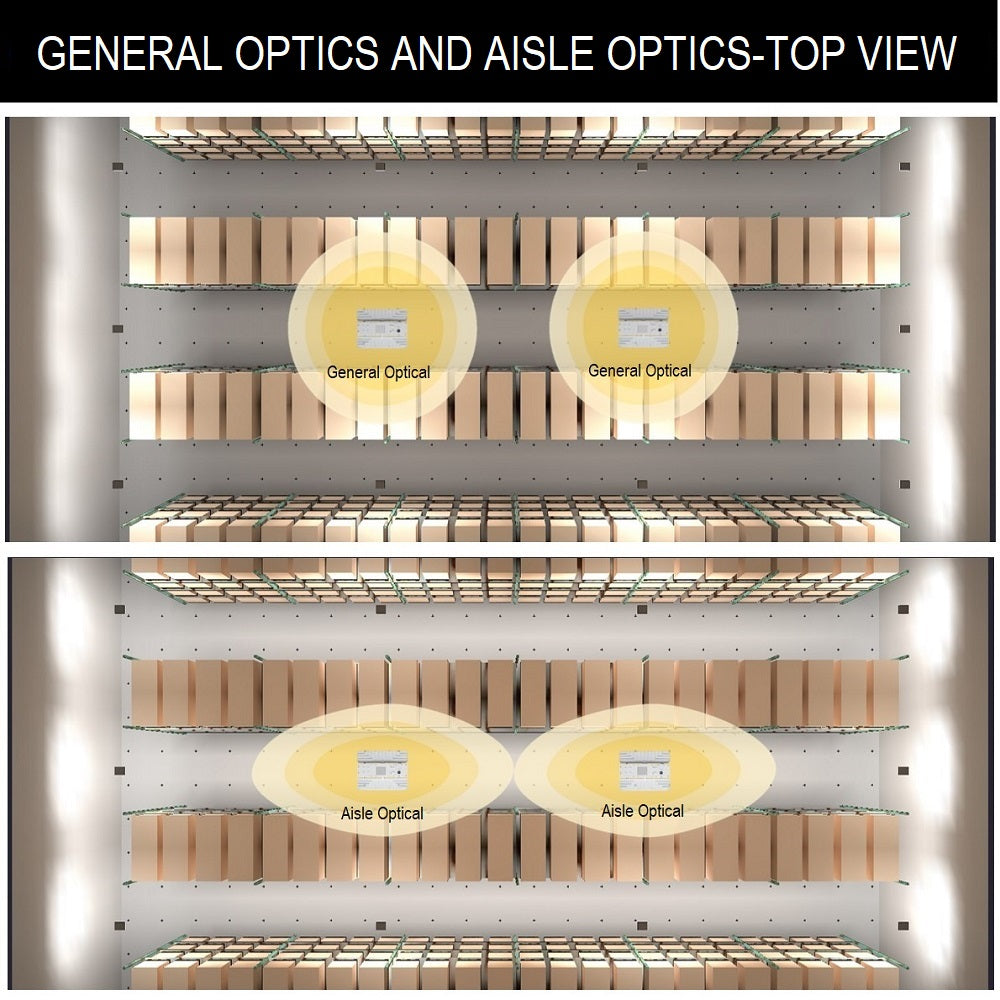

Equipped with an optical lens instead of an ordinary diffuser, it offers better glare control and higher efficacy. For warehouse application with tall racks, the optional Aisle Optic is an ideal solution to maximize light usage efficiency and greater energy savings.

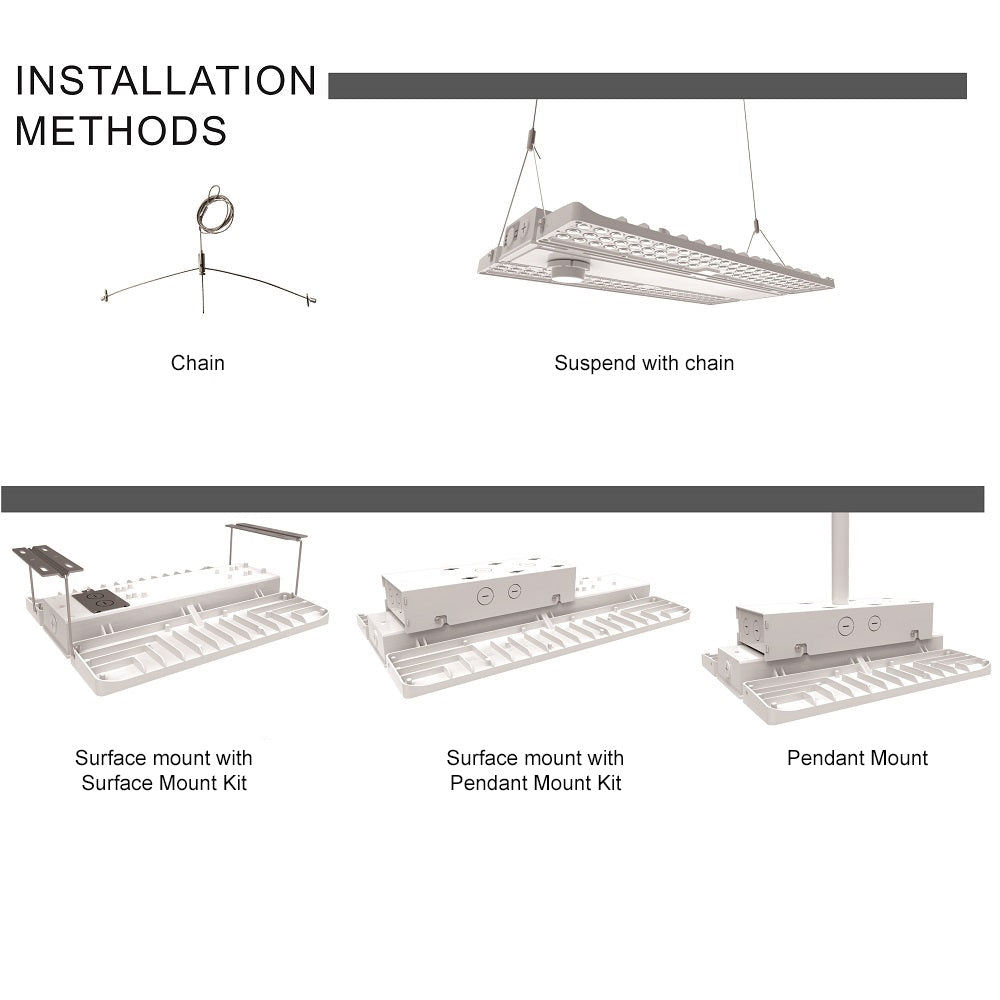

Suspension chains come standard, optional Surface Mount and Pendant Mount are also available.

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity.  Optional remote control is required to program the motion sensor.

Applications

•Warehouses •Workshops
•Convention Centers •Low Bays
•Storage Facilities •Distribution Centers
•Factories •Supermarkets
•Retails •Gymnasiums
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumRoHS compliance FCC certification

Specification

BrandKonliteMPNKPVMW2150KLV
WarrantyLimited 5 YearsUPC
Input Voltage120-277VBeam106°
Input Wattage130W/180W/210WEqual To600W MH or 6x54-T5/8x54-T5
Delivered Lumens14,040lm/16,275lm/20,020lmCRI≥80
EfficacyUp to 156 LM/WAvailable CCT 5000K
Rated Life>50,000 hrsPower Factor≥0.95
THD≤15%IP RatingIP54
Dimmable0-10VMountingSuspension Chain, Surface, Pendant
Operating Temperature-40° F to 122° FDimensions20.5''X11.5''X2.1''
CertificationsUL, Dry Locations, DLC PremiumWeight6 Lbs

Accessories

Remote Control For Konlite PIR Motion Sensor
Remote Control For Konlite PIR Motion Sensor
SKU: RC-100 SEARCH CODE: 10-0002
Sale price$29.95
Aisle Lens for Pavo series linear high bay size i and iii
Sale priceFrom $15.00
surface mounting kits for konlite pavo series led linear high bay
Sale price$12.00
Pendant Mounting box for konlite pavo series led linear high bay
Sale price$18.65

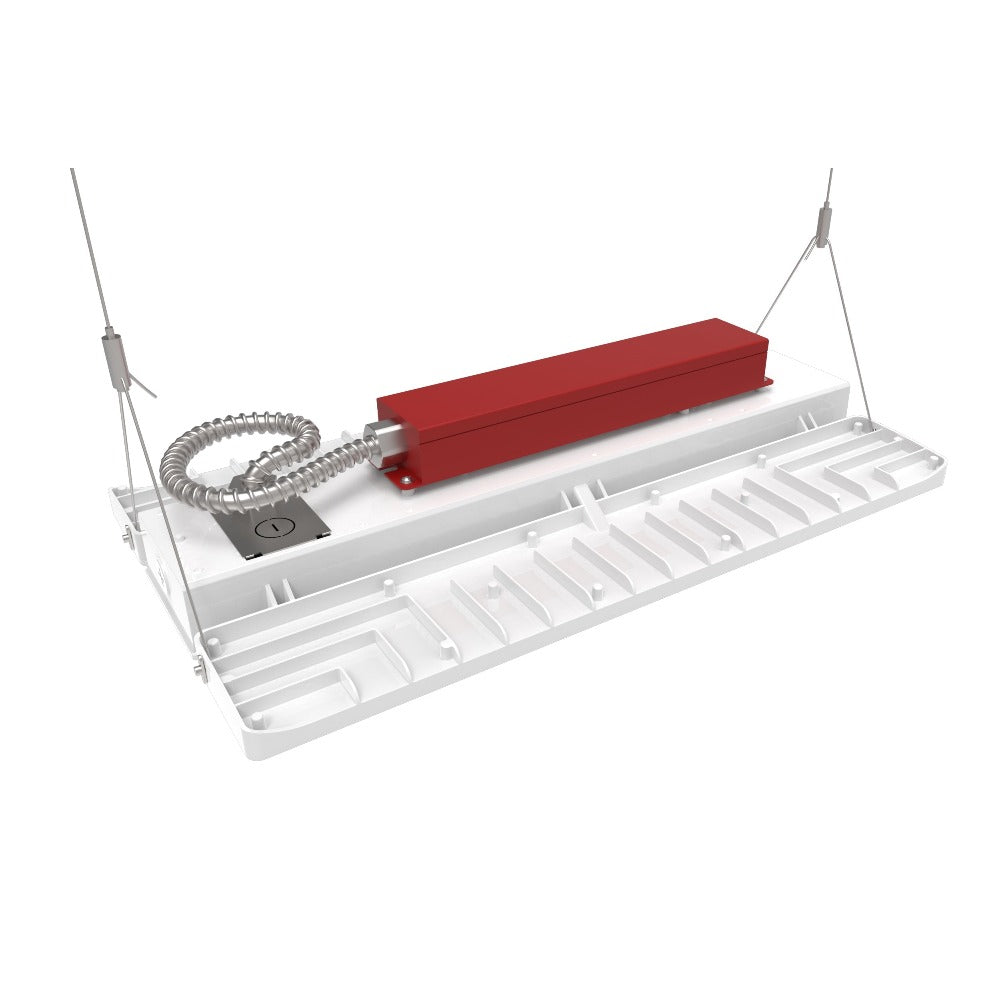

emergency battery backup for LED linear high bay light
