EcoMAX Round UFO LED High Bay Light - 240W/200W/150W - 120-277V - 37,450 Lumens - 5000K/4000K - 1000W Equal
- Replaces 400-1000 Watt Metal Halide
0-10V Dimmable
CRI>80
- 5 Ft Pigtail Power Cord
Certificates: UL, DLC Premium 5.1,NLC
5 Years Warranty
Watts and Lumens Selectable:
240w = 36,240 (Preset)
200w = 30,800
150w = 25,300
- Replaces 400-1000 Watt Metal Halide
0-10V Dimmable
CRI>80
- 5 Ft Pigtail Power Cord
Certificates: UL, DLC Premium 5.1,NLC
5 Years Warranty
Watts and Lumens Selectable:
240w = 36,240 (Preset)
200w = 30,800
150w = 25,300

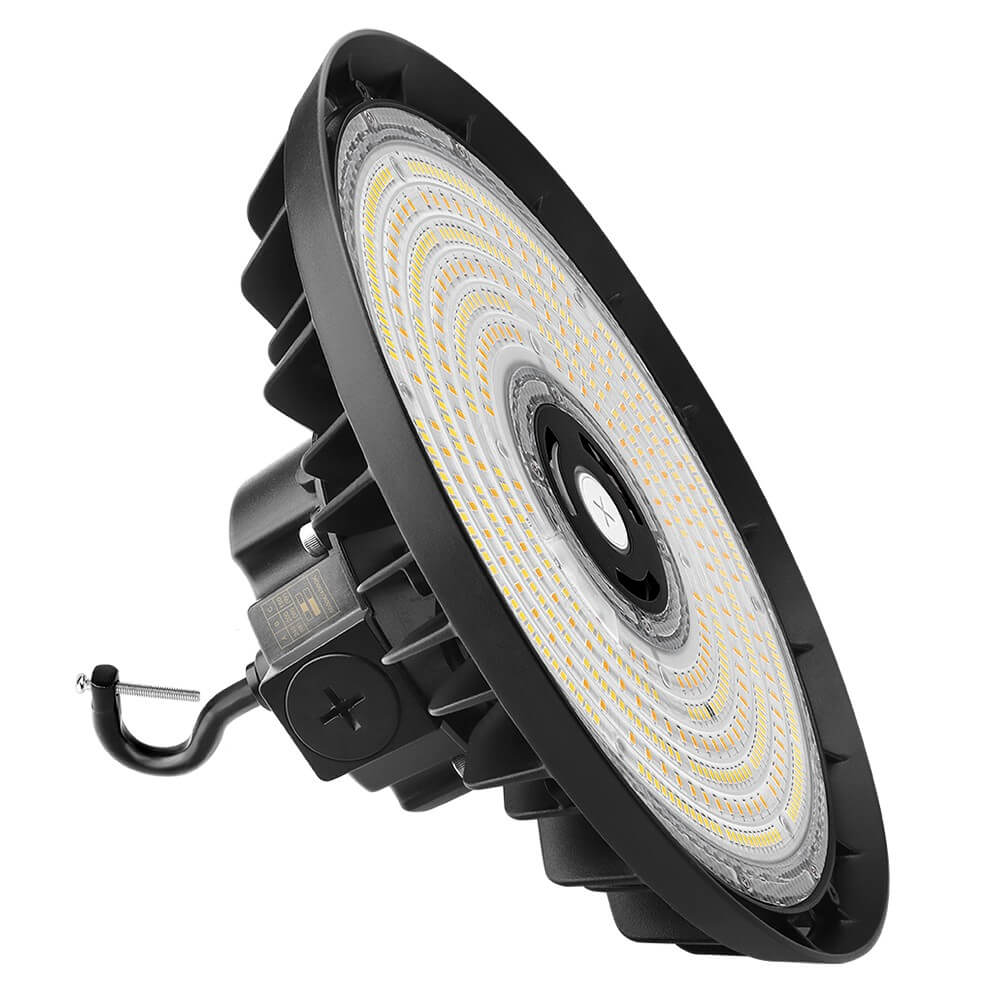

This high-performance Konlite EcoMAX LED High Bay light is ideal for new construction or replacement of 1000W. Delivers top energy savings and maintenance free durability for a wide range of applications.
- Designed for quick, easy installation

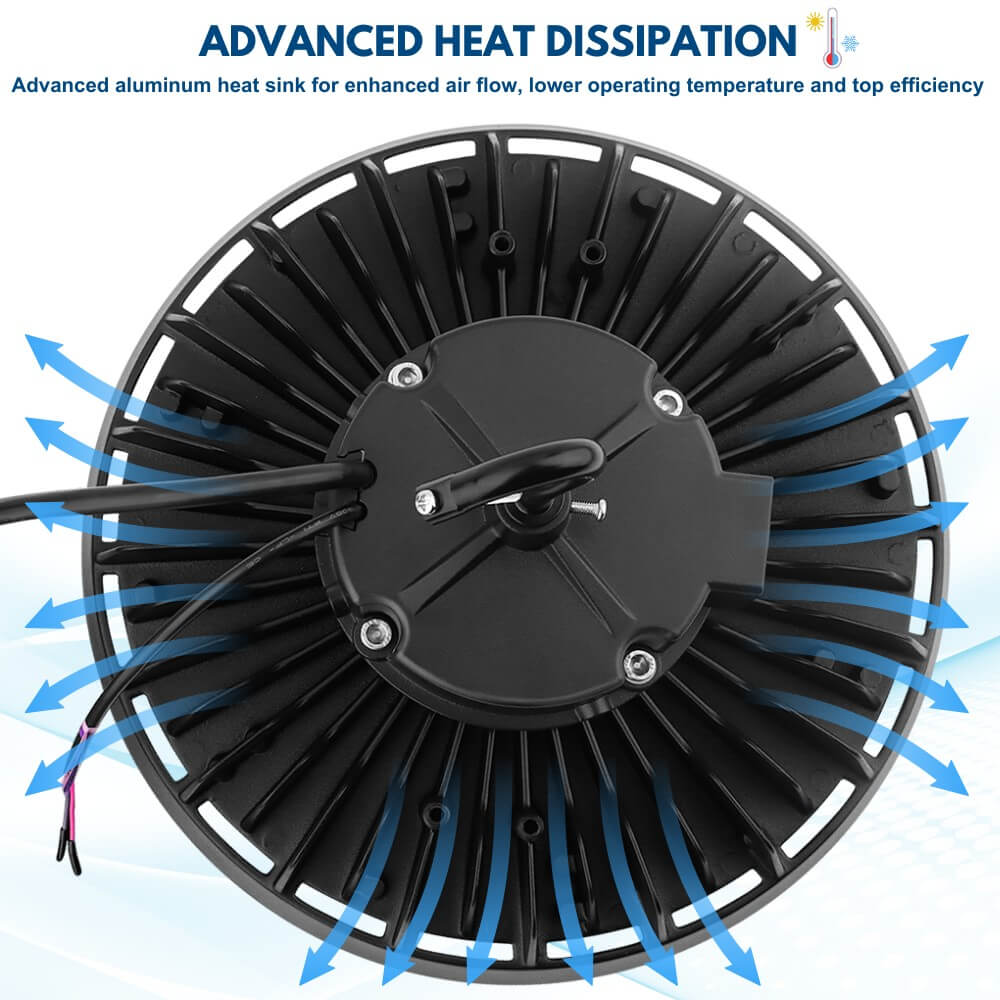

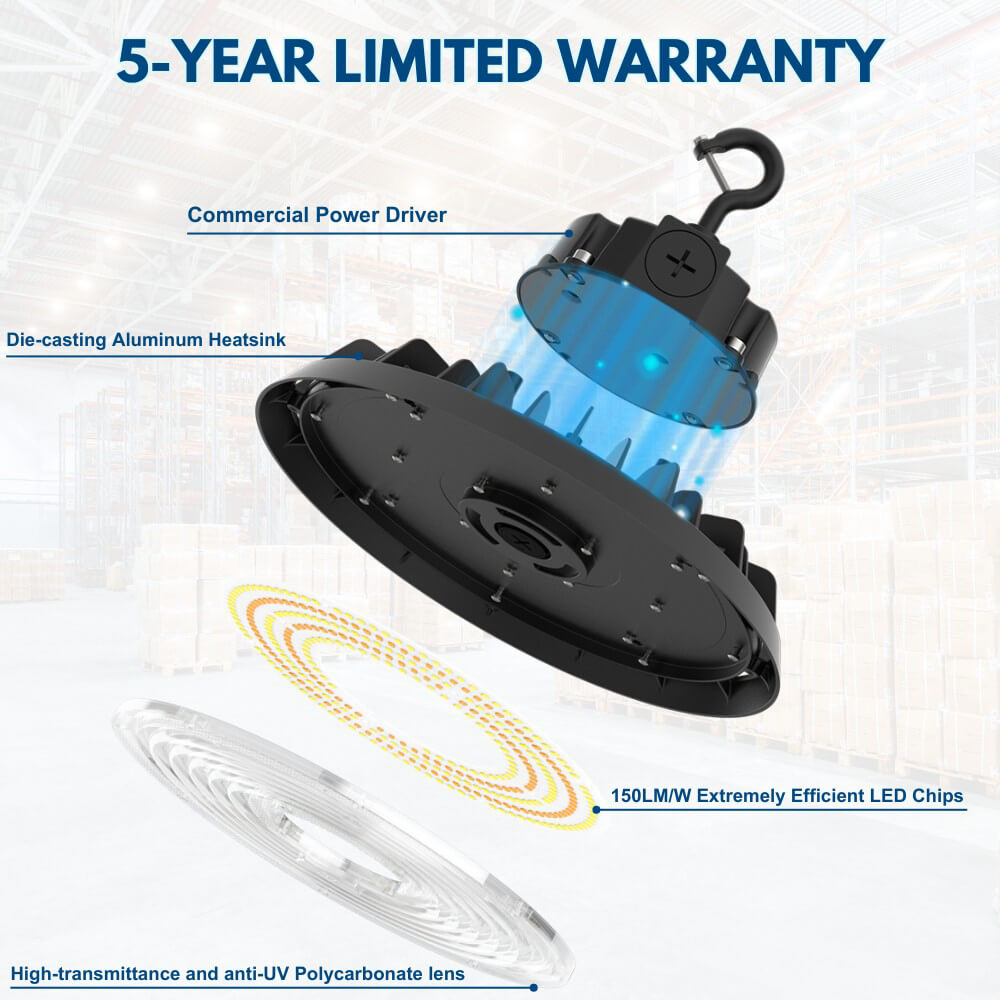

- Advanced aluminum heat sink for enhanced air flow, lower operating temperature
- Increase energy savings with optional integrated PIR sensor.
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview

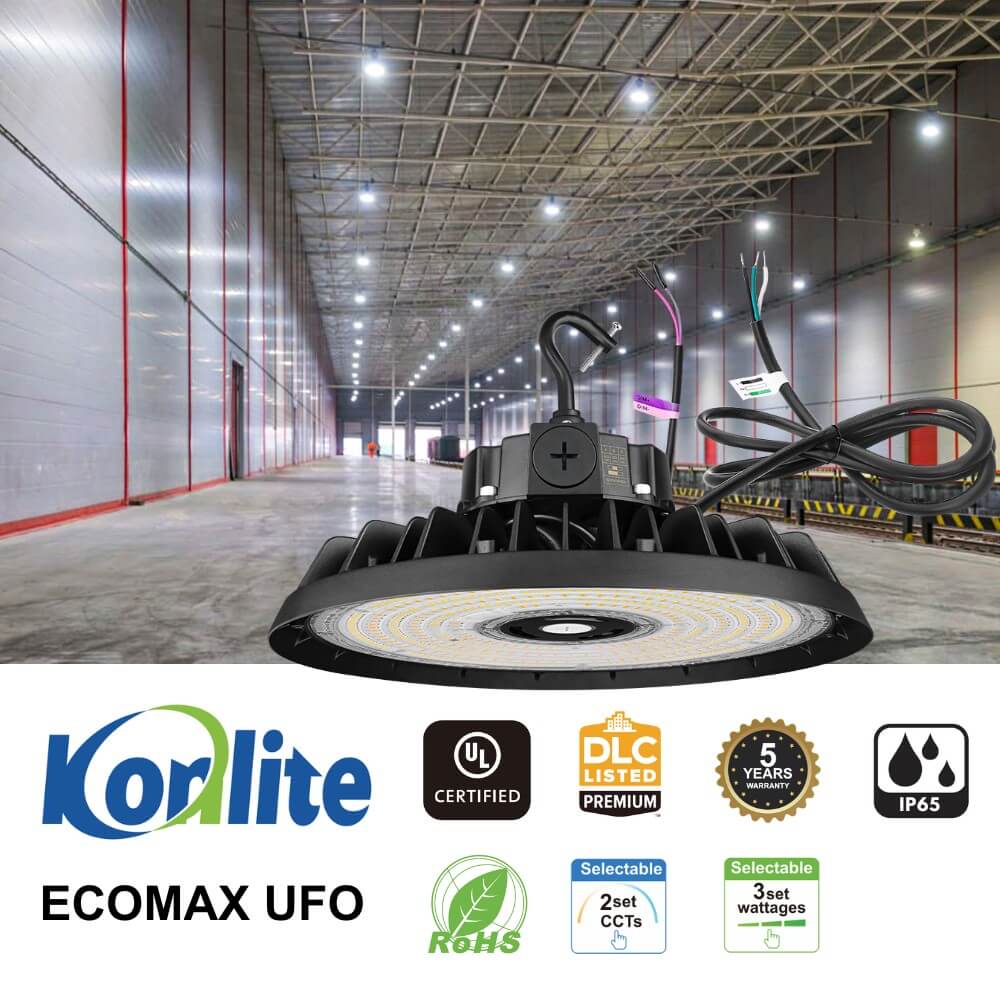

Introducing the EcoMax Round High Bay Light—your ultimate solution for energy-efficient lighting that reduces operating costs and enhances your space. Perfect for retrofits or new construction, this compact, budget-friendly design is a contractor's top choice.

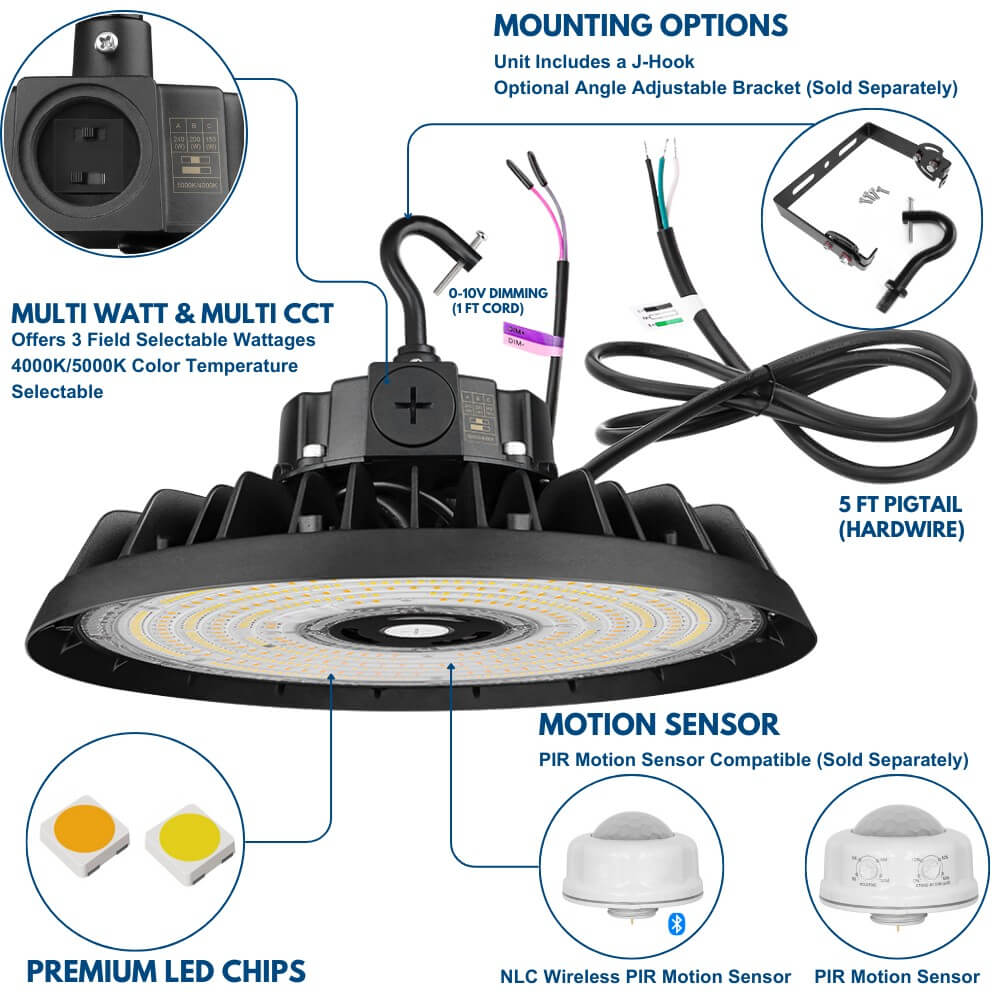

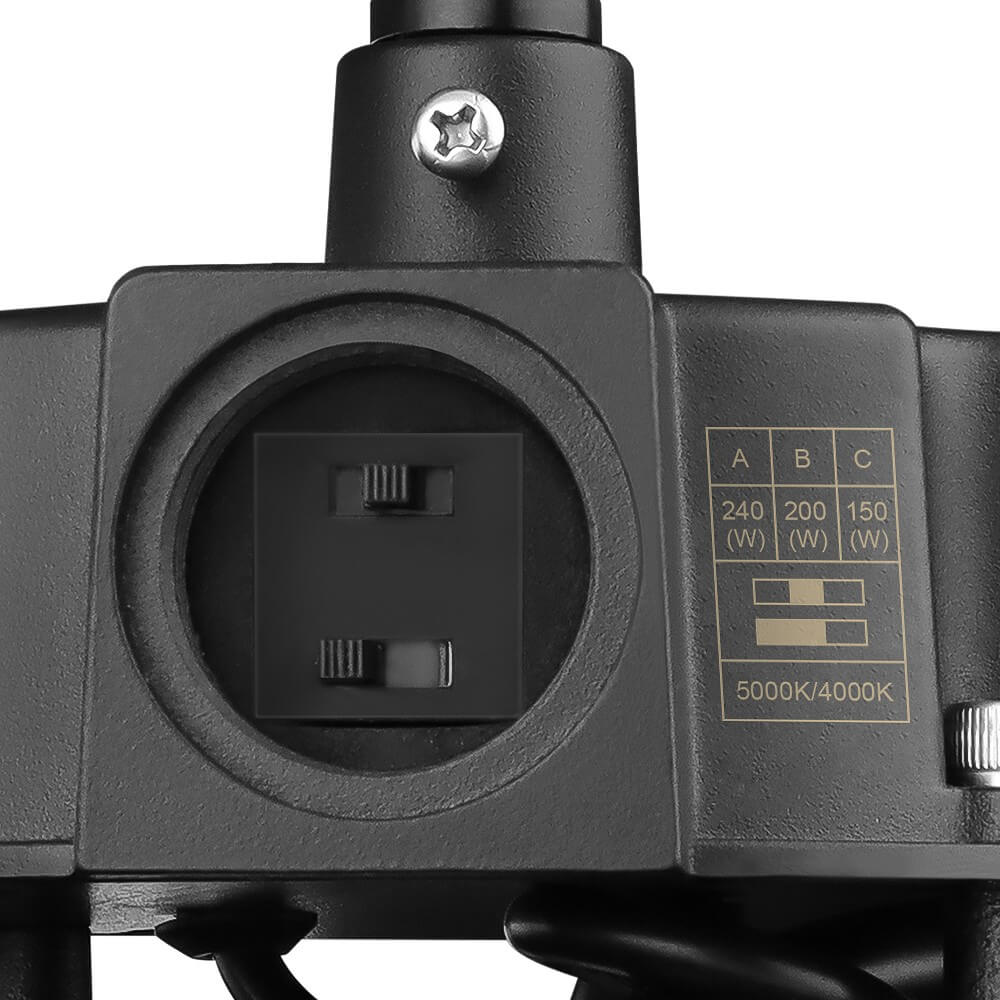

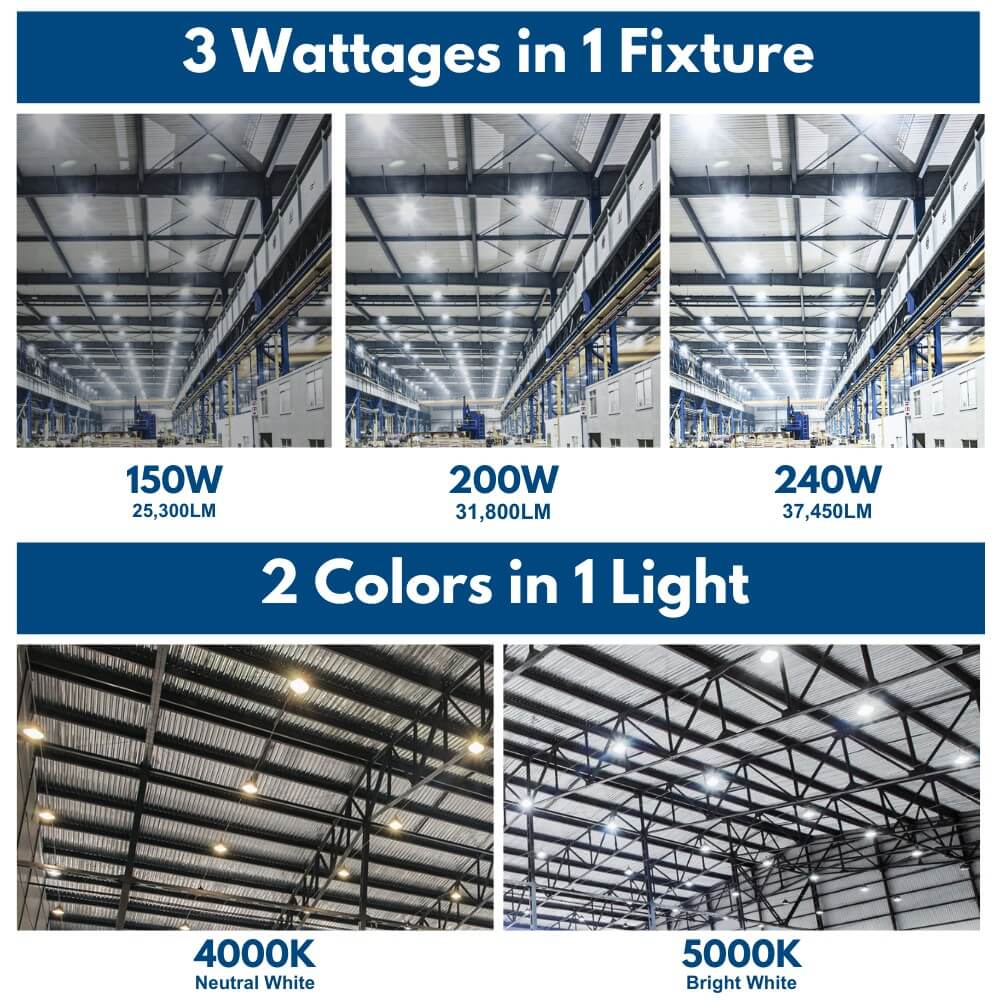

With selectable wattage and CCT options, you eliminate the risk of choosing the wrong brightness or color temperature. Whether you need low or high bay lighting, the EcoMax allows you to select the optimal brightness and color temperature (5000K or 4000K) to suit your space, boosting productivity and safety. Ideal for multi-zone facilities, it offers three brightness settings ( @5000K ): 150W (24,500 lumens), 200W (30,800 lumens), and 240W (36,240 lumens), preset at 240W and 5000K for convenience.

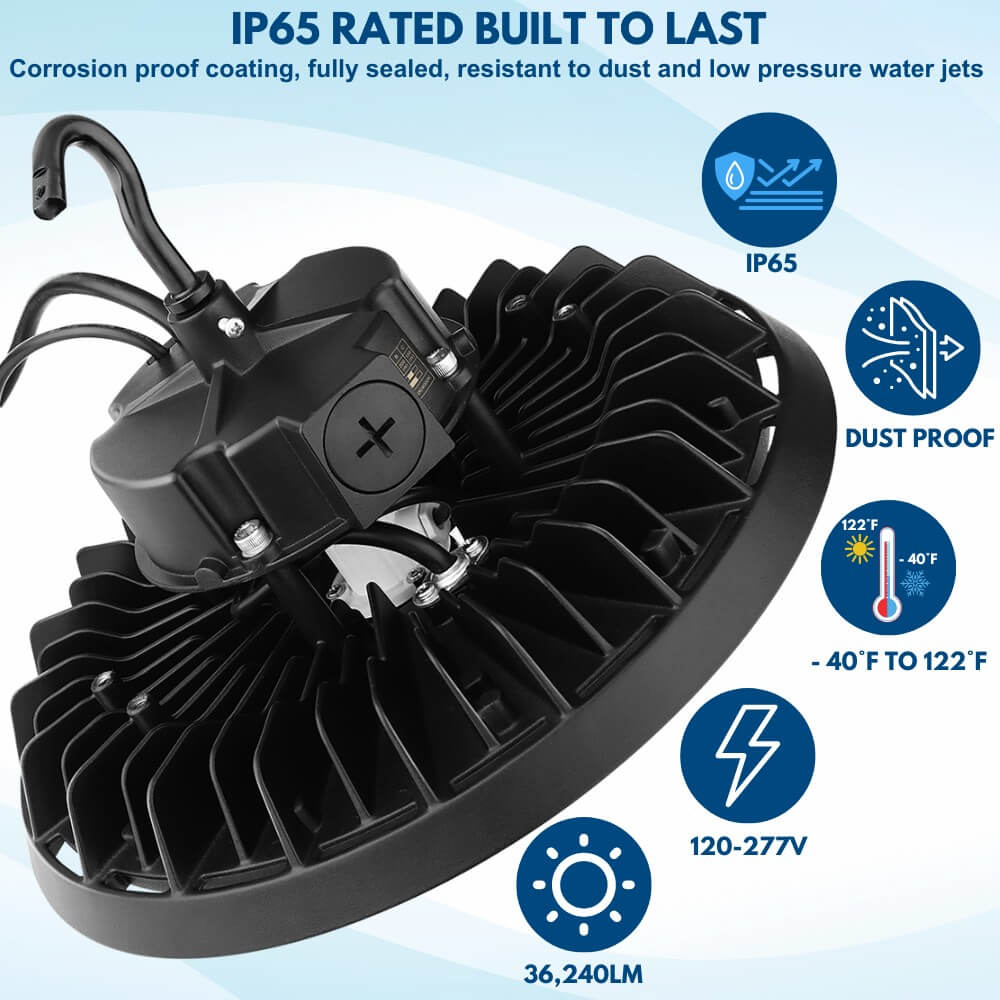

The EcoMax delivers uniform illumination with excellent color rendering compared to traditional HID/HPS systems. You can choose between 5000K for bright, cool light or 4000K for a warmer ambiance. Built with 4K surge protection, an 5’ power cord, 0-10V dimming, and an IP65 rating, it is fully sealed against dust and moisture, ensuring durability and long-term performance.

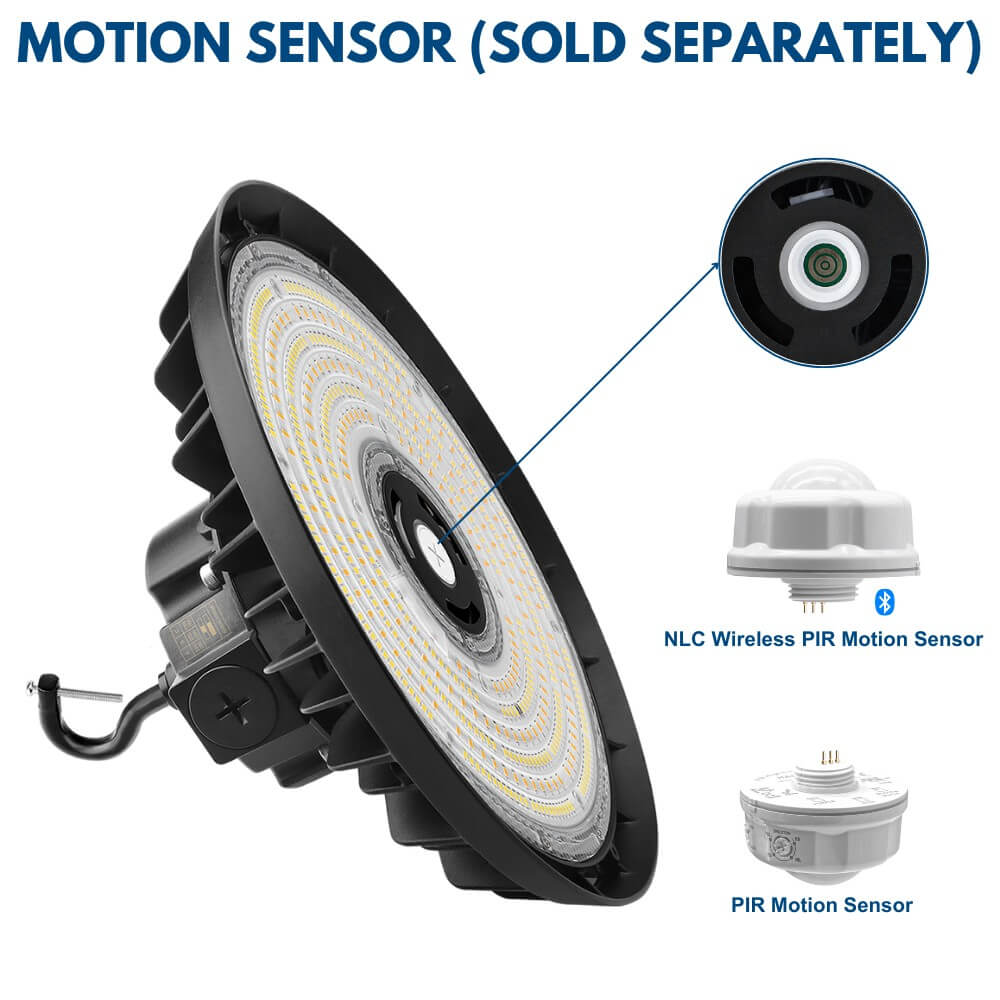

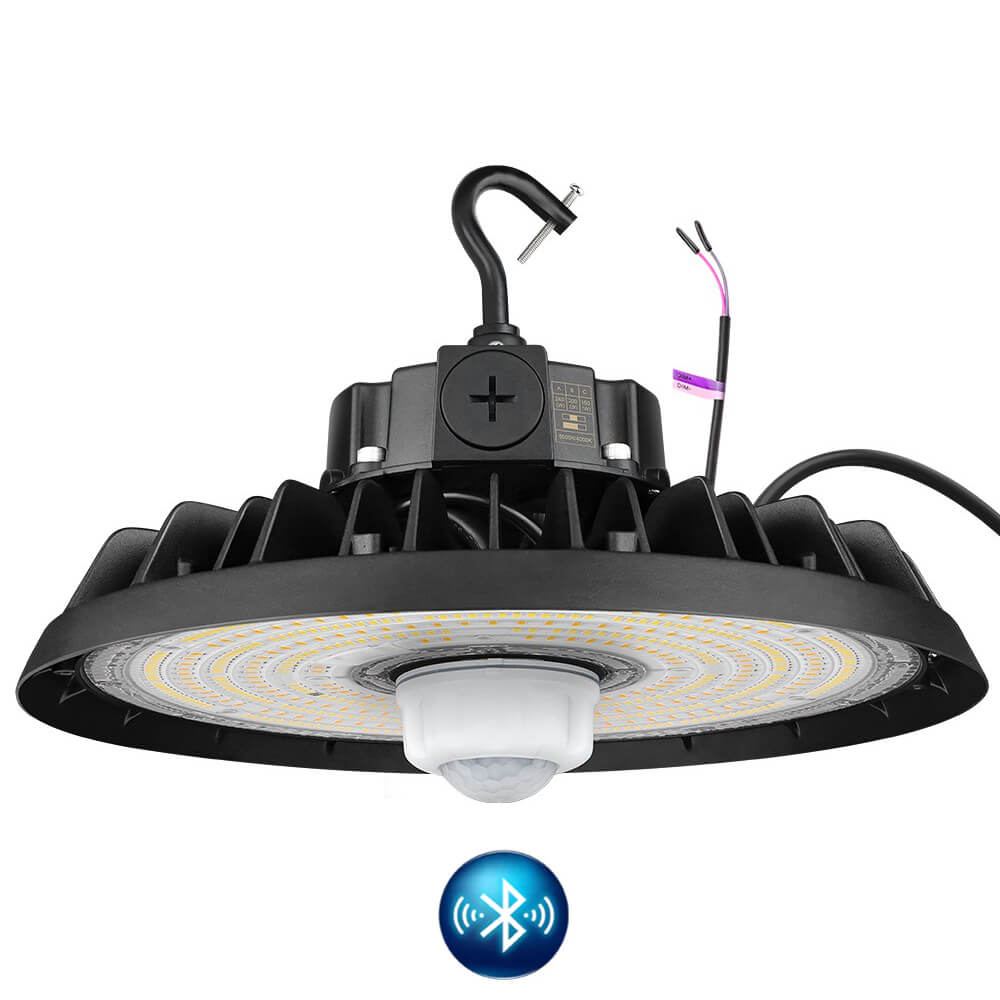

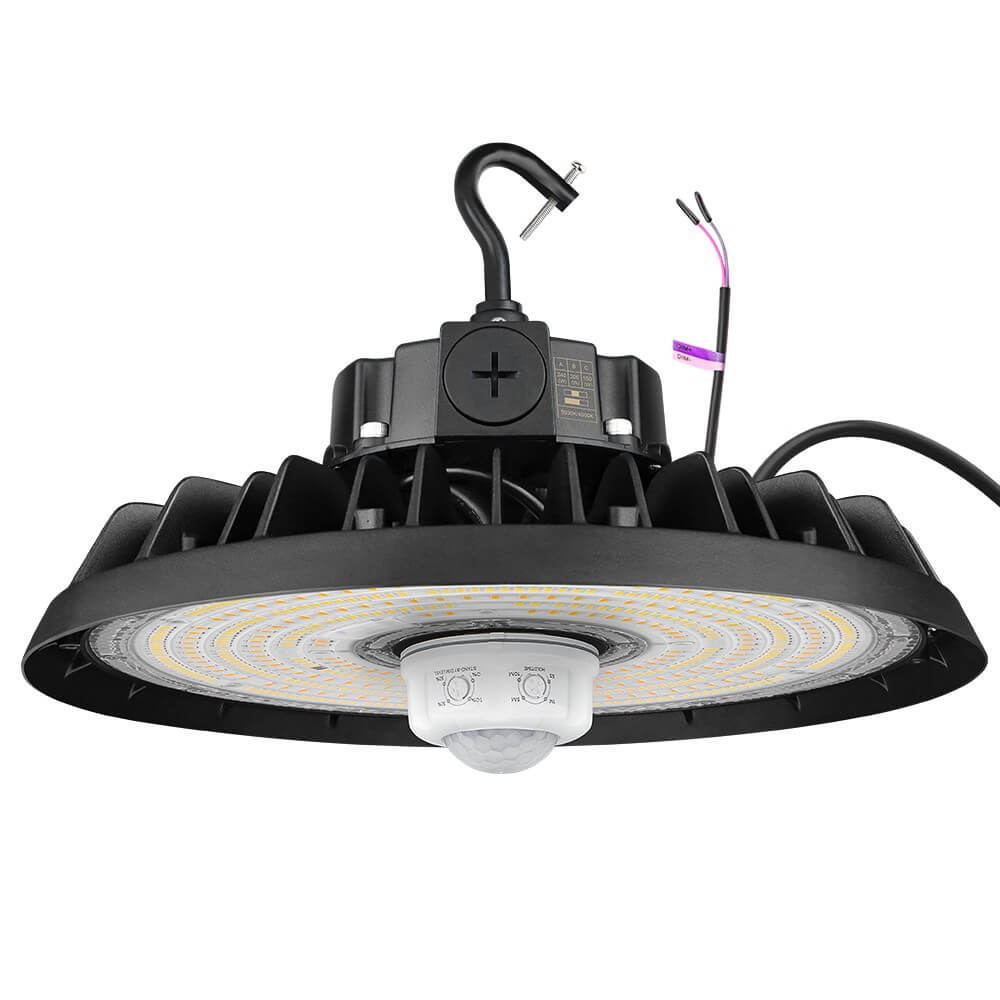

Certified to meet DLC 5.1 Premium, DLC NLC, and UL standards, and backed by a 5-year warranty, the EcoMax guarantees top-tier quality and eligibility for rebates. An optional integrated PIR sensor allows you to control brightness, sensitivity, daylight harvesting, and standby dimming levels via remote control.
For even greater control, upgrade to the Haisen Blue Network Lighting Controls (NLC). This Bluetooth system offers advanced flexibility and ease of use, perfect for businesses and facilities of all sizes. Simply pair it with EcoMax to enjoy a smooth and efficient control experience.
Choose the EcoMax Round High Bay Light for unparalleled energy savings, long-lasting durability, and flexible lighting options, making it ideal for a wide range of applications.
See similar 150-watt and 320-watt Highbay versions.
Applications
| •Warehouses | •Workshops |
| •Convention Centers | •High Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retails | •Gymnasiums |
Specification
| Brand | Konlite | MPN | KEM240SMCLVGB |
| Warranty | Limited 5 Years | UPC | 659675186856 |
| Input Voltage | 120-277V | Beam | 120° |
| Input Wattage | 240W/200W/150W | Equal To | 1000W |
| Delivered Lumens | 37,450 Max. | CRI | >80 |
| Efficacy | 150 LM/W | Available CCT | 5000K/4000K |
| Rated Life | >50,000 hrs | Power Factor | >0.88 |
| THD | <20% | IP Rating | IP66 |
| Dimmable | 0-10V | Controls | optional PIR Motion Sensor |

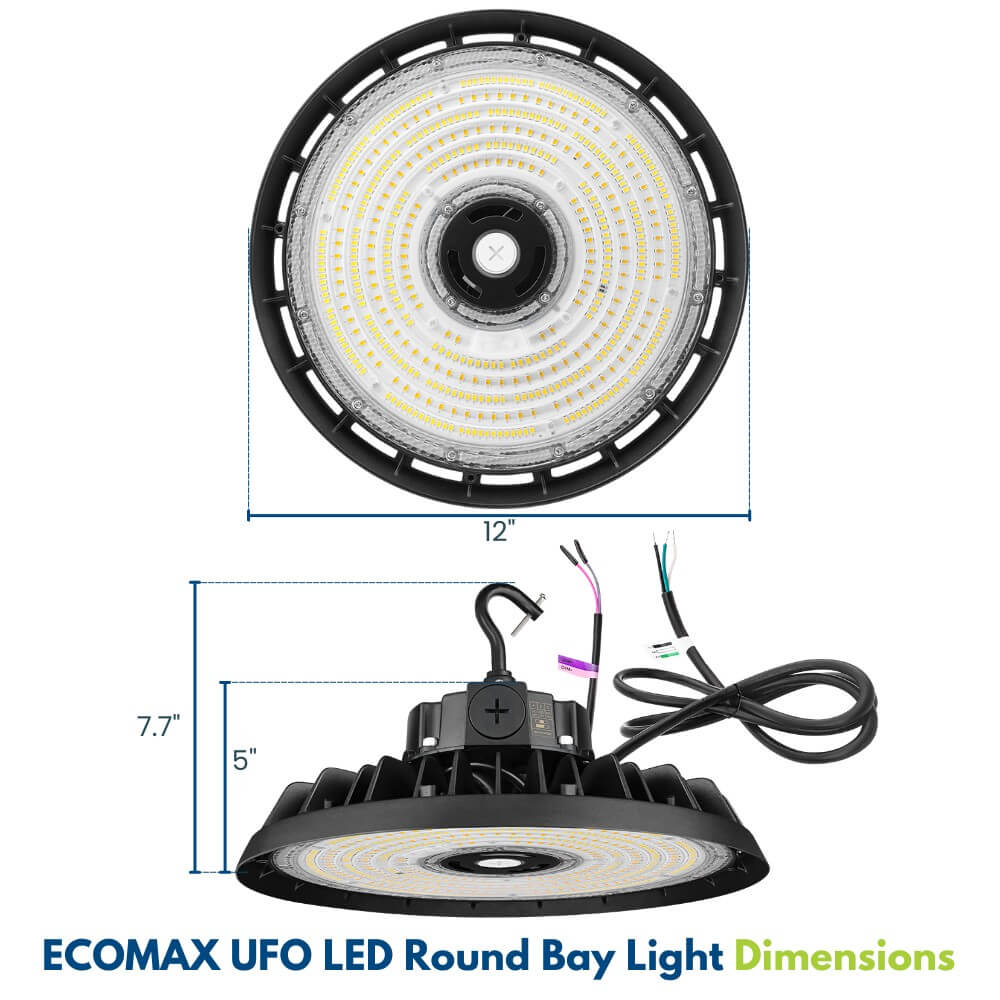

| Operating Temperature | -40F to 122 F | Diameter | 12.95" |
| Certifications | UL, Damp Locations, DLC Premium | Weight | 10.5 Lbs |
Motion Sensor Specification
| Brand | Haisen | MPN | HD09VR-PH/HD09VR-PHB (Network Lighting Controls ) |
| Control | On/off / 1-10V Dimming | Setting tool | Rotating Switch or Remote Control (HD05R). For Network Lighting Controls (NLC), controlled with “Haisen Blue” APP at iOS or Android smartphones |
| Detection area | 25%/50%/75%/100% | Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ | Stand-by dimming level | 10%/20%/30%/50% |
| Motion detection | 0.5~1.5m/s | Daylight threshold | Disable / 8 settings from 2Lux to 400Lux |
| Mounting height | Max. 39ft | Detection range | Max. 32.8ft |
| Operating Voltage | 10.5-15V DC | IP rating | IP65 |
| Current | <15mA | Warranty | 3 Years |
*Stand-By Period need to be set to 0s while using with dimmer switch.
*Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
