Product Overview

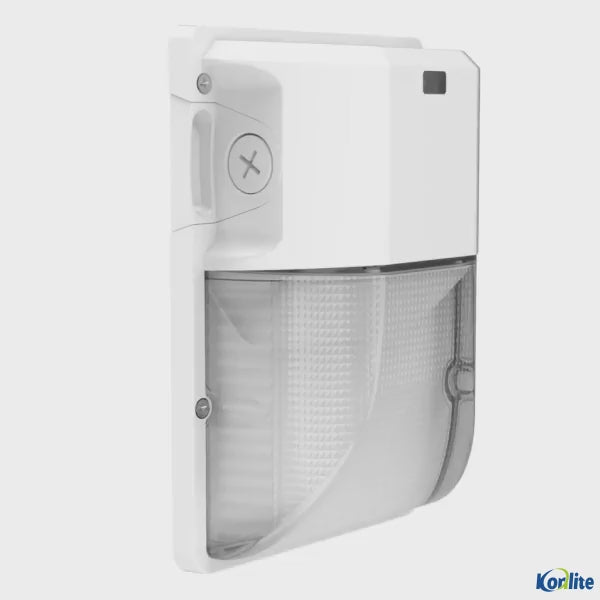

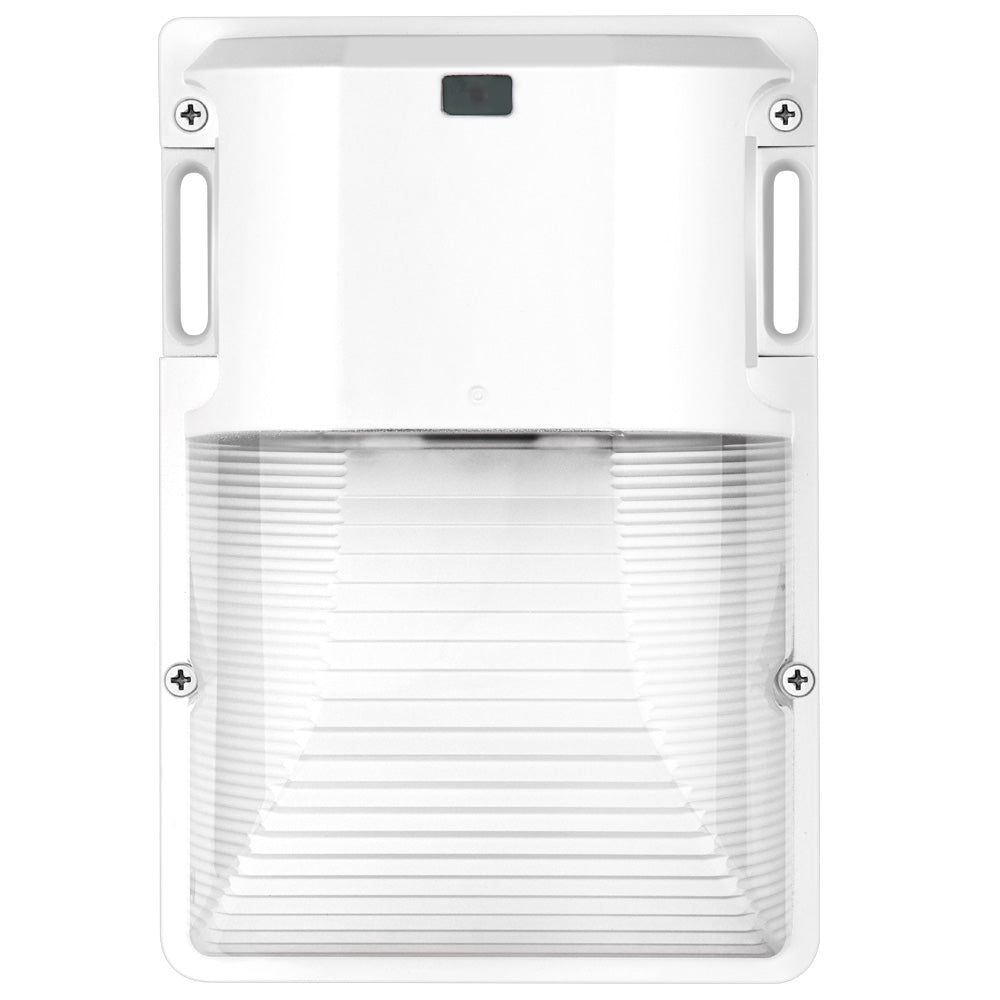

The Konlite WM7 Series LED Mini Wall Pack Light combines a compact, classic wall-pack design with efficient LED technology to provide dependable exterior illumination. Its small footprint makes it an excellent choice for wall-mounted lighting where reliable performance and space-efficient construction are important.
The WM7 features selectable wattage and color temperature, allowing the fixture to be configured for 18W, 25W, or 30W and 3000K, 4000K, or 5000K. A durable die-cast aluminum housing, IP65-rated sealed construction, integrated dusk-to-dawn photocell, and 50,000+ hour LED L70 lifespan provide long-term performance with reduced maintenance. The fixture is also UL Listed and DLC 6.0 Premium qualified.

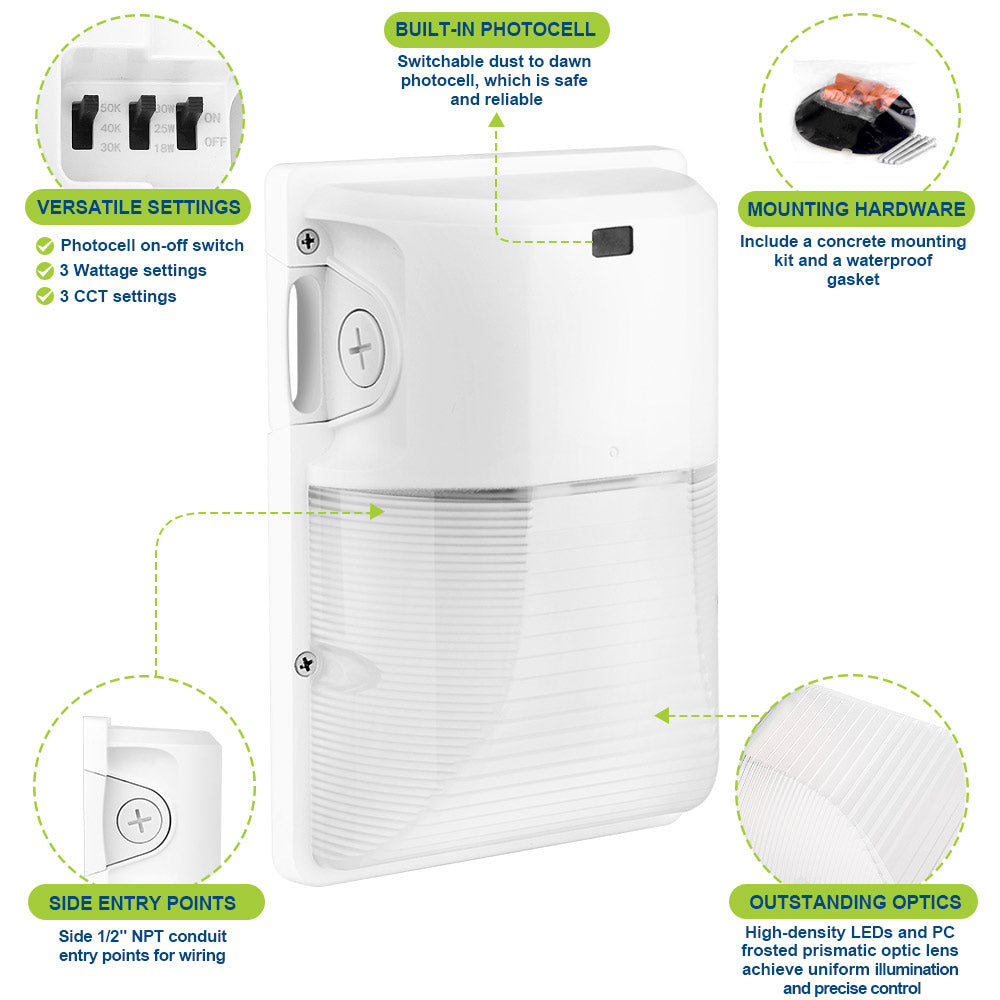

Key Features
🔹 Selectable Wattage (30W / 25W / 18W)
Choose from three power levels to adjust energy consumption and light output based on project requirements.
🔹 Selectable CCT (5000K / 4000K / 3000K)
Adjust the color temperature to achieve the desired appearance, from warm 3000K to bright 5000K illumination.
🔹 Up to 4,266 Lumens
The 30W configuration produces up to 4,266 lumens at 4000K, providing efficient illumination from a compact wall-mounted fixture.
🔹 High-Efficiency LED Performance
Delivers up to 153 lm/W, helping reduce energy consumption compared with traditional wall-pack lighting technologies.

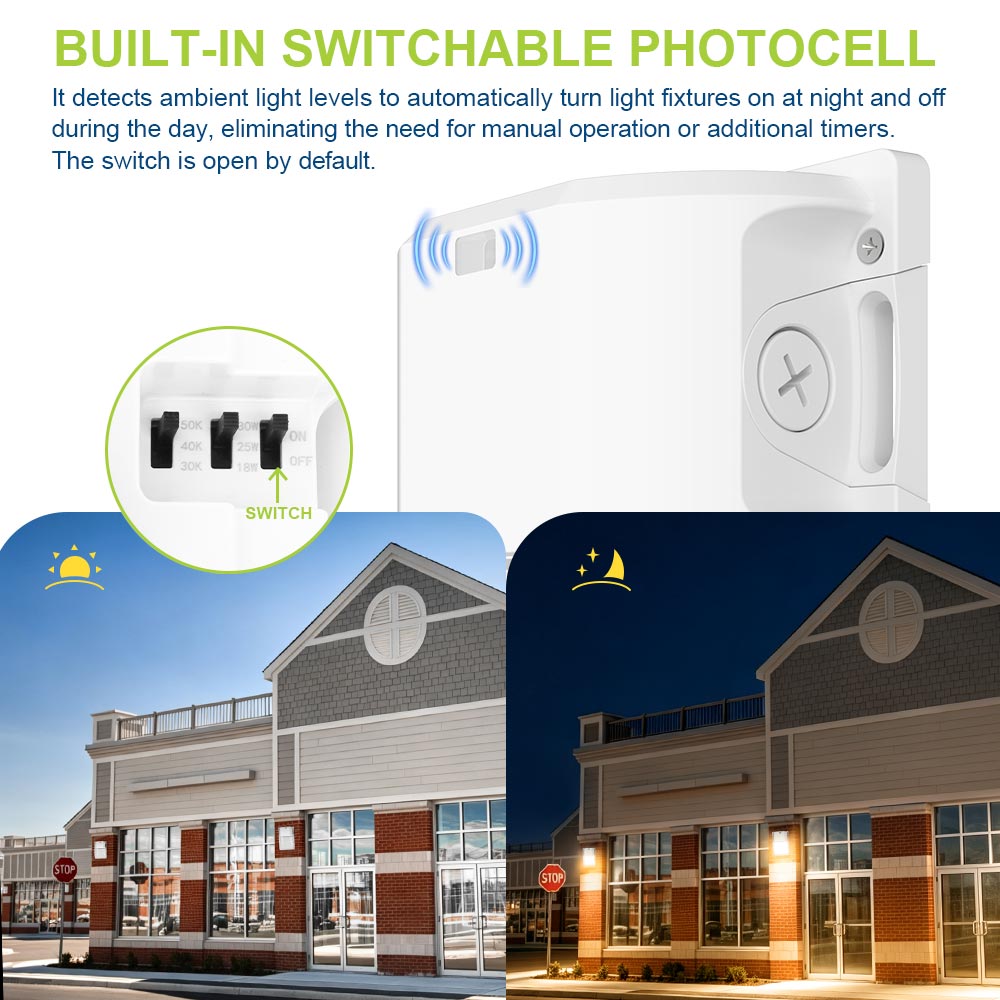

🔹 Integrated Dusk-to-Dawn Photocell
The built-in photocell automatically controls the fixture based on ambient light levels, providing convenient automatic on/off operation.
🔹 Durable Die-Cast Aluminum Housing
The rugged aluminum housing features a harsh-environment-grade powder coating designed to enhance corrosion resistance.
🔹 IP65-Rated Construction
The sealed housing helps protect the fixture against moisture and environmental contaminants for dependable outdoor operation.
🔹 Wide-Angle Optical Performance

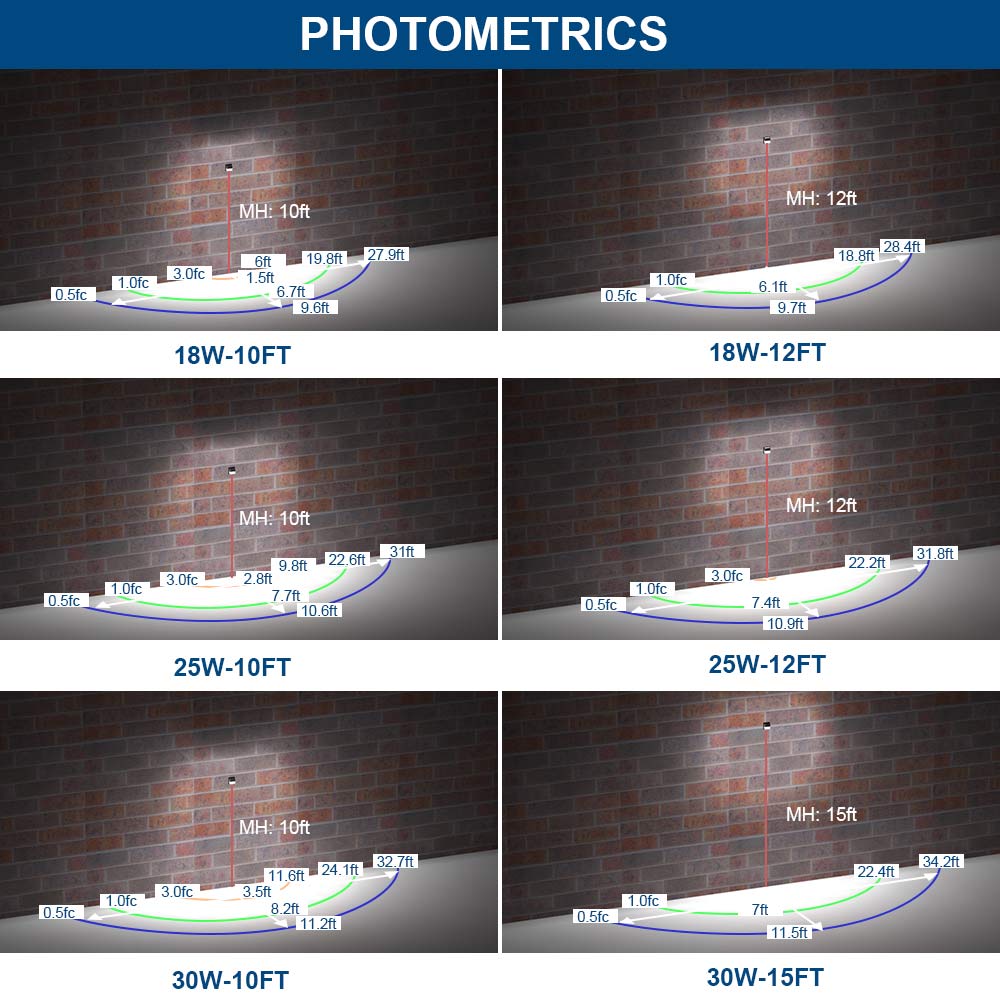

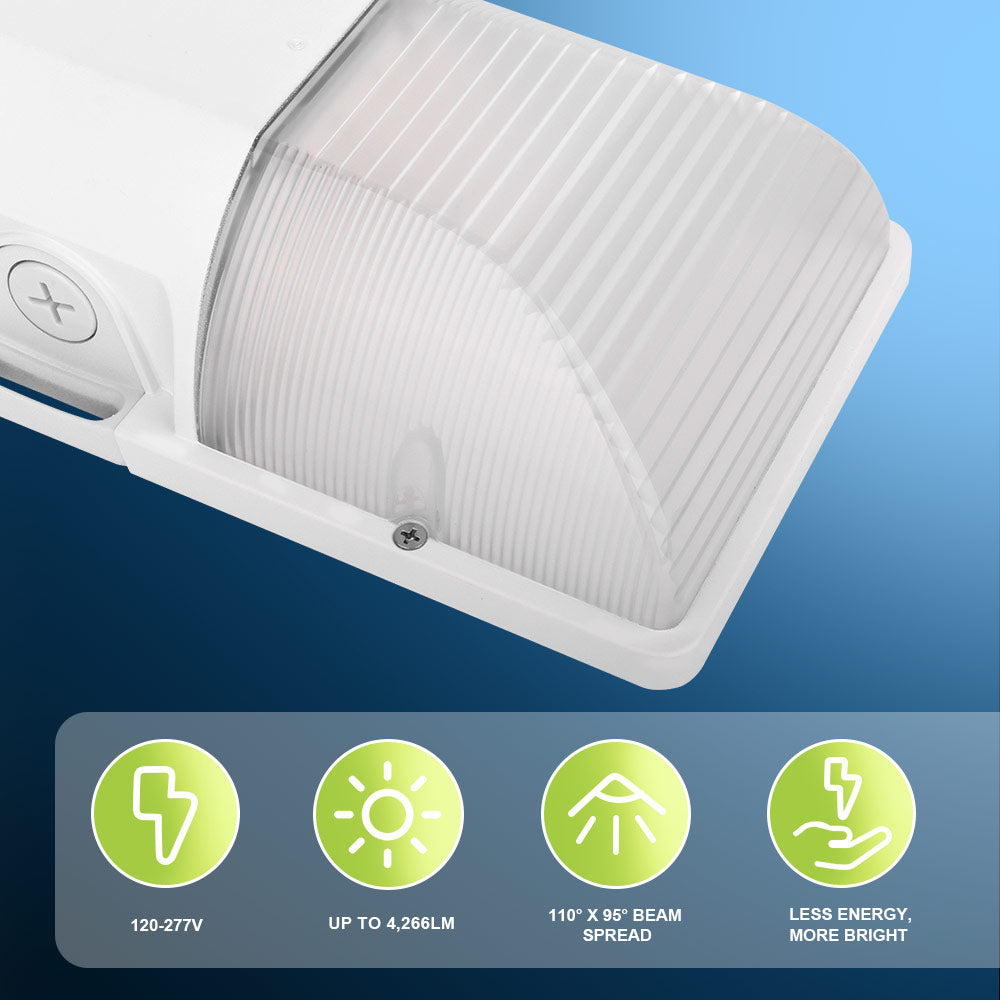

The WM7 utilizes a semi-cutoff distribution with a 110° × 95° beam spread for broad exterior illumination.
🔹 4kV Surge Protection
Standard surge protection provides additional protection against electrical surges and transient voltage events.
🔹 0–10V Dimmable
Compatible with 0–10V dimming controls for adjustable light output and additional energy management.
🔹 Compact Design

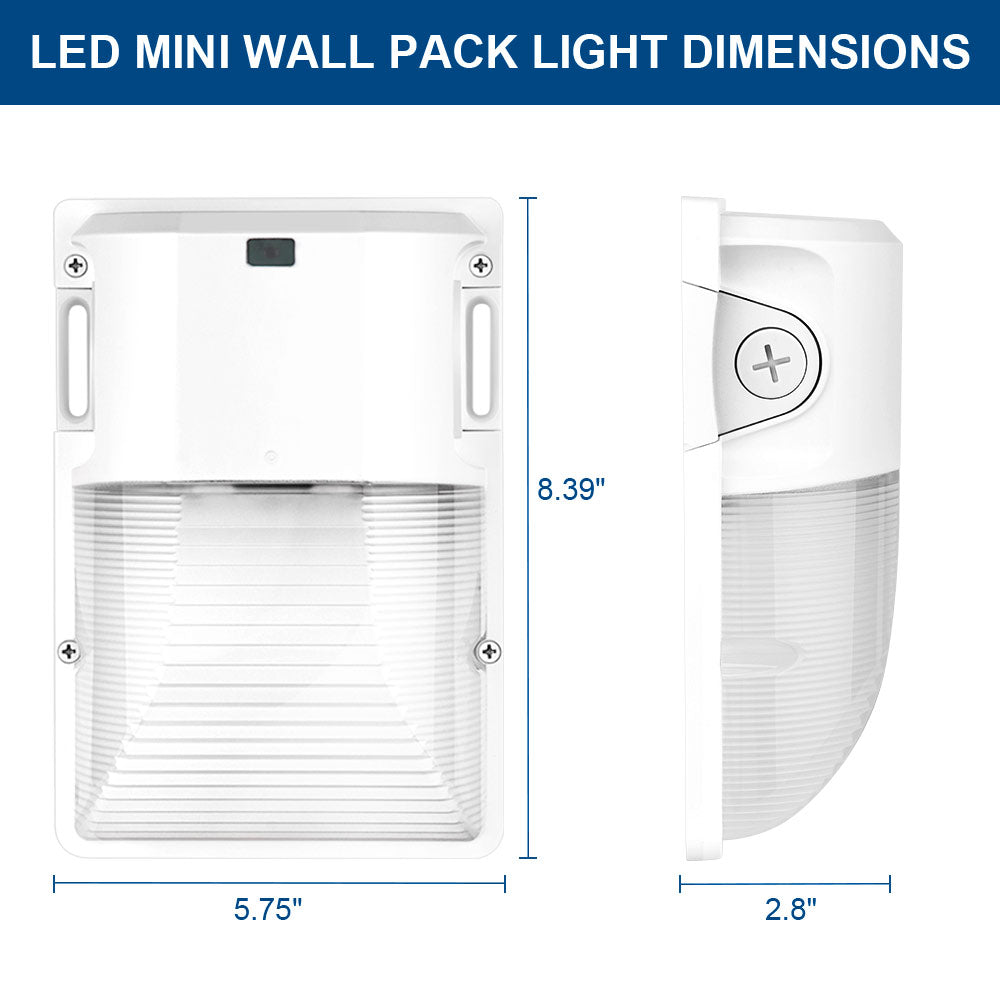

Measuring just 5.75" W × 8.39" H × 2.8" D, the WM7 provides powerful LED illumination in a compact wall-pack housing.

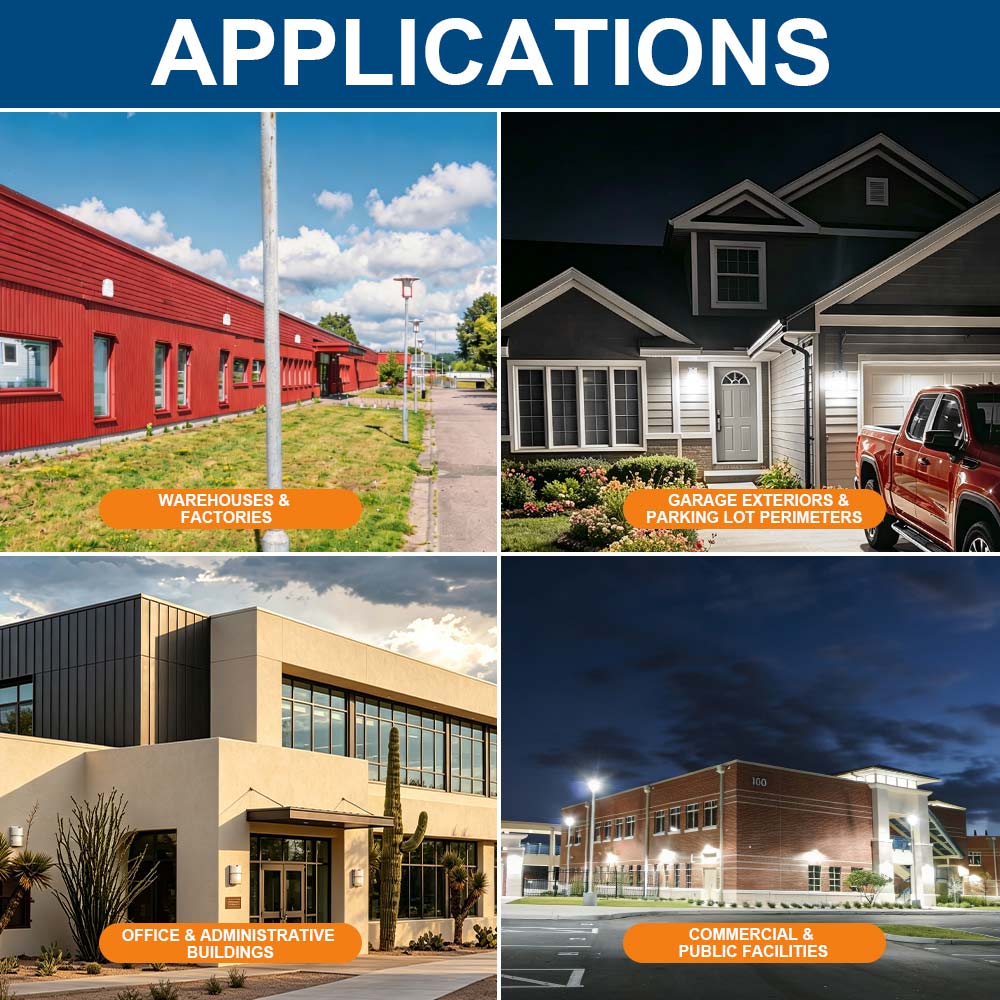

Applications
| • Security Lights | • Signage Lights |
| • Boat Docks & Marinas |
• Building facades |
| • Storage Facilities | • Underpasses |
| • Parking Facilities | • Loading Areas |
| • Warehouses | • Metal Buildings |
Specifications
| Brand | Konlite | MPN | RKWM7030MCLWP |
| Warranty | 5 Years | UPC | 605547756214 |
| Input Voltage | 120-277V | Equal To | 75W HID |
| Input Wattage | 30W/25W/18W Selectable | Power Factor | >0.9 |
| Lumens | 4,266 LM Max. | CRI | >70 |
| Efficacy | Up to 153 LM/W | Available CCT | 5000K/4000K/3000K Selectable |
| Rated Life | >50,000 hrs | Control | Integrated Dusk To Dawn Photocell |
| Operating Temperature | -40F to 113F | Weight | 2.2 Lbs |
| Housing Color | Dark Bronze | Dimensions | 8.39"x5.75"x2.8" |
| Certifications | UL listed, DLC Premium |
