Product Overview

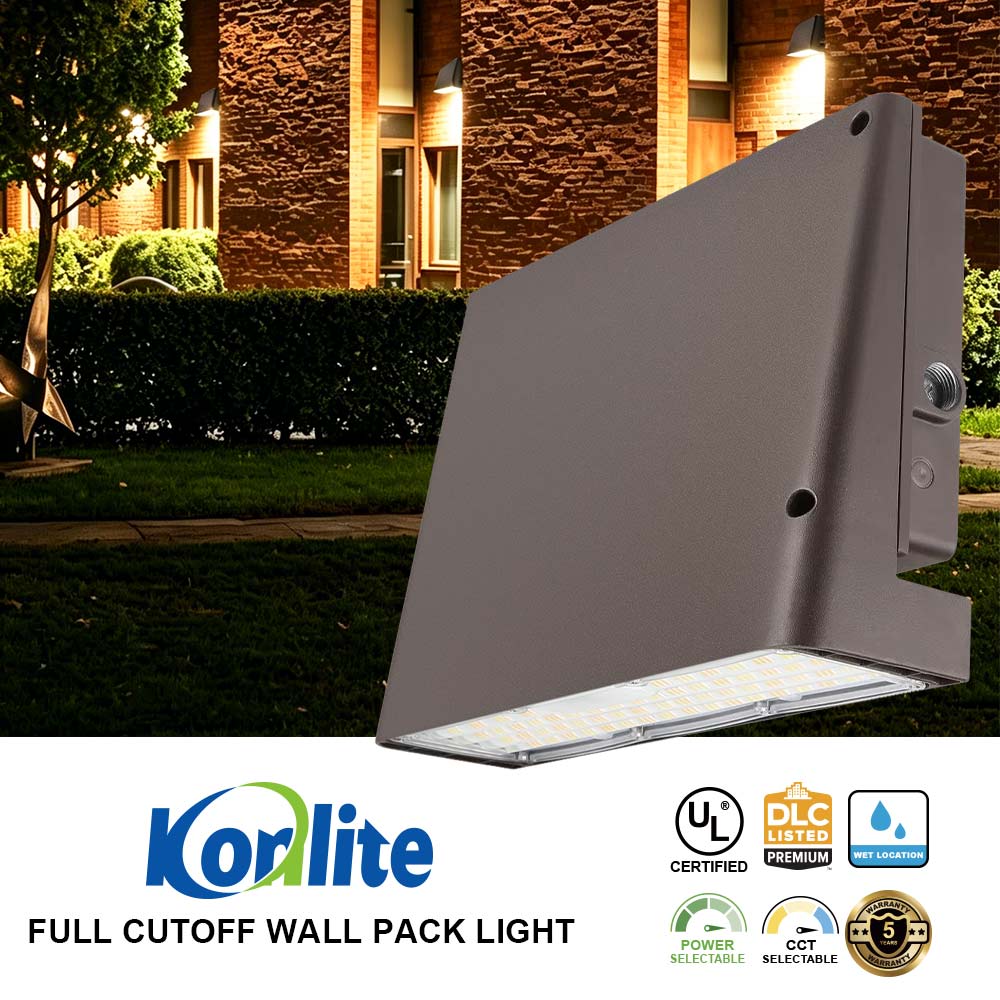

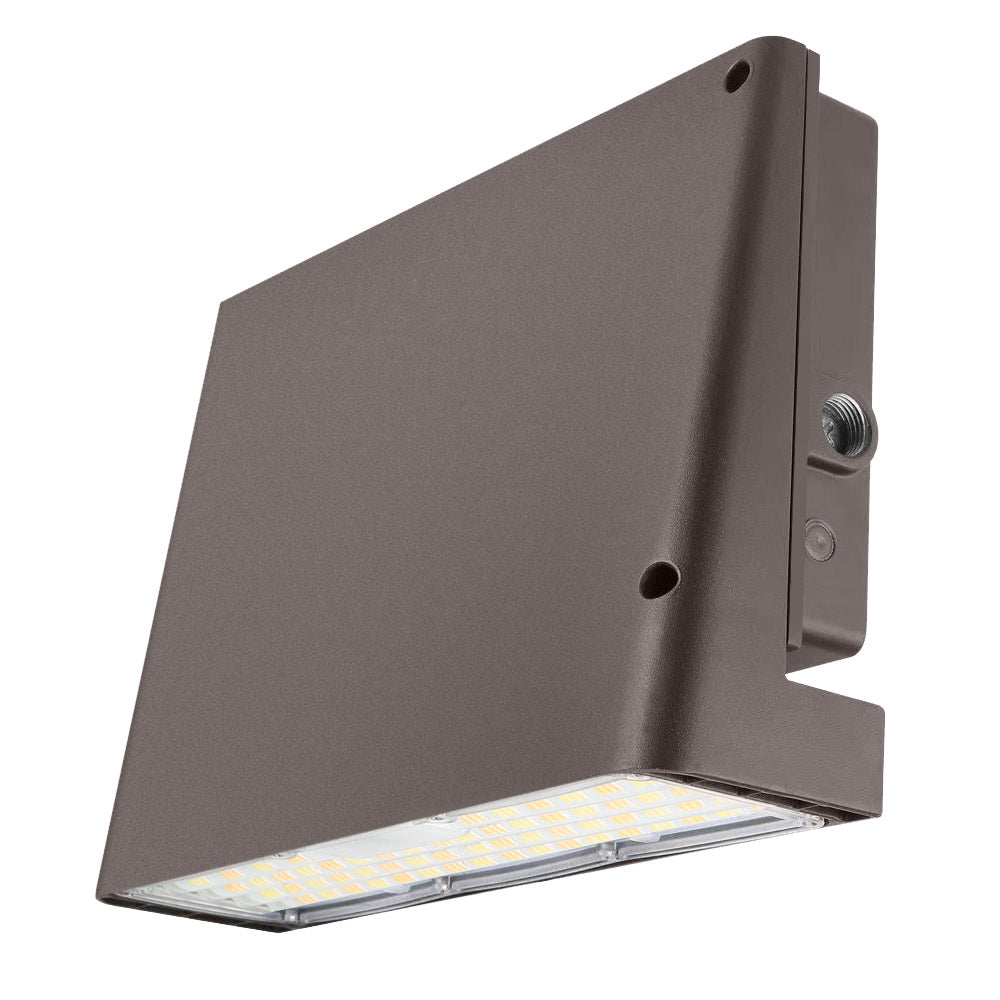

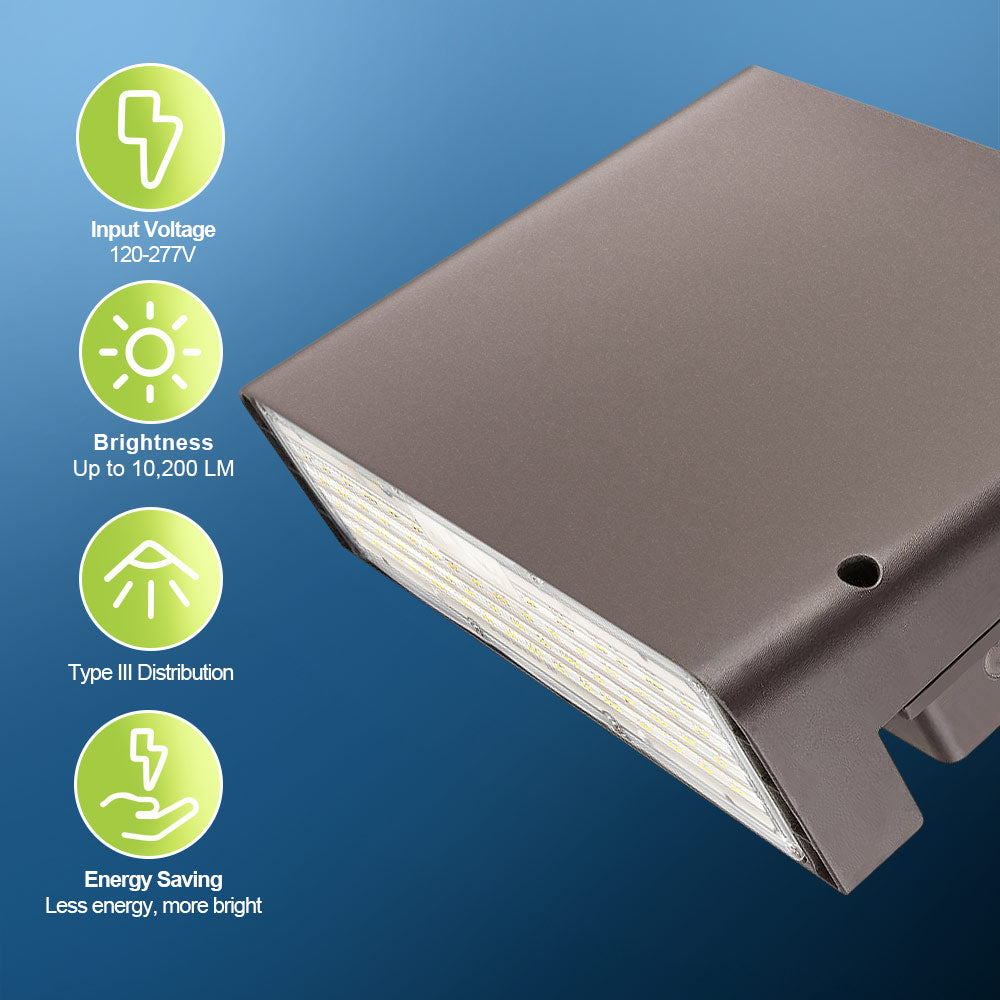

Improve exterior safety and modernize your property with the Konlite KWPF Series Full Cutoff LED Wall Pack Light. Featuring a slim architectural profile and advanced LED performance, this commercial-grade fixture delivers efficient downward illumination while helping reduce glare and light pollution for professional outdoor lighting applications.

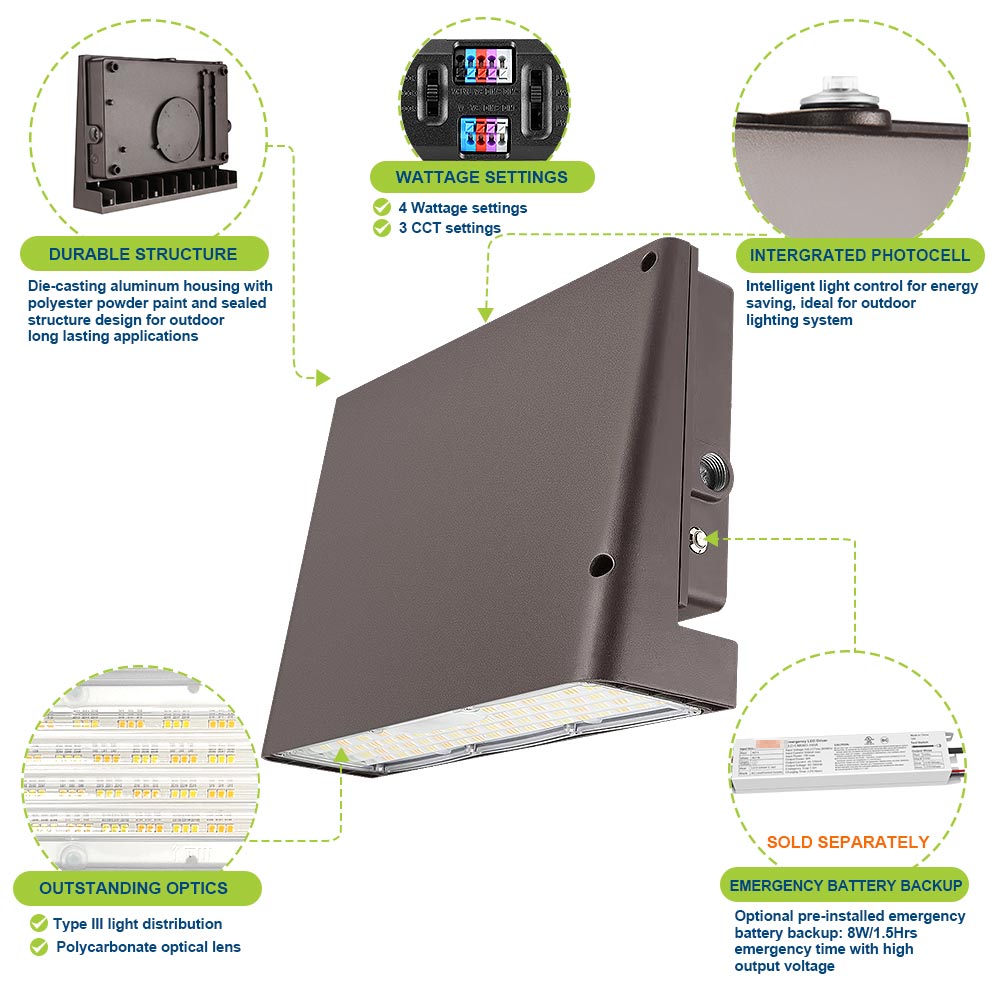

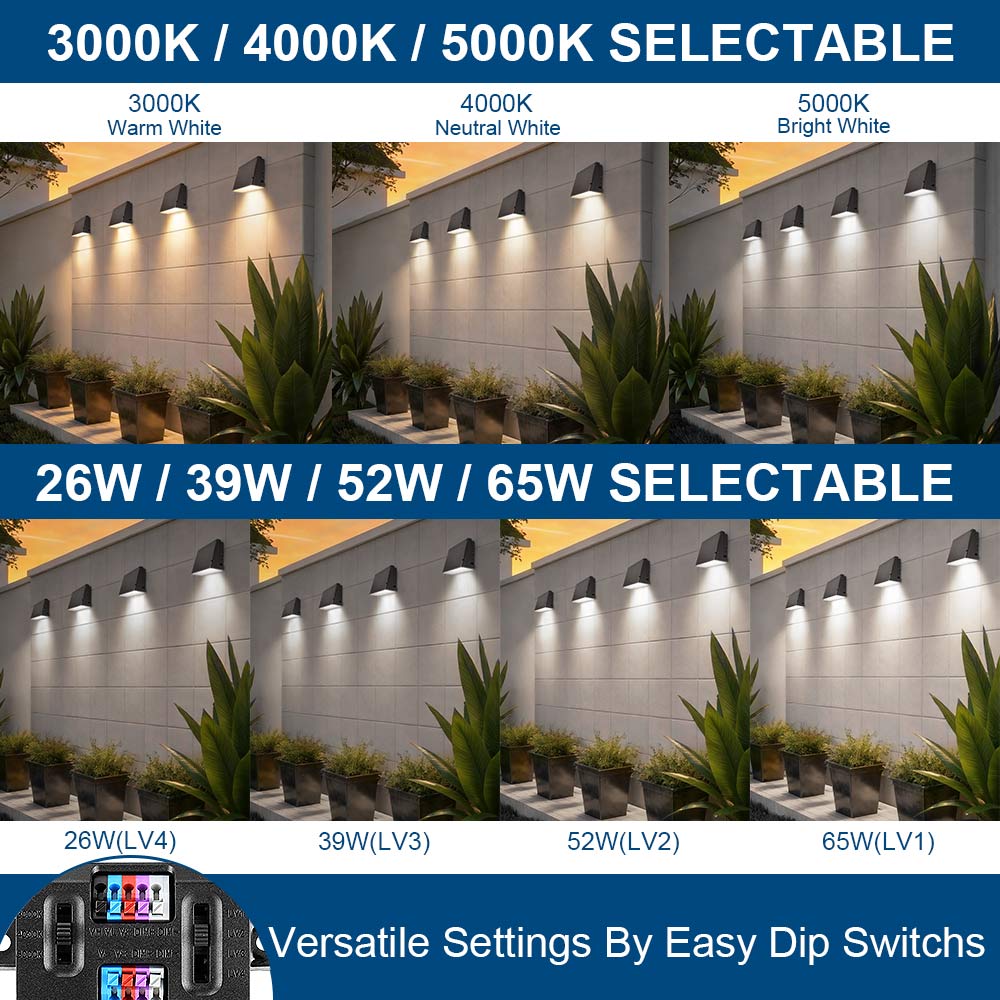

This medium-size selectable wall pack allows users to choose between 65W / 52W / 39W / 26W power settings and selectable 3000K / 4000K / 5000K color temperatures to match different lighting requirements and building environments. At the factory default 65W / 4000K setting, the fixture delivers up to 10,200 lumens with efficacy up to 170 lumens per watt depending on the selected configuration.

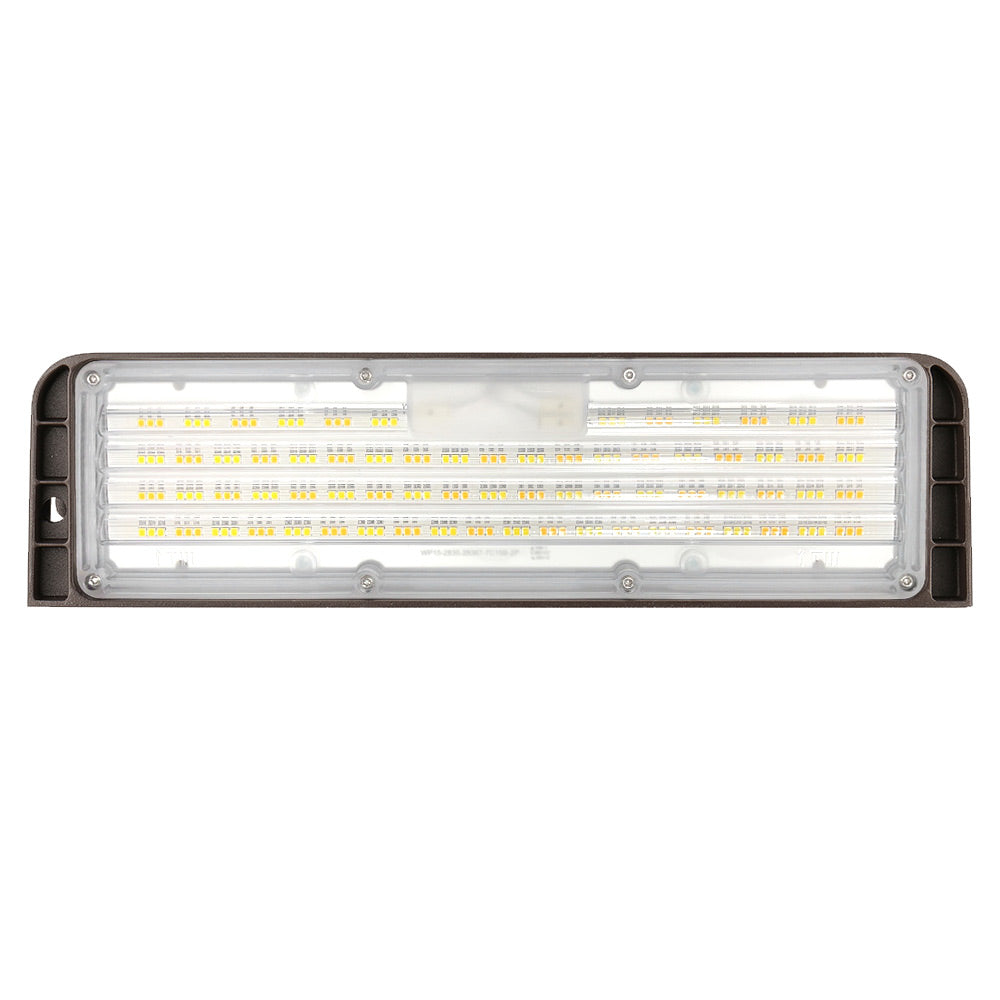

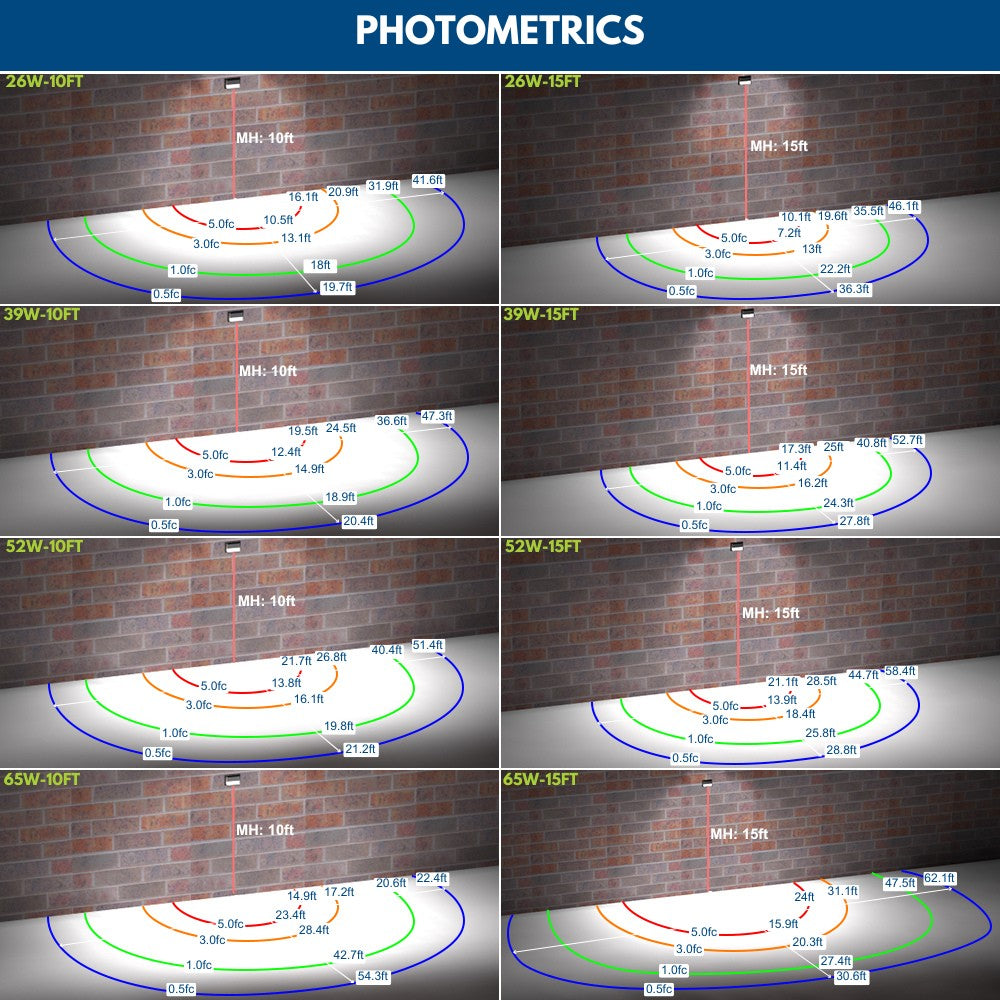

The full cutoff optical design projects light downward only, eliminating uplight and minimizing glare and light trespass while supporting Dark Sky friendly applications. The advanced Type III beam distribution provides broad and uniform coverage for commercial exterior spaces.

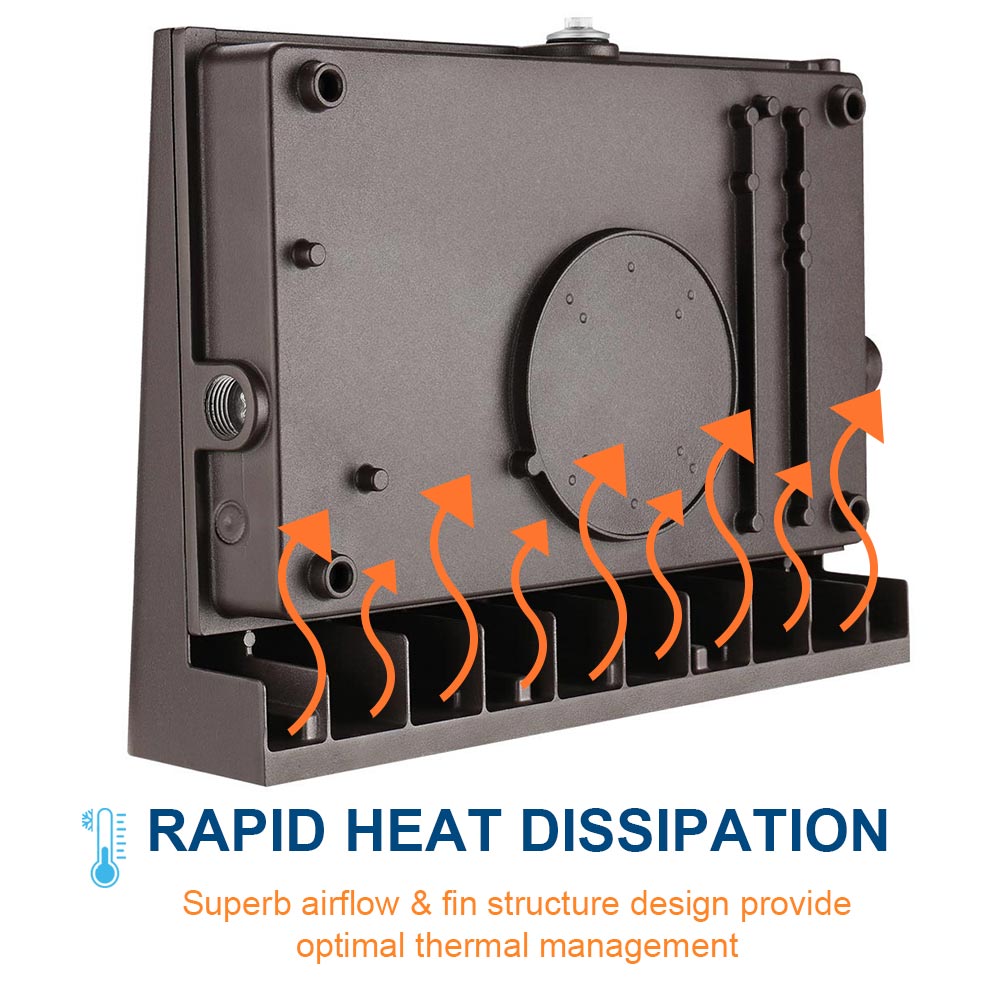

Constructed with a rugged die-cast aluminum housing and durable dark bronze powder-coated finish, the KWPF Series is built for long-term outdoor reliability. The sealed IP65-rated housing protects the fixture against rain, dust, moisture, and harsh environmental conditions.
Ideal applications include building facades, entrances, stairwells, loading docks, walkways, parking garages, warehouse exteriors, corridors, and perimeter security lighting. A factory pre-installed dusk-to-dawn photocell comes included with the fixture, while an optional factory-installed emergency battery backup is also available.
These environmentally friendly LED wall packs are ideal for building facades, perimeter lighting, loading docks, parking garage, stairwell, signage and other locations where downward lighting is needed.
UL Listed, DLC qualified, and backed by a 5-year warranty for dependable commercial lighting performance.
See similar 38watt, or 100-watt versions.
Applications
| • Security Lights | • Signage Lights |
| • Boat Docks & Marinas |
• Building facades |
| • Storage Facilities | • Underpasses |
| • Parking Facilities | • Loading Areas |
| • Warehouses | • Metal Buildings |
Specifications
| Brand | Konlite | DLC Part # | N.A |
| Warranty | 5 Years | UPC | 752480736688 |
| Input Voltage | 120-277V | Dimmable | N/A |
| Input Wattage | 65W/52W/39W/26W | Equal to | 250W MH |
| Delivered Lumens | 10,200/8,300/6,400/4,400 | CRI | >70 |
| Efficacy | 150 LM/W | Available CCT | 5000K |
| Rated Life | >50,000 Hrs | THD | <15% |
| Power Fact | >0.9 | Control | Optional Dusk To Down Photocell |

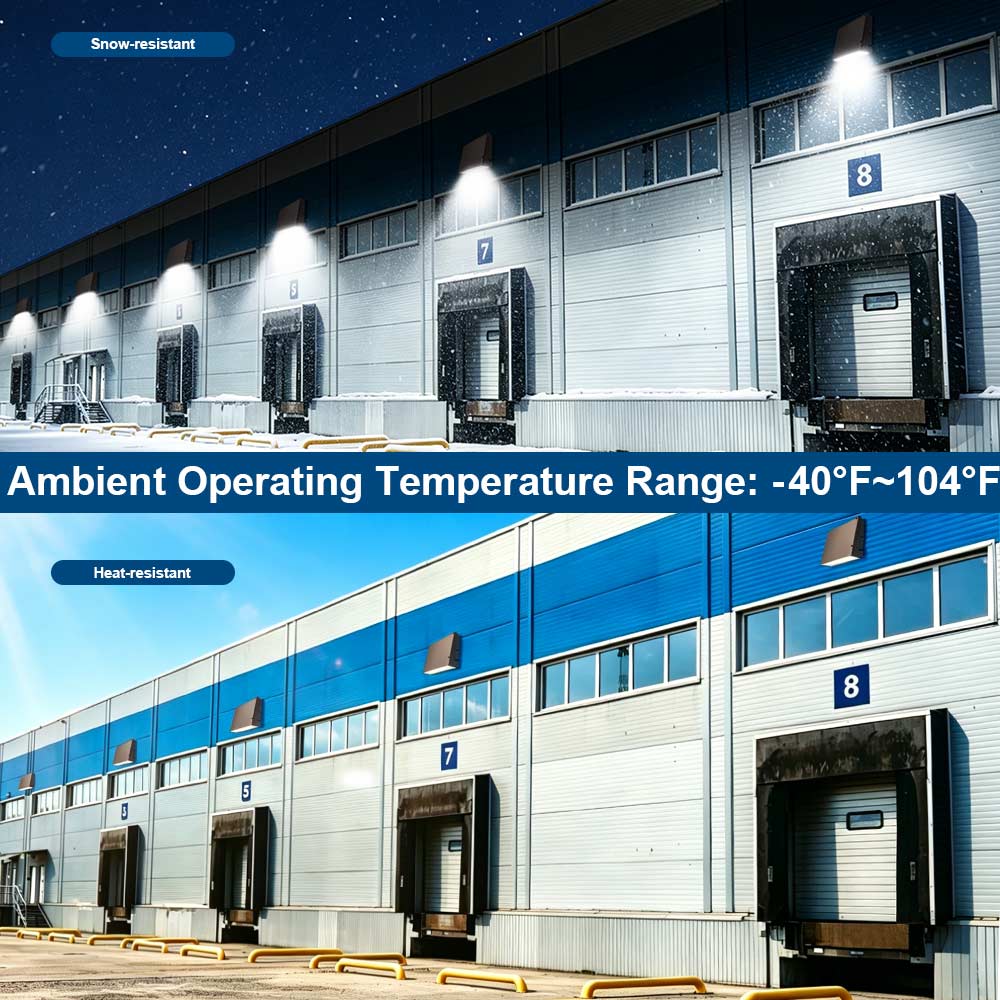

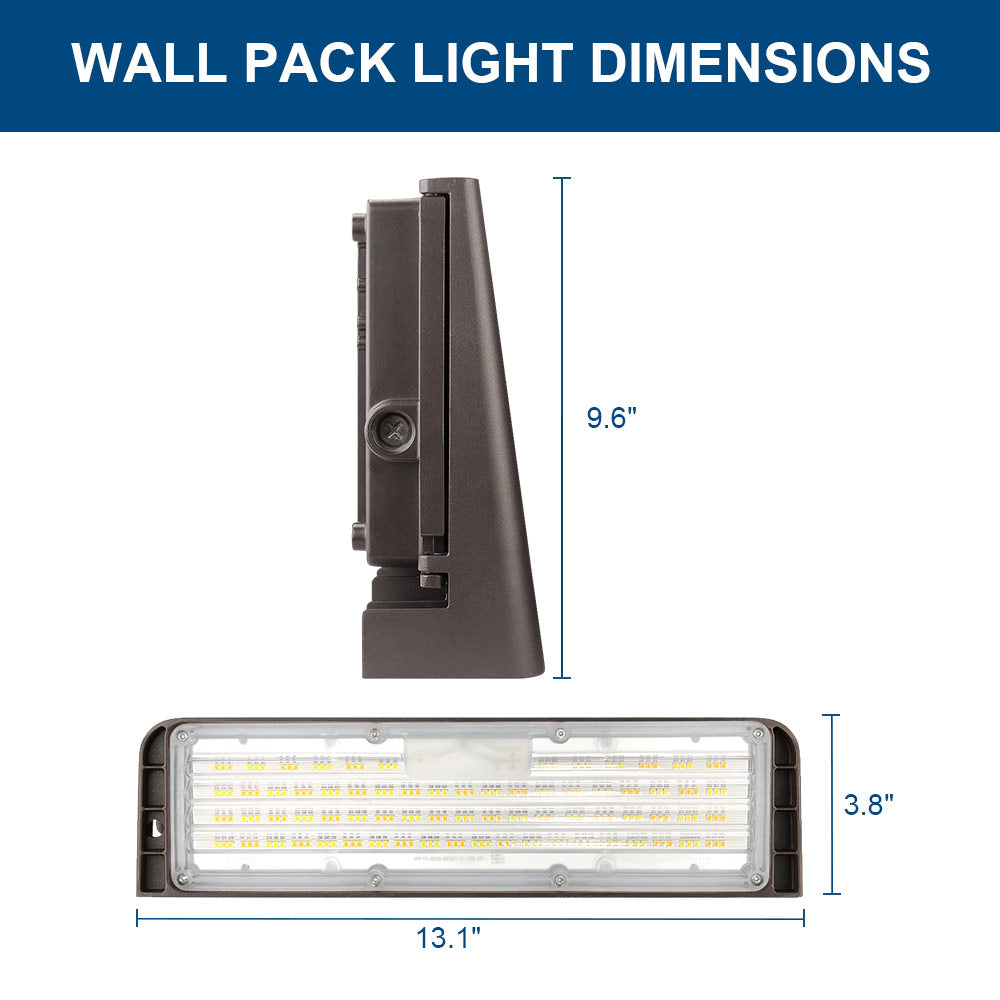

| Operating Temp | -40°F to 104°F ( 40° to 104° F Powered by EBB ) | Dimension | 13.1”x3.8”x9.6” |
| Certifications | UL Wet Locations | Weight | 10 Lbs |
