Konlite VEGA LED Sports Light - 505W - 70,000lm - 5000K - 120-277V - 4H4V - 1500W Equal - 10 Year Warranty
- 5000K Daylight White
- Voltage: 120-277V
- Certificates: UL, DLC
- 10-Year Warranty
- Aiming laser included
- NEMA 4Hx4V wide beam spread
- Replaces 1,500W Metal Halide
- Contact us for Free Lighting Layouts
- 5000K Daylight White
- Voltage: 120-277V
- Certificates: UL, DLC
- 10-Year Warranty
- Aiming laser included
- NEMA 4Hx4V wide beam spread
- Replaces 1,500W Metal Halide
- Contact us for Free Lighting Layouts
The Konlite KVG Series LED Sport light combines optical uniformity, energy efficiency and long term reliability.
- NEMA type: 4H x 4V wide beam spread

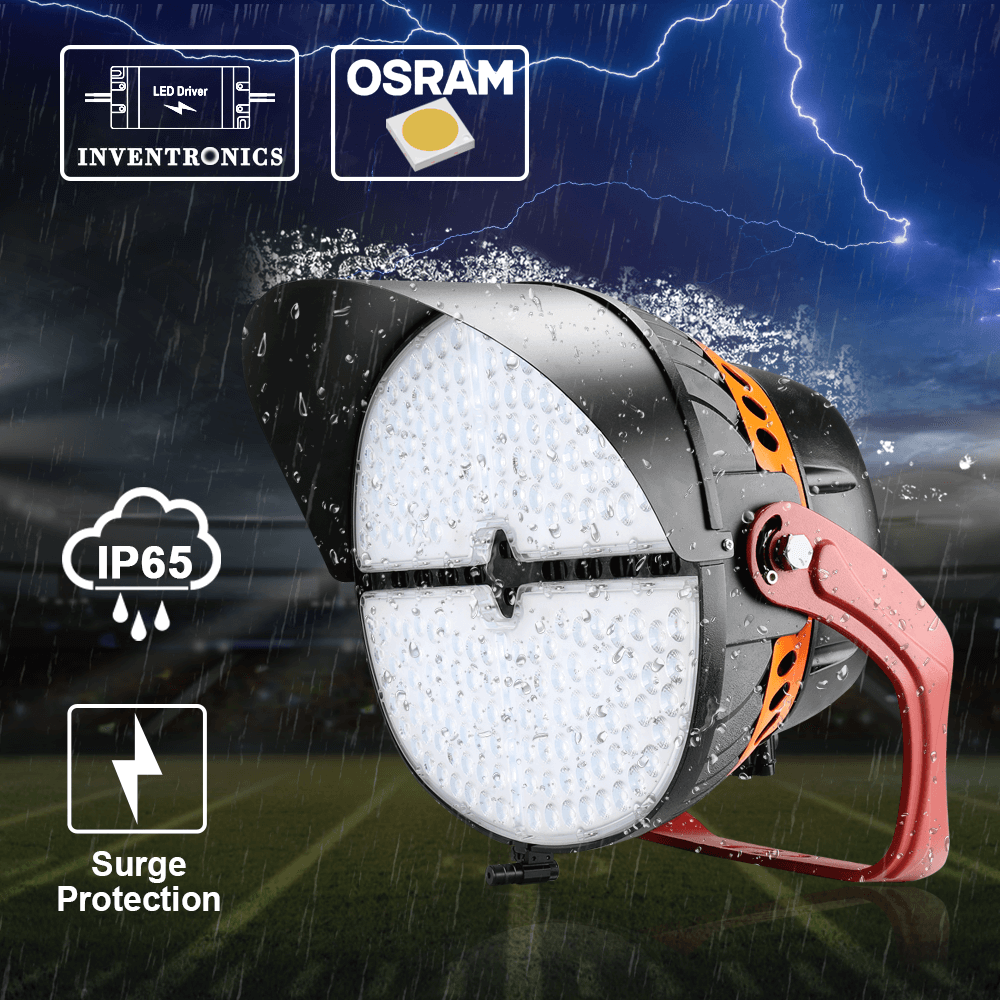

- Built-in 10KV Surge Protection
- Powered by Inventronic driver and Osram LEDs
- 100,000 hour lifespan
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview

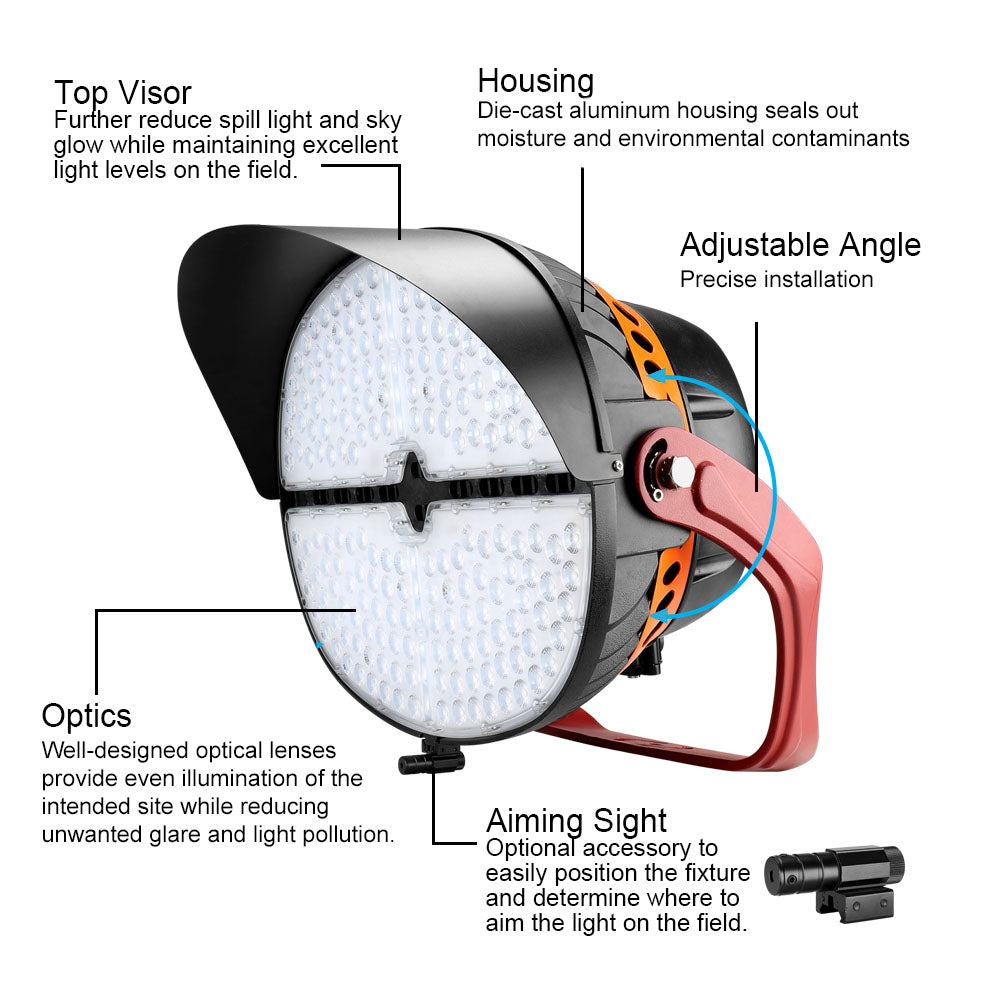

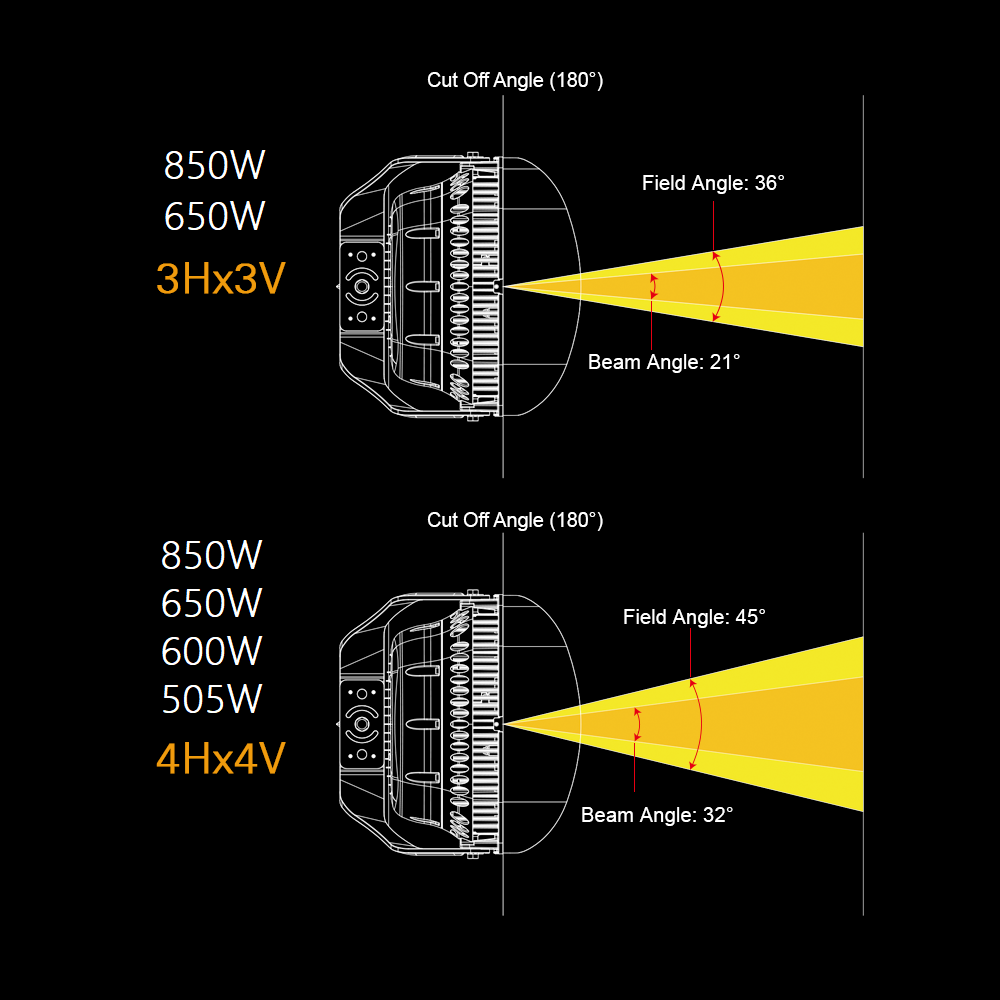

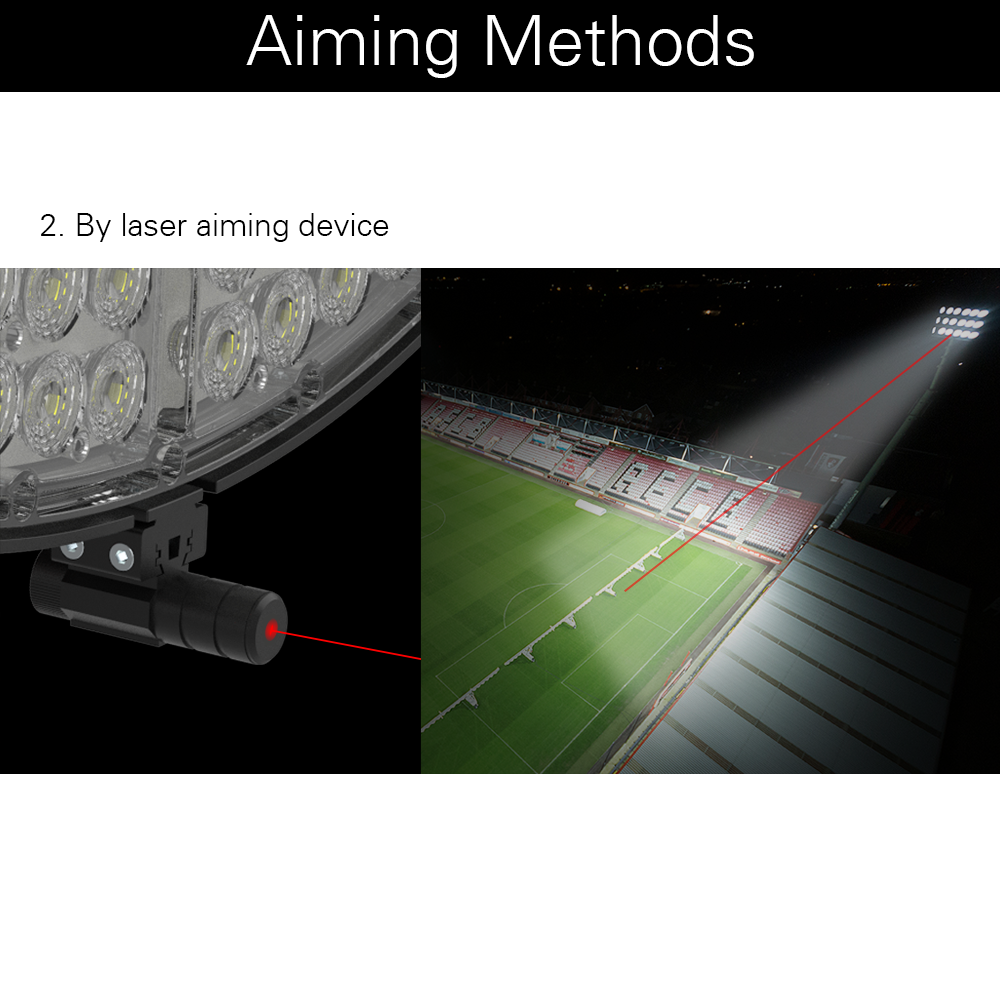

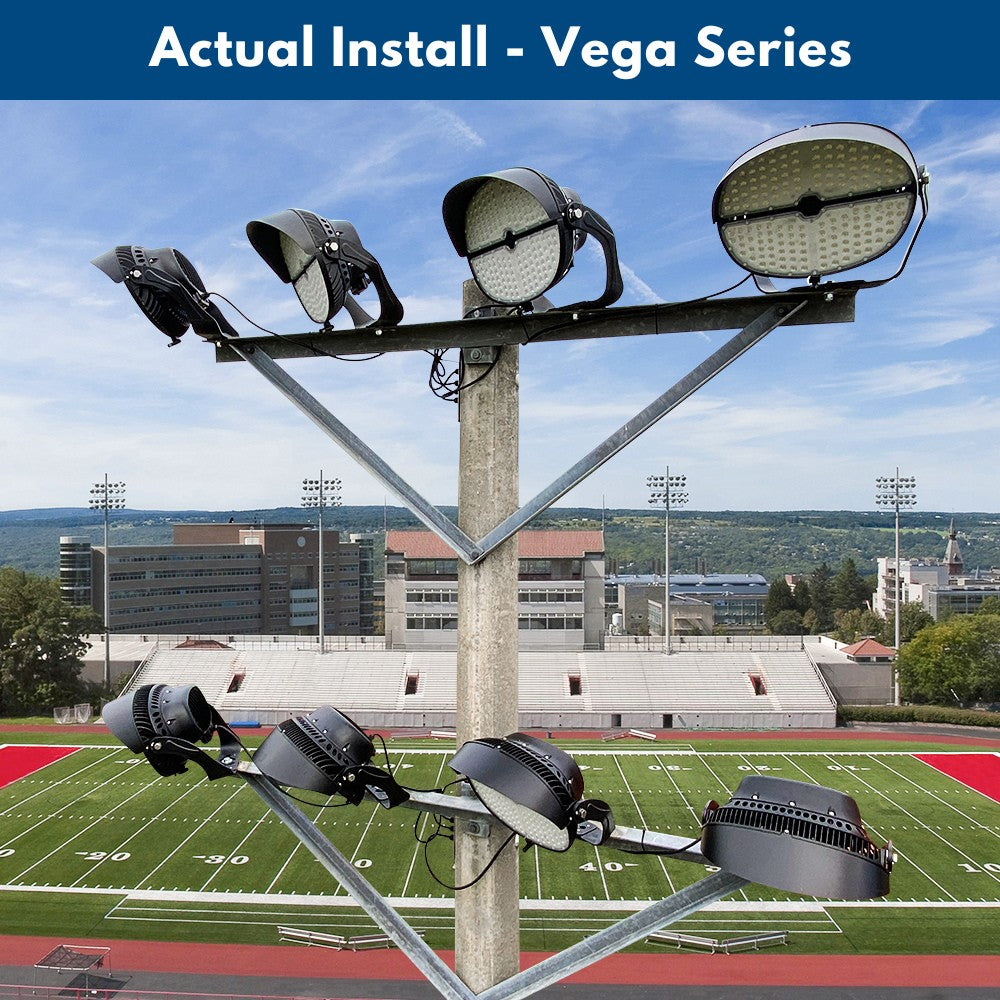

Replace your old outdoor area lights, ballpark or stadium lights with this Konlite VEGA high efficiency LED flood light. Konlite 505W Sports Light is a high efficacy luminaire designed to offer excellent visibility with minimal glare. This lightweight fixture has a beam angle of 32° and easily installs in applications of up to 120 feet, providing outstanding illumination of sport and municipal fields, parking lots, and golf ranges. A light shield ( Visor ) prevents light pollution in areas where preserving ambiance may be a concern. A laser pointer to help point the fixture in the correct direction.
505 Watts, 70,000 Lumens, 1-10V Dimmable, 5000K, NEMA 4H4V Distribution, 120-277V

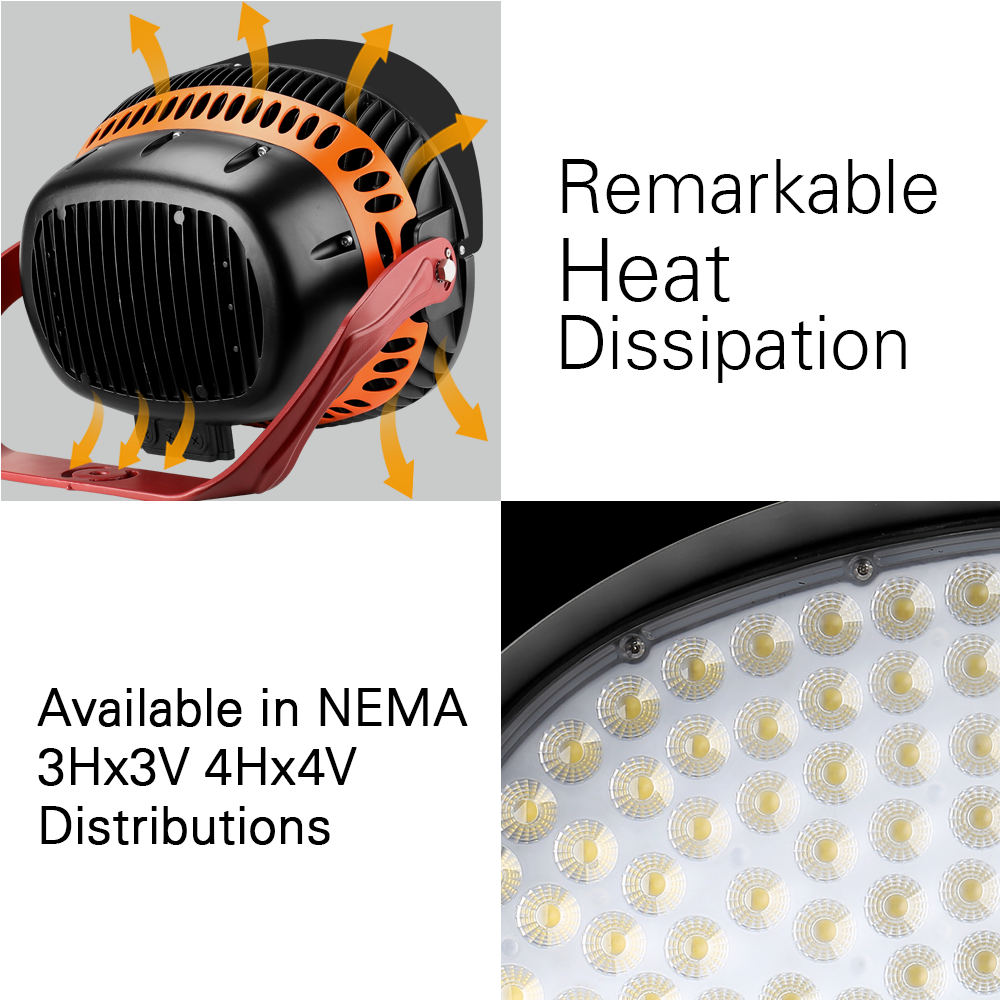

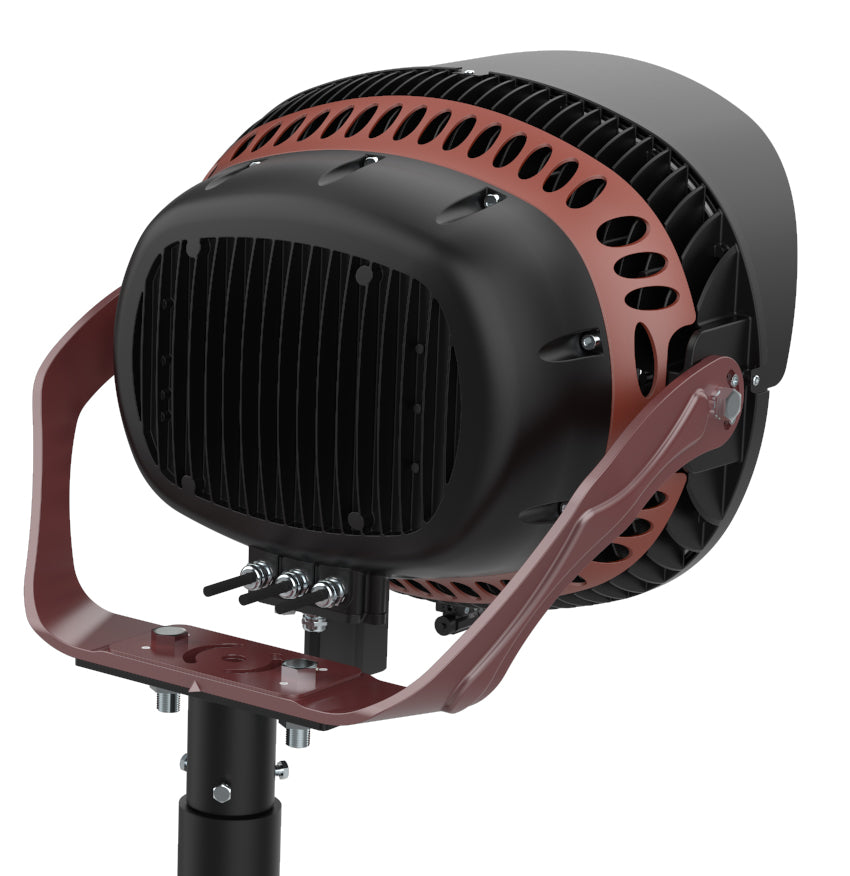

Built to last and withstand harsh elements, the stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

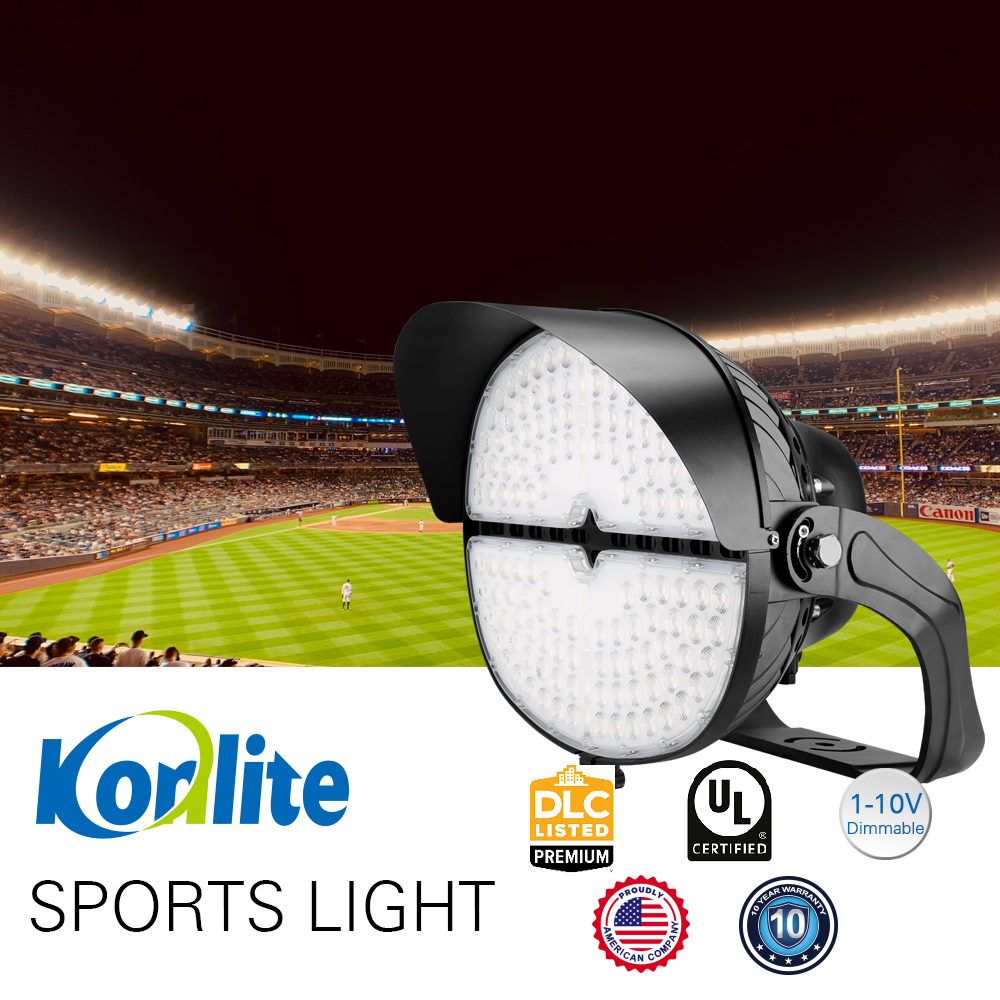

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 10-year warranty
See similar 600-watt, 650-watt, and 850-watt versions.
Applications
| • Baseball Fields | • Football Fields Lighting |
| • Tennis Courts | • Cricket Fields |
| • Soccer Fields | • Golf Range |
| • Basketball | • Stadium Lighting |
| • Shooting Range | • Speedway and Racetracks |
| • Schools & Universities | • Community Parks |
| • Sports Complex | • Open area high master lighting |
| • Arenas | • Natatoriums |
Specifications:
| Brand | Konlite | DLC Part # | MLS01505W27V50KBB44TR |
| Warranty | Limited 10 Years | UPC | 752480738231 |
| Input Voltage | 120-277V | Optical | NEMA 4H4V |
| Input Wattage | 505W | Equal to | 1500W MH |
| Delivered Lumens | 70,000 | CRI | >70 |
| Efficacy | 139 LM/W | Available CCT | 5000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP65 |
| Dimmable | 1-10V | Controls | N/A |

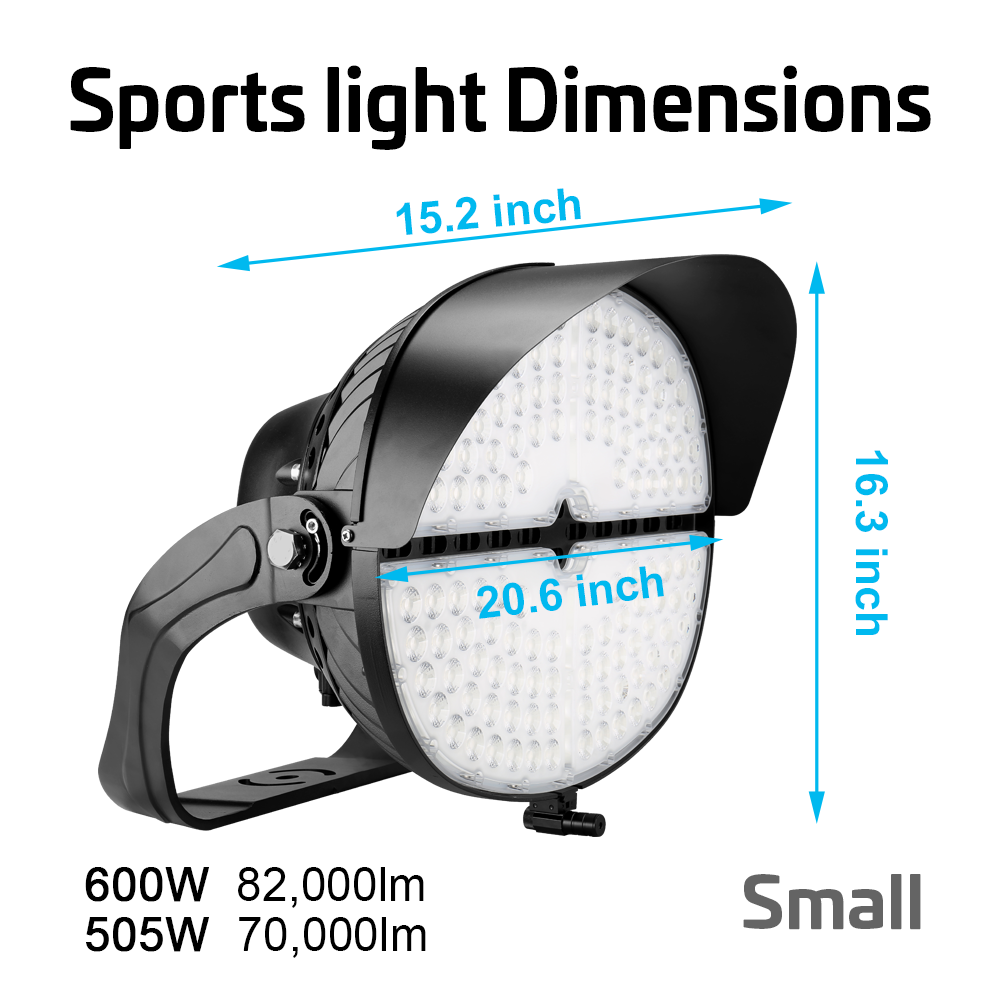

| Operating Temperature | -40 F to 113 F | Dimensions | 20.6''x16.3''x15.2'' |
| Certifications | UL, Wet Locations, DLC Premium | Unit Weight | 39 lbs |
