Product Overview

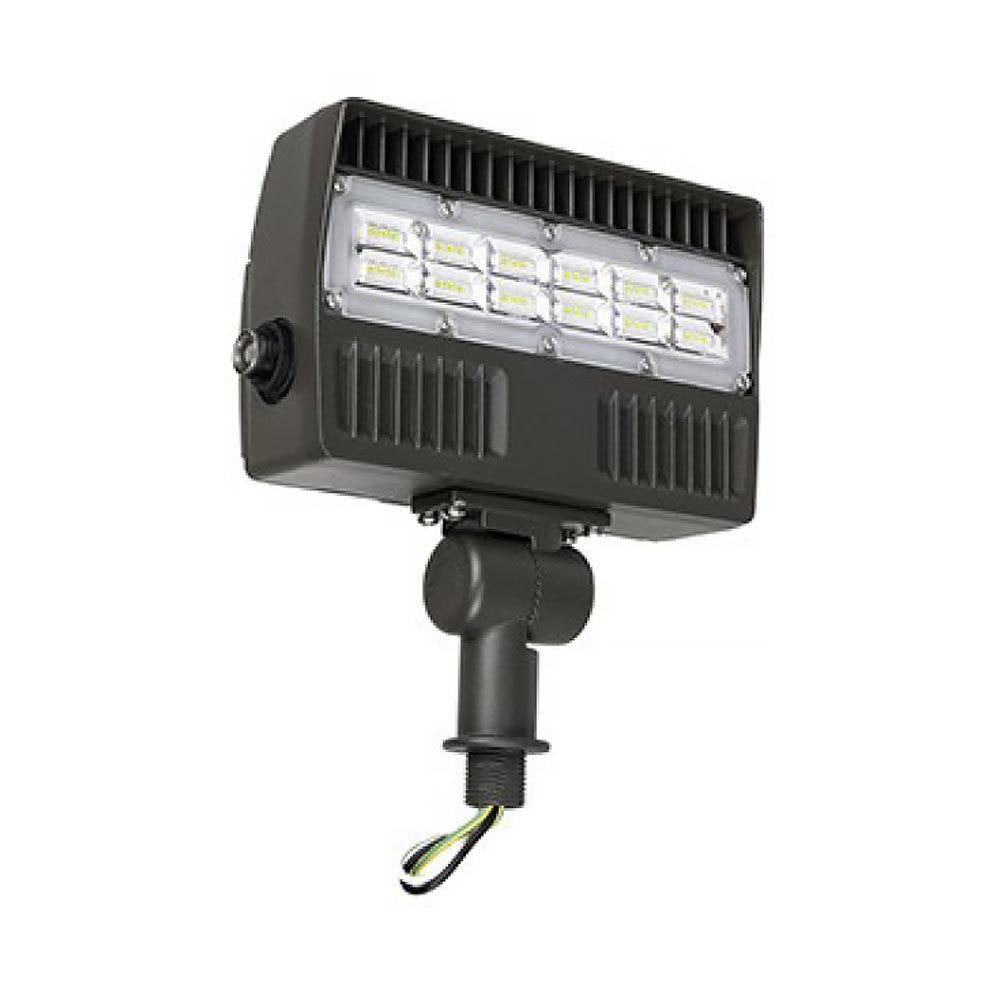

Energetic's E1FLK series is a “go-to" product for lighting automotive yards, perimeter security lighting, or illuminating a loading dock approach. Aluminum die-cast housing easily shed heat via robust radiator fin design. An anti-UV polycarbonate lens is used to provide 95% light transmittance for optical efficiency and durability. Both body and access covers use fully annular gasketing for robust sealing. Standard mounting a BSPP-threaded elbow arm with a 180° adjustable angle. Also, available with or without integrated dusk to dawn photocontrol sensor.
Applications
| • Signs | • Billboards |
| • Landscape Lighting |
• Building Façade |
| • Storage Facilities | • Security Lighting |
| • Warehouses | • Parks |
| • Outdoor Common Areas | • Architectural Lighting |
Color Temperature
Certifications
Specifications
| Warranty | Limited 5 Years | MPN | E1FLK20-750 or E1FLK20L-750 |
| Input Voltage | 120-277V | Beam Angle | 100° |
| Input Wattage | 20W | Equal to | 50W |
| Lumens | 2,080 | CRI | >70 |
| Efficacy | 104 LM/W | Available CCT | 5000K |
| Rated Life | >50,000 hrs | THD | <18% |
| Power Factor | >0.90 | IP Rating | IP65 |
| Dimmable | No | Controls | Optional Photocell |
| Operating Temperature | -40 to 104 F | Dimensions | 7.8" x 8.5" x 2.3" |
| Certifications | UL, Wet Location | Weight | 2.5 lbs |
