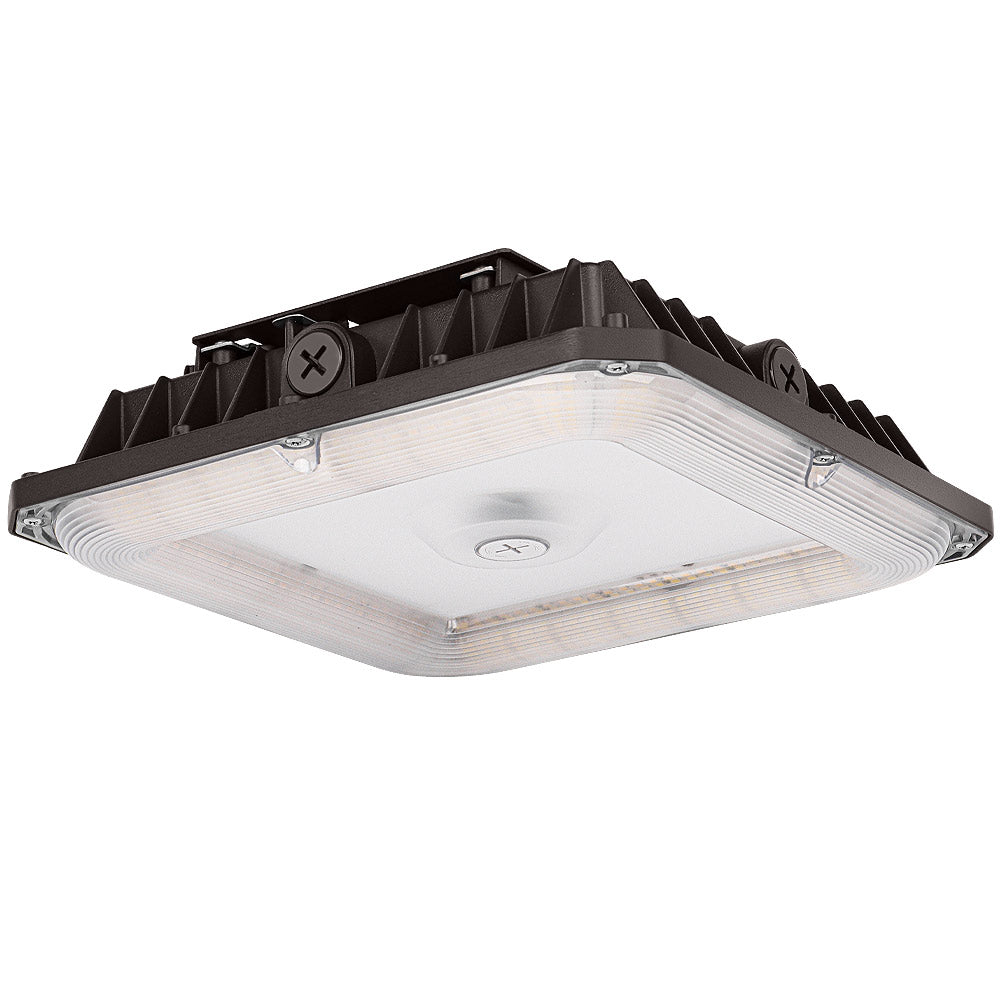

Product Overview

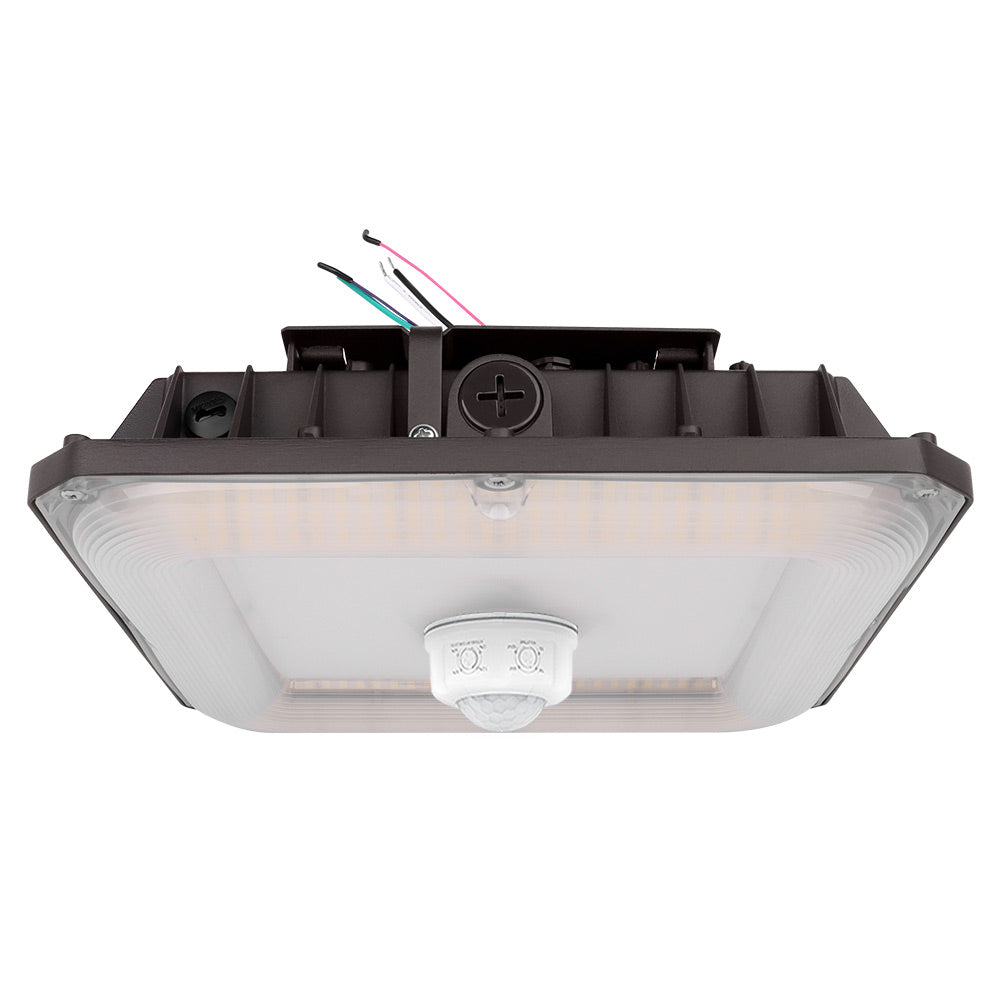

The Konlite CP7 Series LED Canopy Light delivers efficient, reliable illumination for covered outdoor and commercial ceiling-mounted spaces. Featuring a classic industrial design with modern LED technology, this versatile canopy fixture offers selectable wattage and color temperature settings, allowing users to customize light output and appearance for a variety of lighting requirements.
Built with a durable dark bronze die-cast aluminum housing, corrosion-resistant powder coating, and a sealed IP65-rated construction, the CP7 Series is designed for dependable performance in demanding environments.

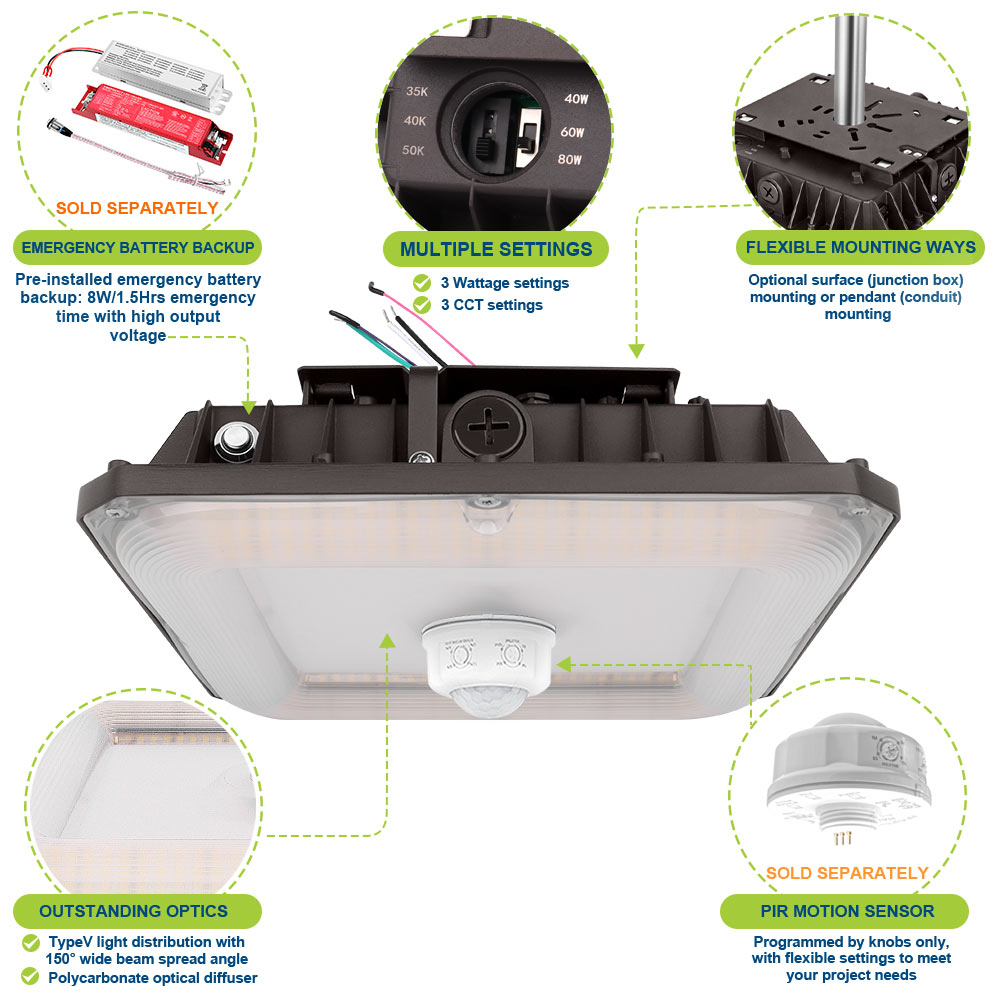

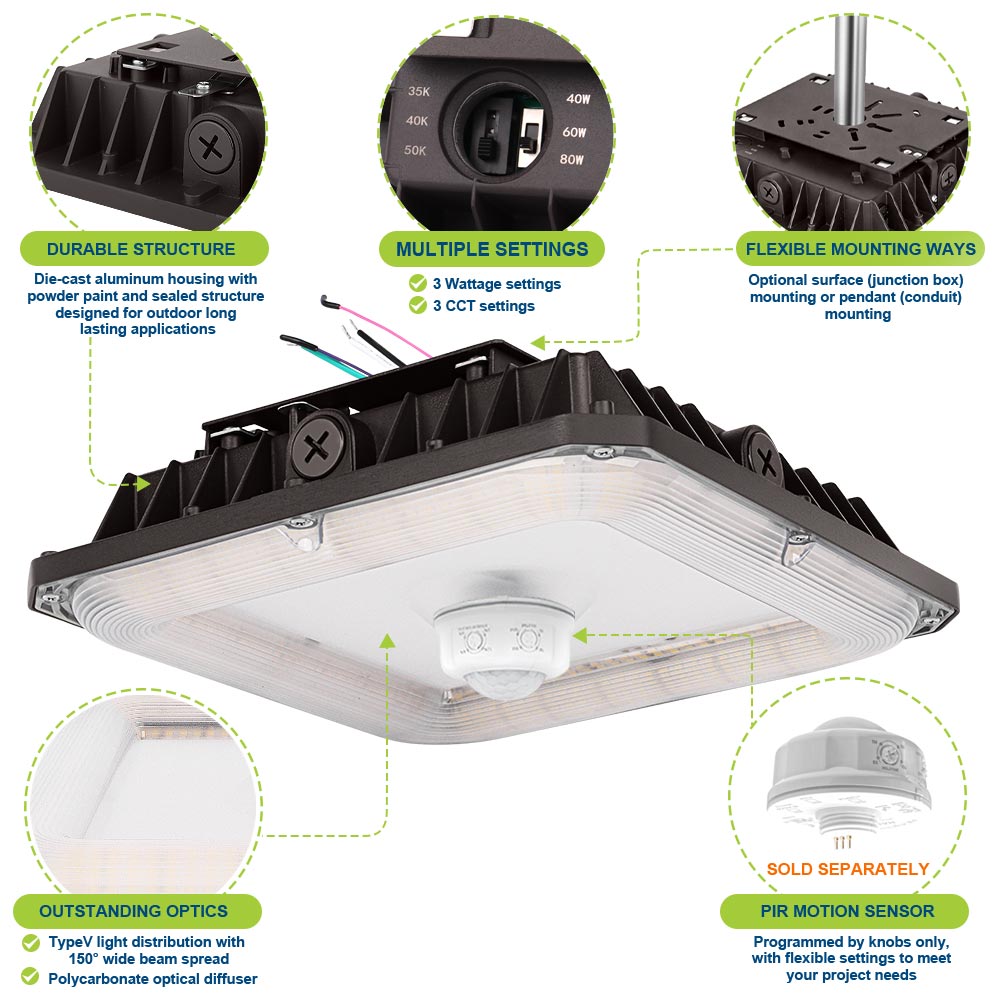

Key Features

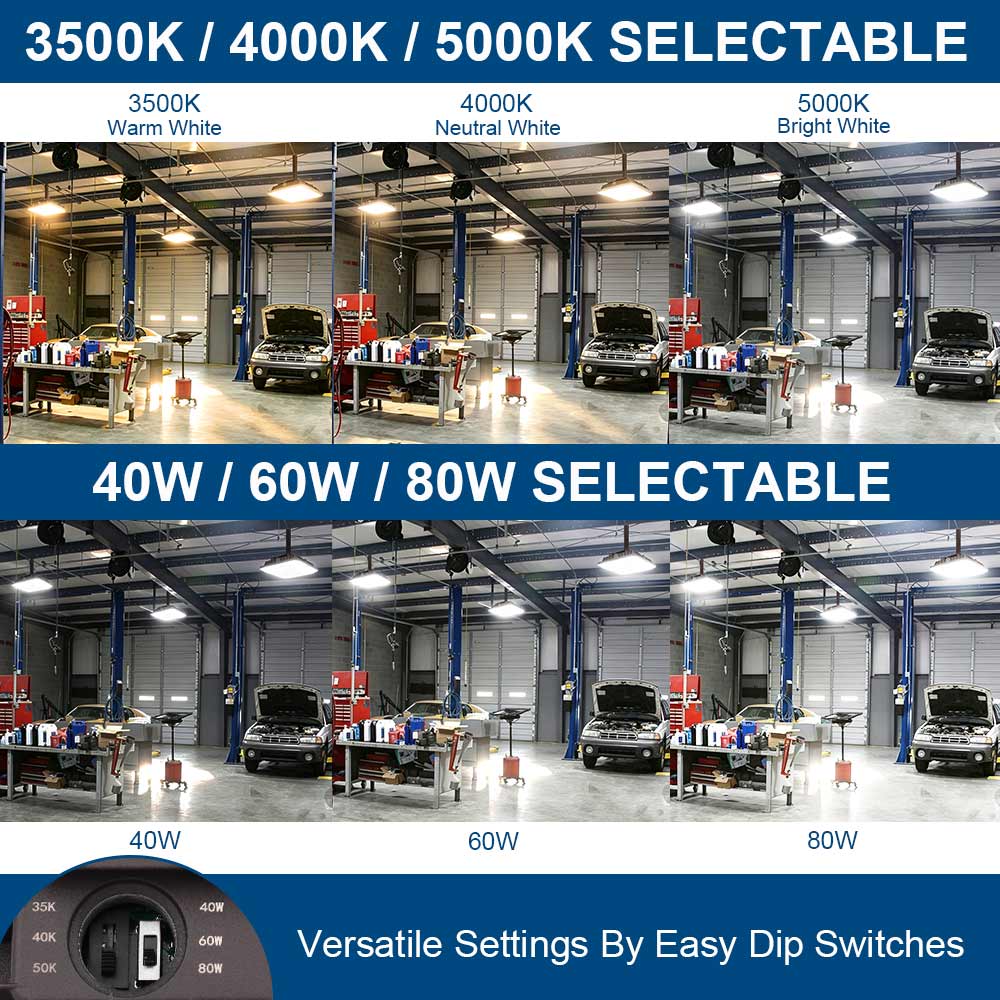

🔹 Selectable Wattage Options
Choose from 80W / 60W / 40W configurations to match light output and energy requirements to the application.

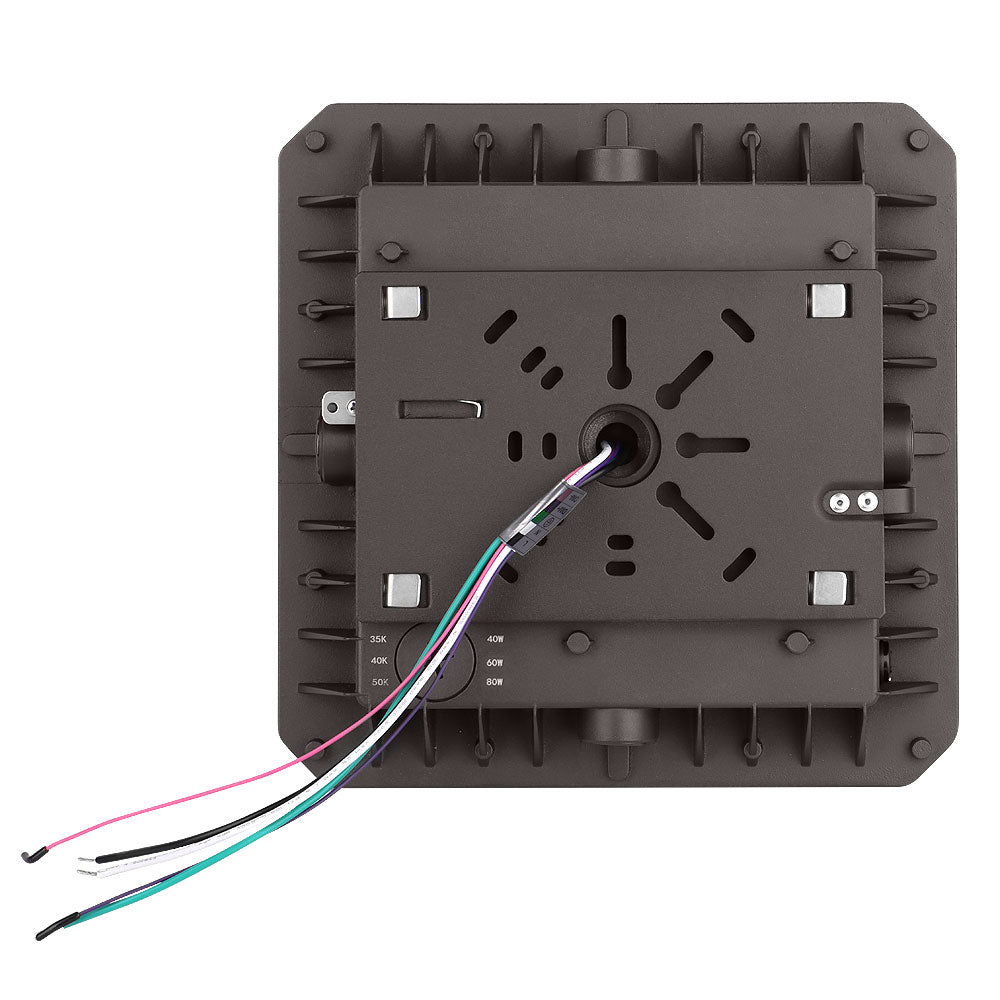

🔹 Selectable Color Temperature
Field-selectable 3500K, 4000K, and 5000K color temperatures provide flexibility for different lighting environments.
🔹 Durable Outdoor Construction
Features a die-cast aluminum housing with a harsh-environment-grade powder-coated finish for enhanced corrosion resistance.

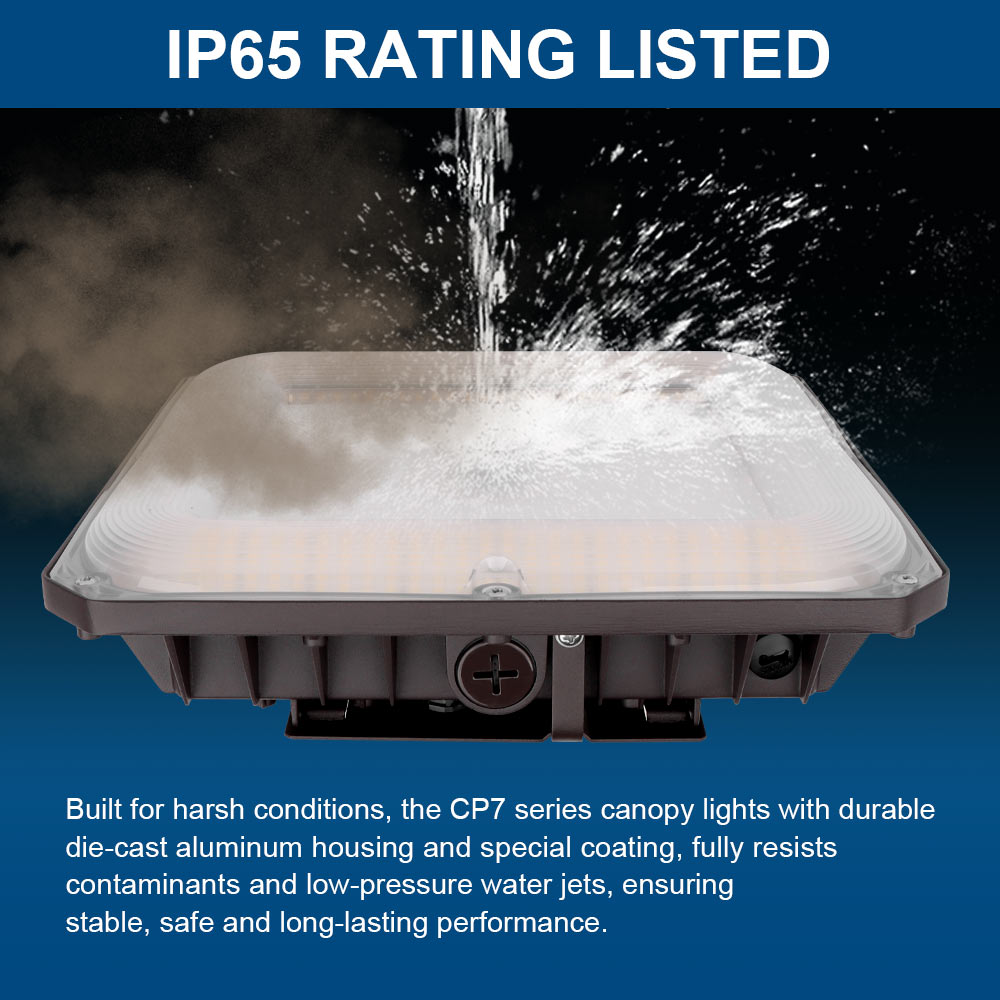

🔹 IP65-Rated Protection
The sealed housing helps protect internal components against moisture and environmental contaminants.
🔹 Flexible Mounting Options

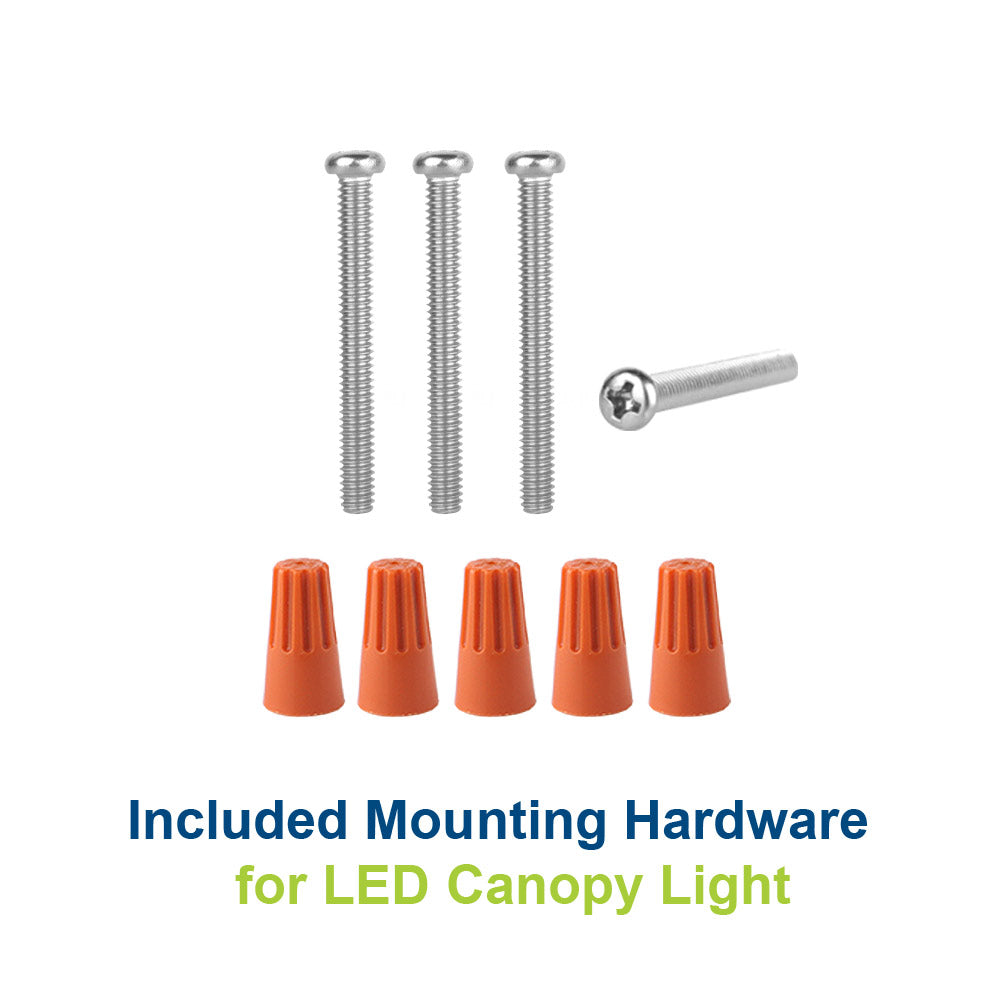

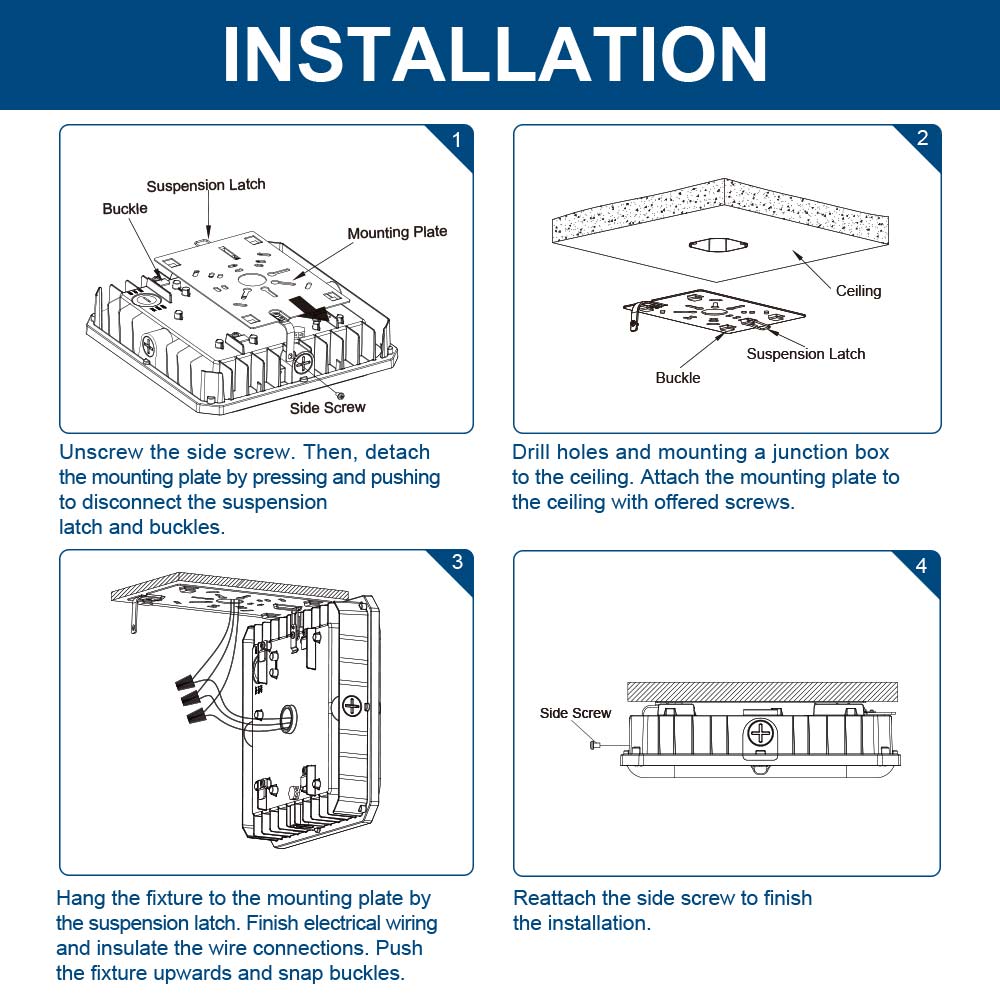

Includes a quick mount plate for surface or ceiling mounting and supports pendant mounting via a 3/4-inch NPT conduit.

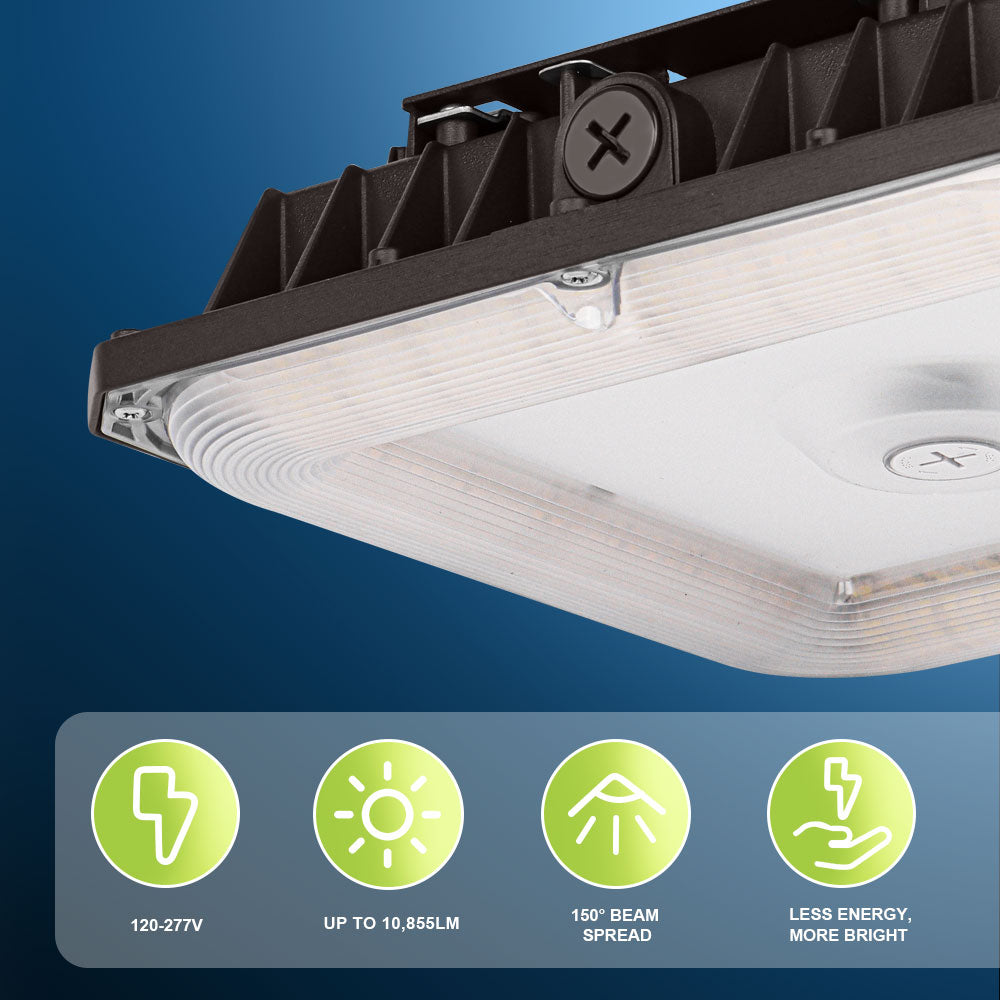

🔹 Wide 150° Beam Distribution
A wide beam spread provides broad, even illumination for ceiling-mounted applications.

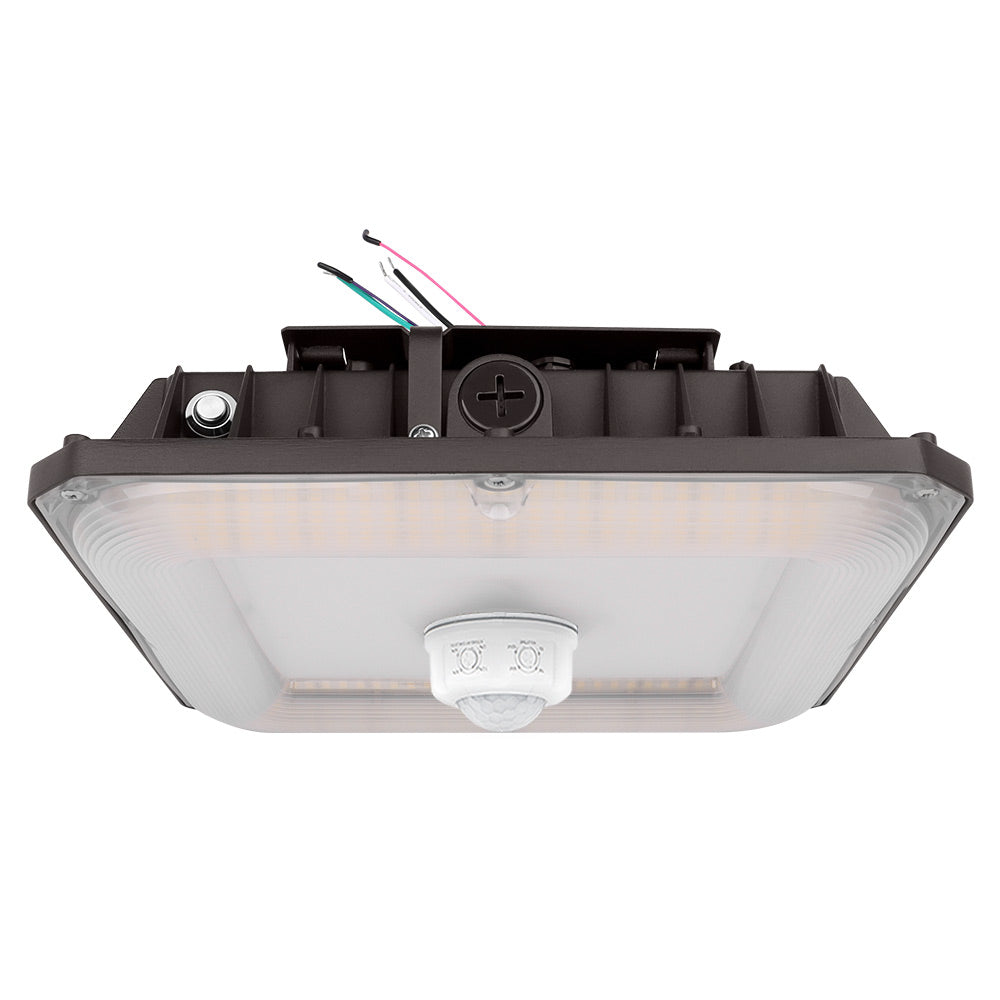

🔹 Optional PIR Motion Sensor
Available with an optional field-installable PIR Plug-N-Play motion sensor with Rotating Switch has built-in daylight sensing capability.

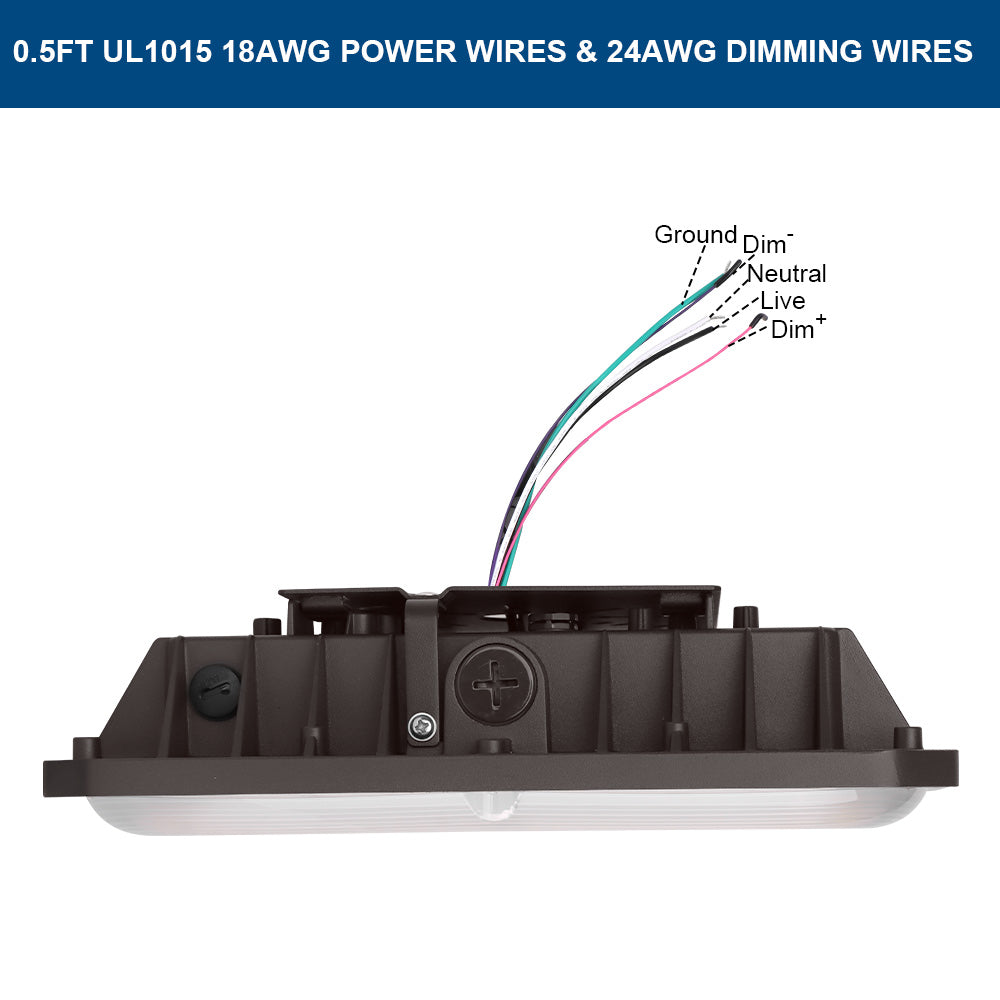

🔹 Dimmable LED Driver
Features 0–10V dimming compatibility for greater control over light output.
🔹 High-Efficiency LED Performance
Delivers up to 154 lm/W of efficacy, helping reduce energy consumption while providing powerful illumination.
🔹 Long-Lasting LED Technology
Premium LED chips and a 50,000+ hour L70 lifespan help reduce maintenance requirements and replacement costs.

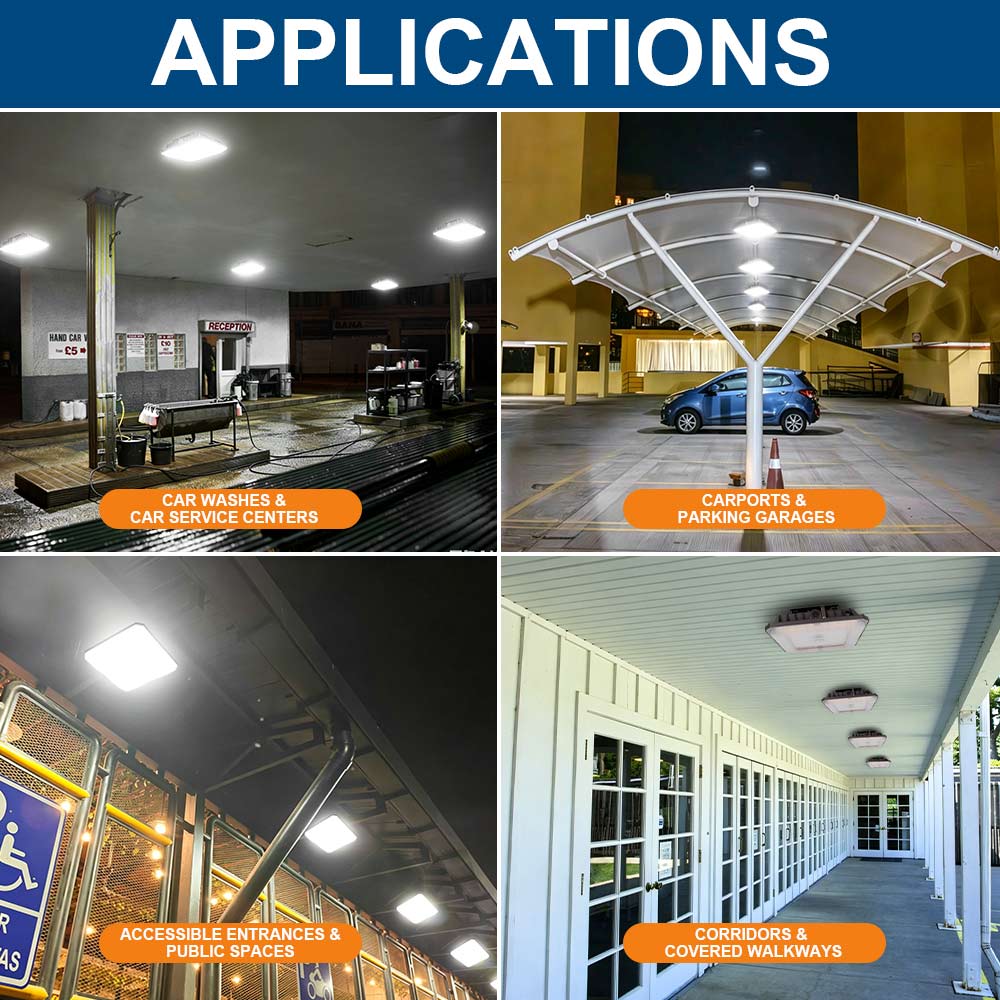

Applications
| • Covered walkways | • Warehouses |
| • Parking garages | • Retail storefront canopies |
| • Parking Garage | • Convenience stores |
| • Gas stations | • Loading docks |
| • Corridors | • Doorway and Pathway |
| • Hotel and hospitality entrances | • Drive-thru lanes |
| • Transit stations and bus shelters | • School and university campuses |
Specifications
| Brand | Konlite | MPN | RKCP7080MCLD |
| Warranty | Limited 5 Years | UPC | 605547833748 |
| Input Voltage | 120-277V | Dimmable | 0-10V |
| Input Wattage | 80/60/40W Selectable | Equal to | 250W MH |
| Delivered Lumens | Up to 10,855 LM | CRI | >70 |
| Efficacy | Up to 154 LM/W | Available CCT | 3500/4000/5000K |
| Rated Life | >50,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP65 |
| Operating Temp | -40°F to 113°F | Controls | PIR Motion Sensor |
| Certifications | UL, DLC Premium | Weight | 4.52 lbs |
Motion Sensor Specification
| Brand | Haisen | MPN | HD09VR-PH |
| Control | On/off / 1-10V Dimming | Setting tool | Rotating Switch or Remote Control (HD05R). |
| Detection area | 25%/50%/75%/100% | Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Stand-by period | 0s/10s/30s/1m/5m/10m/30m/60m/+∞ | Stand-by dimming level | 10%/20%/30%/50% |
| Motion detection | 0.5~1.5m/s | Daylight threshold | Disable / 8 settings from 2Lux to 400Lux |
| Mounting height | Max. 39ft | Detection range | Max. 45ft |
| Operating Voltage | 10-15V DC | IP rating | IP65 |
| Current | <15mA | Warranty | 3 Years |
*Stand-By Period need to be set to 0s while using with dimmer switch.
*Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
