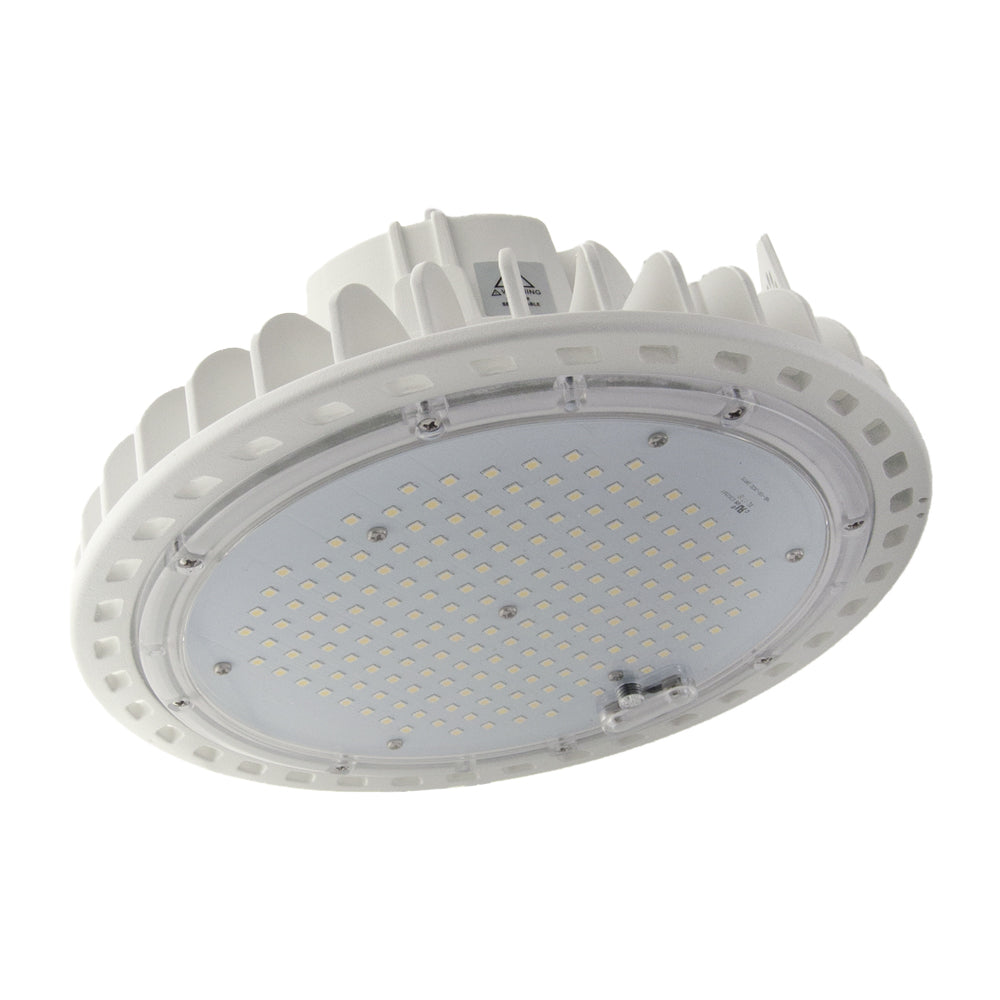

Konlite HB01 series White UFO LED High Bay Light

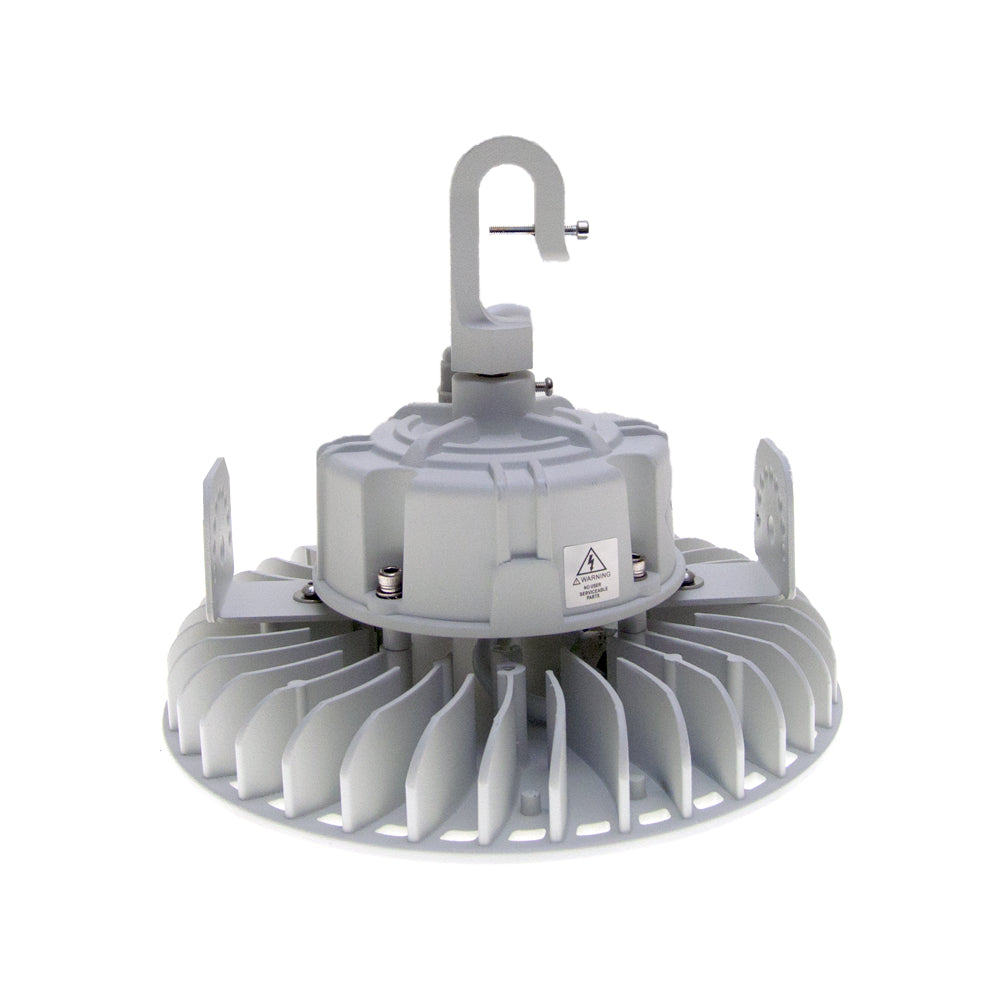

Konlite HB01 series White UFO LED High Bay Light side view

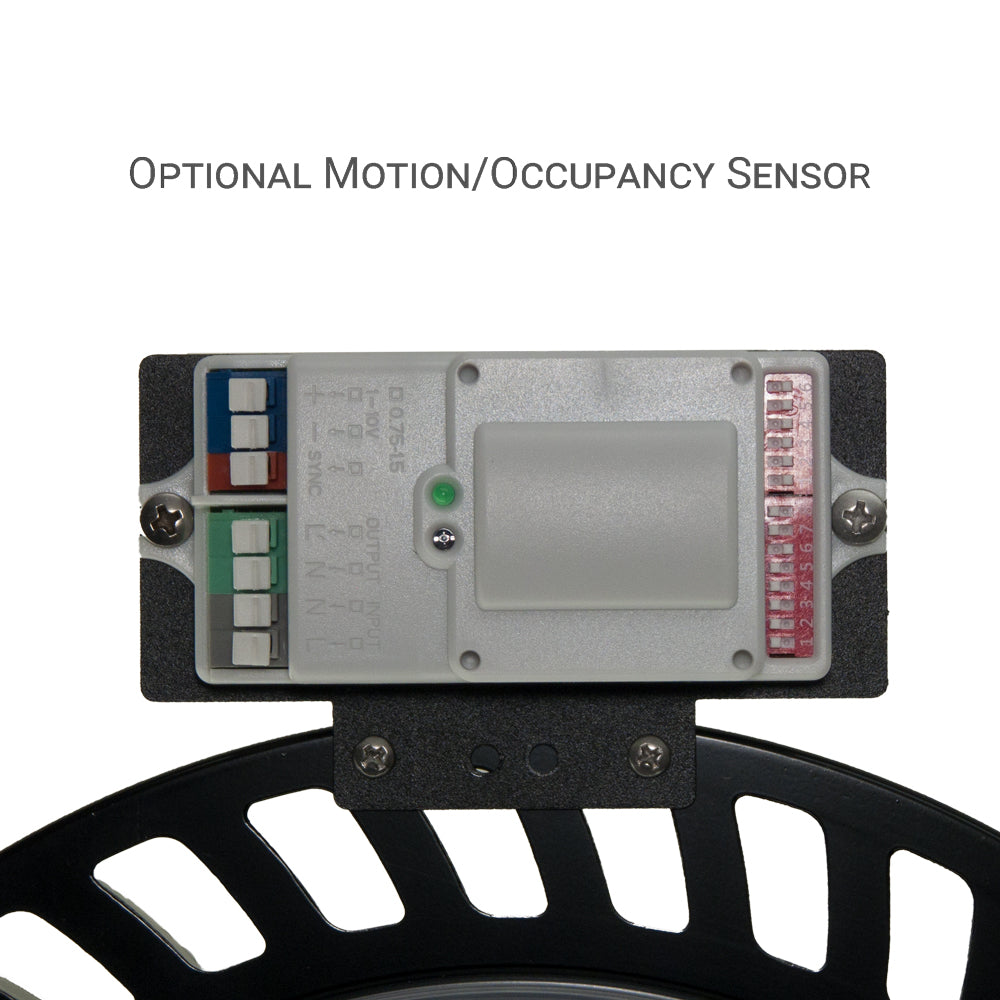

Konlite HB01 series White UFO LED High Bay Light with motion sensor

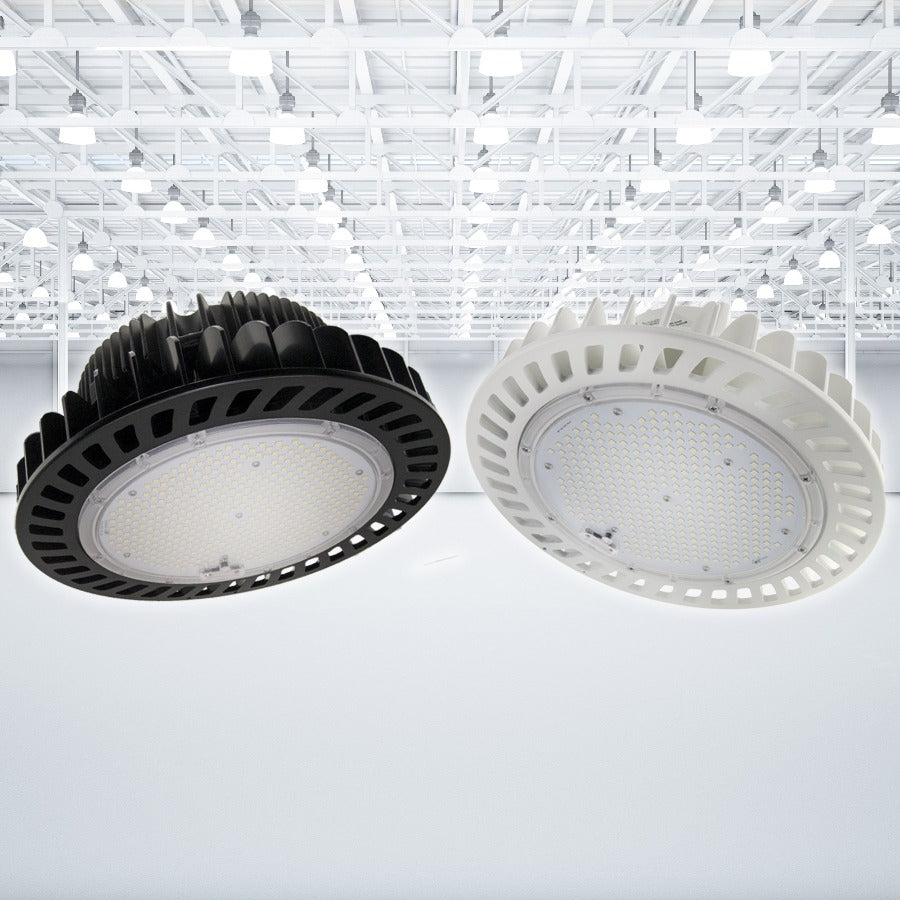

Black and white KONLITE HIGHBAY in warehouse

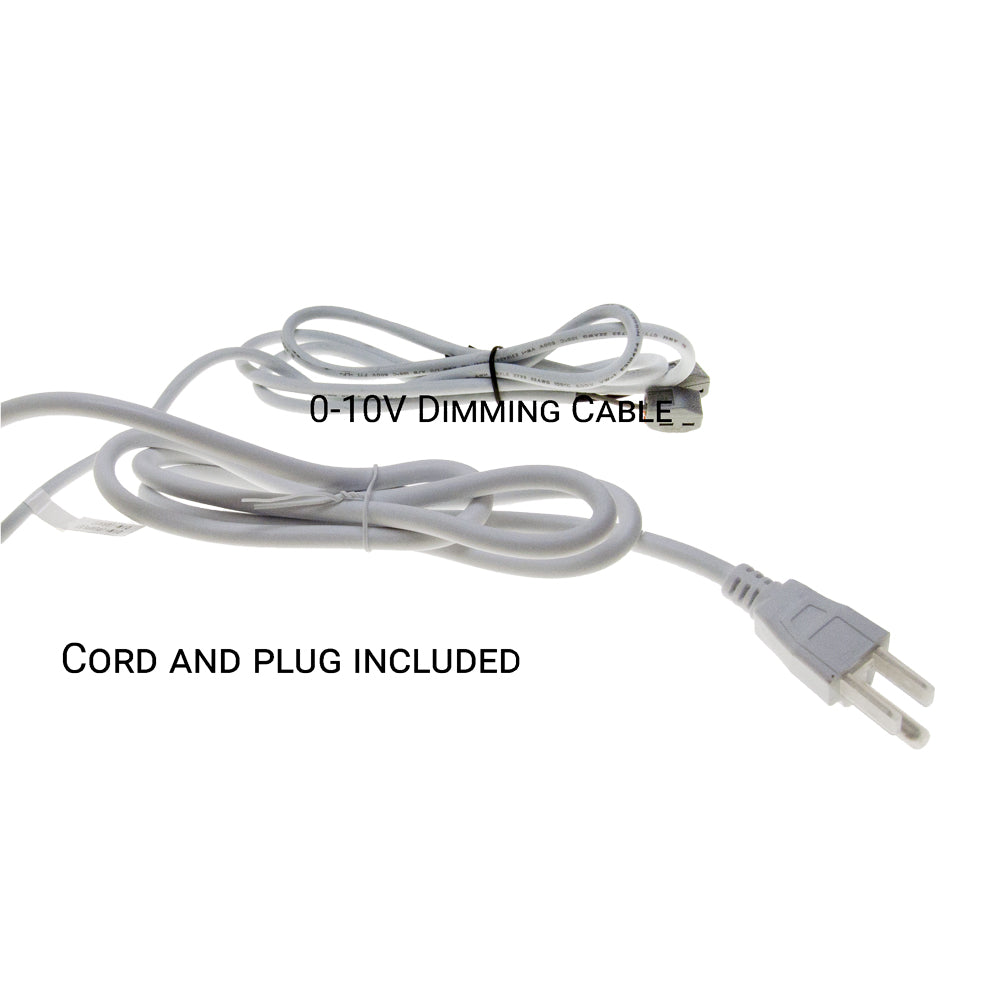

Cord and plug of the konlite highbay light

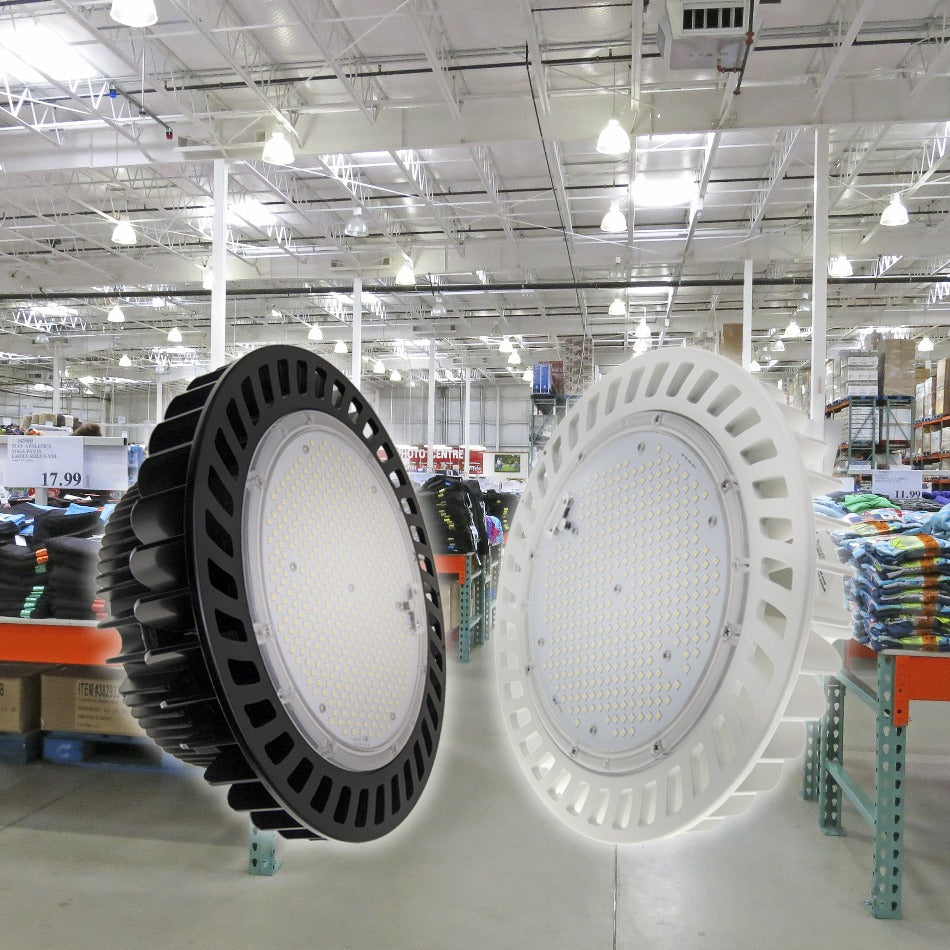

Black and white KONLITE HIGHBAY in warehouse

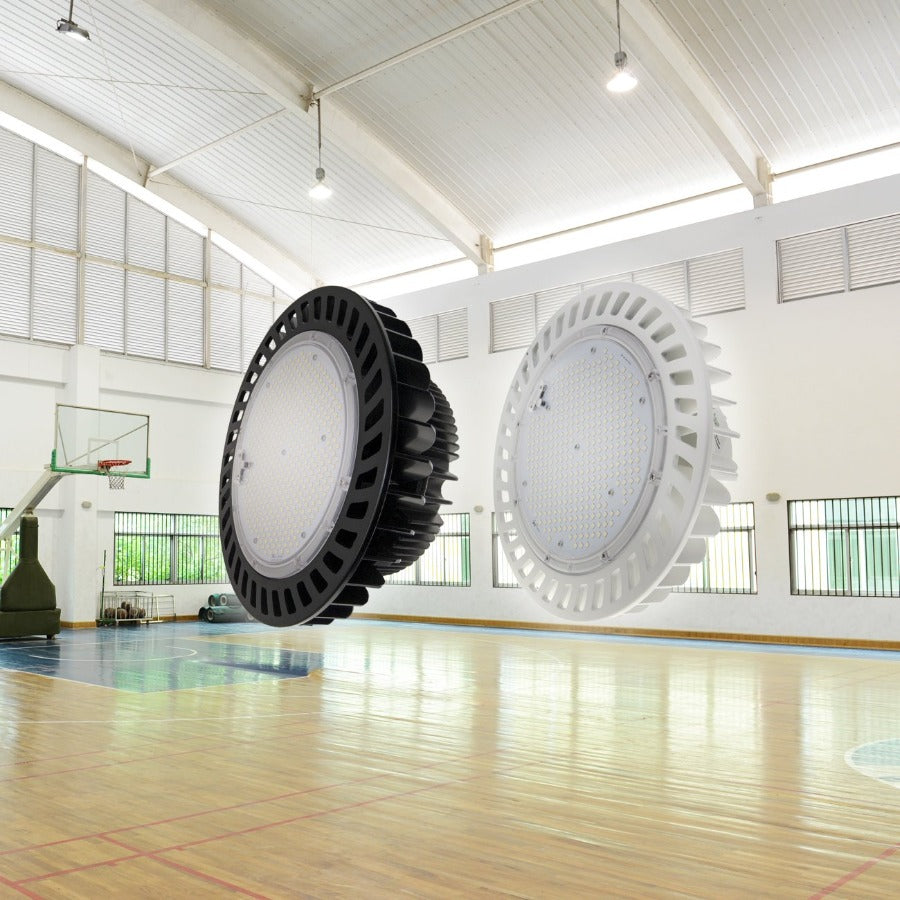

Black and white KONLITE HIGHBAY in a Gymnasium

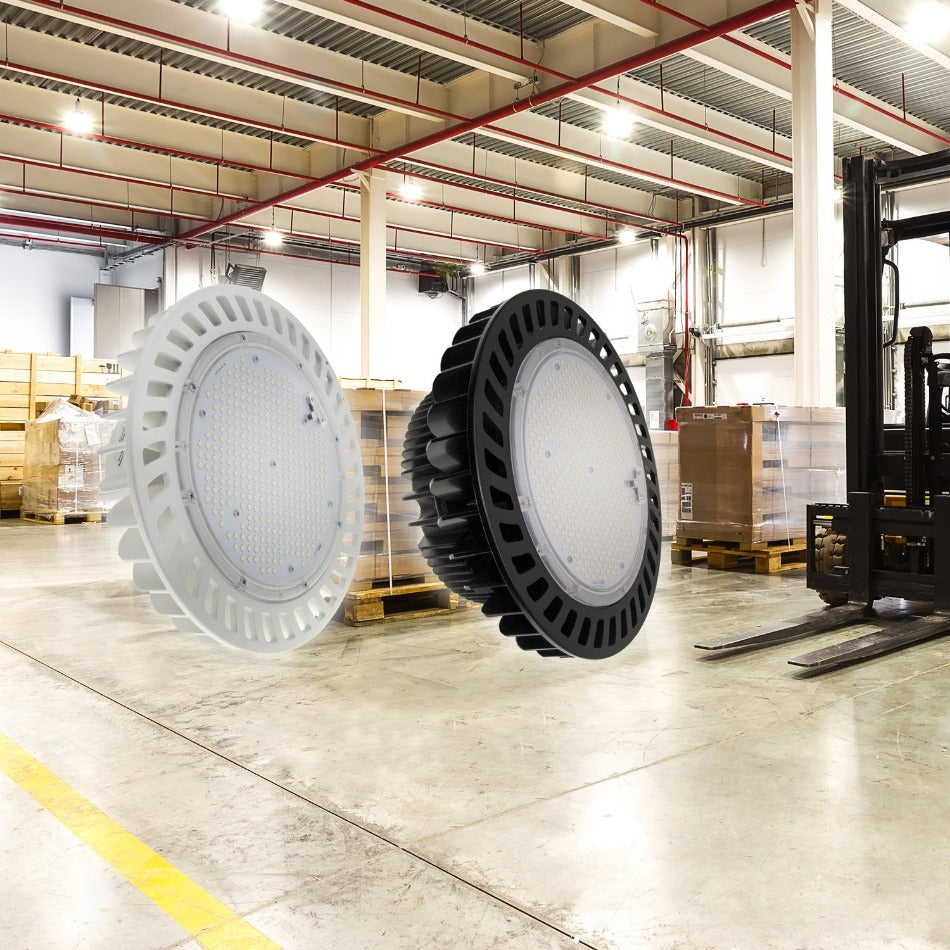

Black and white KONLITE HIGHBAY in a warehouse
Roll over image to zoom in
Konlite HB01 series White UFO LED High Bay Light
Konlite HB01 series White UFO LED High Bay Light side view
Konlite HB01 series White UFO LED High Bay Light with motion sensor
Black and white KONLITE HIGHBAY in warehouse
Cord and plug of the konlite highbay light
Black and white KONLITE HIGHBAY in warehouse
Black and white KONLITE HIGHBAY in a Gymnasium
Black and white KONLITE HIGHBAY in a warehouse
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

Konlite HB01 series White UFO LED High Bay Light - 100W - 120-277V - 15000 lumens - 5000K - 0-10V Dimmable - 250W Equal

Product Search Code: 10-0901
KonliteSKU: GL-HB01-100W50K-W
Write A Review
Write A Review
  • The die cast aluminum housing is designed to allow air to pass through the spaces around the driver and LED array with ease effectively making the entire body of the fixture a heat sink.
  • Use the included eye hook to suspend this fixture. The included cored and plug can be removed where hardwiring is necessary. Additional leads for 0-10V dimming require no configuration if dimming is not used.
  • The 0-10V dimming compatibility allows for easy addition control devices such as motion and occupancy sensors.
$110.99 $84.99

  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

What's in the box

1 Fixture, 1 Eye Hook, 1 Installation Guide
  • The die cast aluminum housing is designed to allow air to pass through the spaces around the driver and LED array with ease effectively making the entire body of the fixture a heat sink.
  • Use the included eye hook to suspend this fixture. The included cored and plug can be removed where hardwiring is necessary. Additional leads for 0-10V dimming require no configuration if dimming is not used.
  • The 0-10V dimming compatibility allows for easy addition control devices such as motion and occupancy sensors.

What's in the box

1 Fixture, 1 Eye Hook, 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A

Product Overview

Upgrade your space and reduce operating costs with the HB01 high bay. This compact design is easy to install, meets any budget and a Contractor favorite. Excellent efficacy, maintenance free and 120° beam provides broad even illumination. IP65 rated and sealed for dust and moisture intrusion, 0-10V dimming. A smart DLC certified value choice, that will save big compared to HID.

Color Temperature5000K color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumFCC certification

Specifications

WarrantyLimited 5 YearsMPNGL-HB01-100W50K-W
Input Voltage120-277VEqual to250W
Input Wattage100WDimmable0-10V
Lumens15,000CRI>71.5
Efficacy150 LM/WAvailable CCT5000K
Rated Life>50,000 hrsTHD<7.75%
Power Factor>0.96IP RatingIP65
Operating Temperature-40° to 122° FDimensions9.4" x 6.8"
CertificationsUL, Damp Locations, DLC PremiumWeight6 lbs

Accessories

Konlite Clear Polycarbonate Diffuser
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.
Konlite Clear Polycarbonate Diffuser For GL-HB01 Series UFO High Bay Ceiling Light
SKU:HB01-PC-DIFFUSER
$35
Konlite Motion Sensor With Mounting Bracket For GL-HB01 Series UFO LED High Bay
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.
Konlite Motion Sensor With Mounting Bracket For GL-HB01 Series UFO LED High Bay
SKU:MC601V
$42.73
